Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

10-50mm PE Corrugated Pipe Production Line Corrugated Flexible Hose Making Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

38mm PE Corrugated Pipe Production Line

,

PE Corrugated Pipe Production Line 80kg/h

,

38mm Corrugated Flexible Hose Making Machine

Corrugated Flexible Hose Making Machine , Plastic PE PP PVC Corrugated Pipe Production Line

This production line can be used to produce PP,PE,PA,PVC,EVA etc materials single wall corrugated pipe continuously,which can reach max 30m/min.It is adopted with suitable type single screw extruder,water cooling corrugator forming machine,gear driven and working on runway mould blocks,automatic coiler.

The corrugated tube is mainly used in electrical thread-passing,circuit of machine tool,protective pipe of lamps,water pipes in air conditioner,washing machine.



Qingdao Wensi Plastic Technology Co., Ltd. is a factory specializing in the production line of plastic pipes.


The plastic single-wall and double-wall bellows produced by our company are developed on the basis of Italian extrusion technology.
The plastic single-wall corrugated pipe production line adopts the form of push block module, water-cooled and air-cooled cooling, which can stabilize the high-speed production of precise corrugated pipe.
At the same time, the company adopts high-speed and high-efficiency extruder and automatic line arrangement pneumatic winder, which is easy to operate and of good quality. Customer telephone consultation is welcome.



The single wall corrugated pipe is mainly used as flexible electric conduit system in the market.



Here is our system basic informations for single wall corrugated pipe machine.



Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min

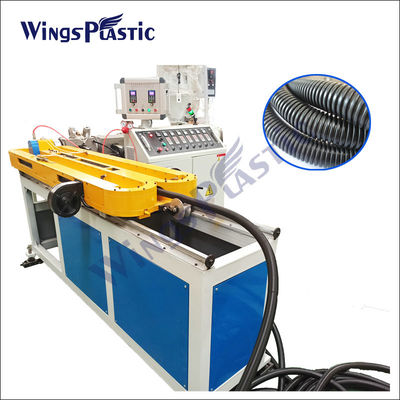

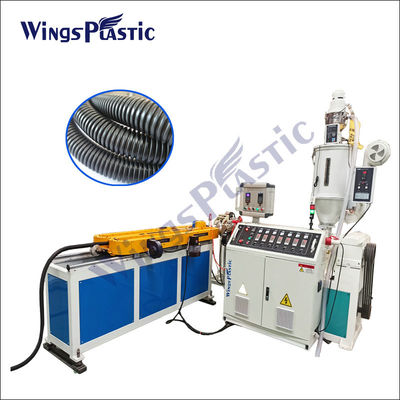

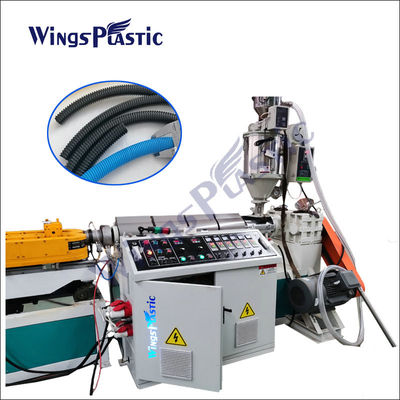

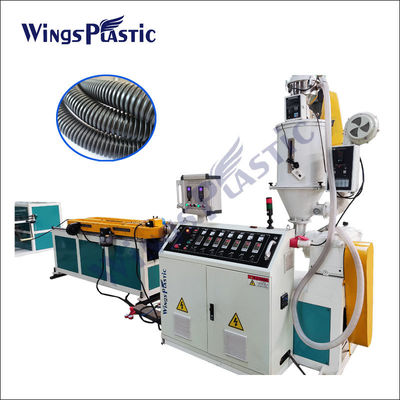

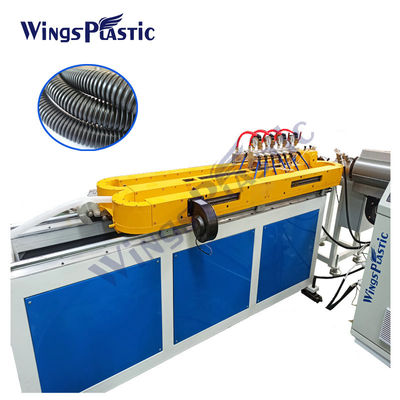

Single wall corrugated hose production line photo: (tested in factory for customers)



10-50mm PE Corrugated Pipe Production Line Corrugated Flexible Hose Making Machine 0
