40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line

40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line
40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line
40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line

Large Image :  40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

40kg/H Corrugated Plastic Pipe Machine

,

Corrugated Plastic Pipe Machine 50hz

,

40kg/H Hdpe Corrugated Pipe Production Line

Corrugated Plastic Pipe Machine, Flexible Corrugated PE PP PVC PA Pipe Production Line

Plastic single-wall corrugated pipe forming machine, high-speed corrugated hose forming equipment.
The machine is mainly used to produce single-wall corrugated pipes by PVC, PE, PP nylon and other raw materials. The corrugated pipes are continuous corrugated pipes formed by moulds. They are mainly used for wire and cable threading pipes, laundry drainage pipes, vacuum cleaner pipes, ventilation pipes, etc.
The pipes forming machine is a closed tunnel transmission structure. The track contacted with the module is cooled by water respectively. The cooling efficiency is mentioned and the service life of the module is delayed. The machine can run steadily for more than 10 meters per minute, and some models can reach the speed of 20 meters per minute.

Qingdao Wings Plastic Technology Co., Ltd. specializes in producing various kinds of pipe extrusion production lines. It can provide plastic corrugated pipe extrusion equipment of different price and design types. The company produces chain driven corrugated pipe extrusion equipment with good quality and low cost, and also produces high-speed corruagted hose extrusion equipment with track transmission.



Welcome to get your request by email: info@wingsplastic.com



Here is our system basic informations for single wall corrugated pipe machine.



Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min

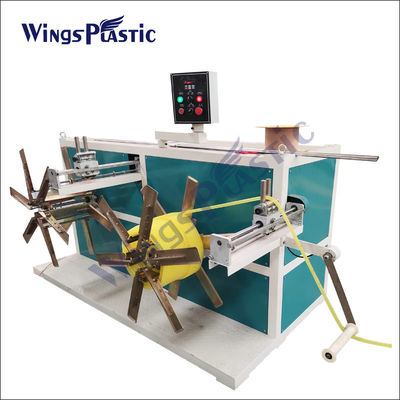

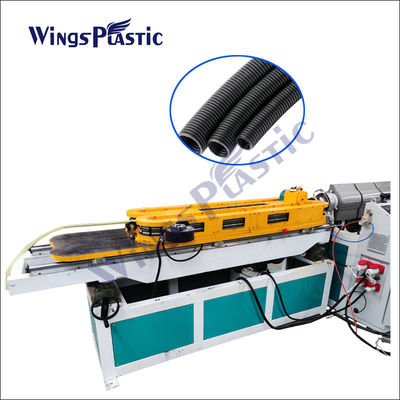

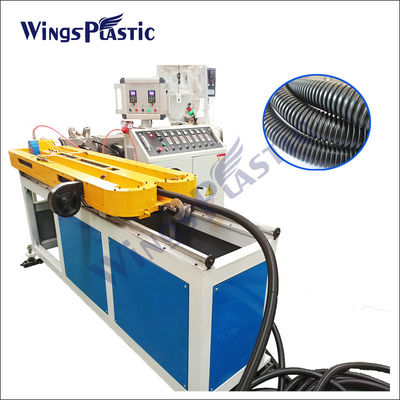

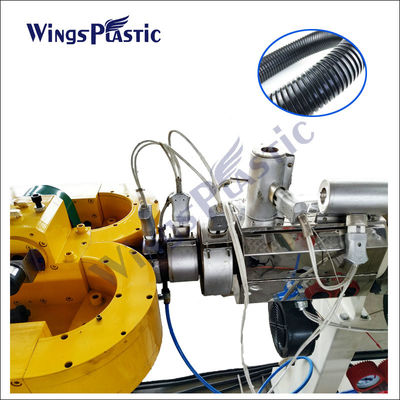

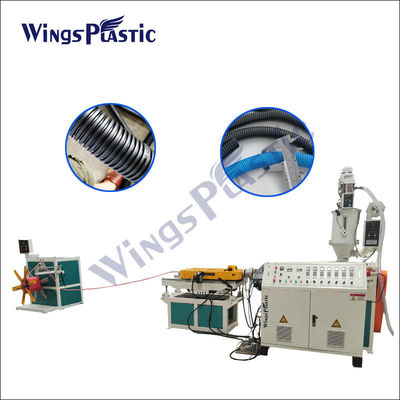

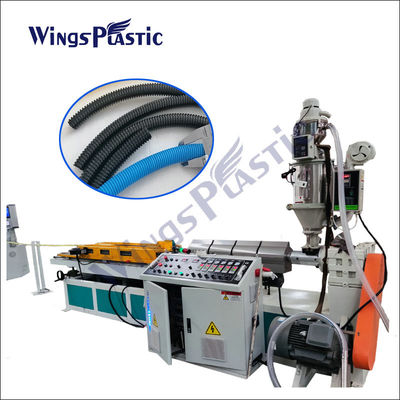

Single wall corrugated hose production line photo: (tested in factory for customers)

40kg/H Corrugated Plastic Pipe Machine Hdpe Corrugated Pipe Production Line 0
