PVC PE Corrugated Pipe Production Line PP Single Wall Corrugated Pipe Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

PE Corrugated Pipe Production Line 50HZ ce

,

PVC PE Corrugated Pipe Production Line

,

25mm Single Wall Corrugated Pipe Machine

Plastic PVC PP PE Single Wall Corrugated Cable Protection Pipe Production Line/Extrusion Machine

Plastic corrugated pipe extrusion production line, single-wall and double-wall corrugated pipe equipment manufacturer.



Machinery introduction:
1. Extruder is high speed high efficiency type, our 45/33 extruder could meet 80kg/h capacity.
2. Die is Modulating forging materials, easy for operation and high precision.
3. We adopt Gear driven and truck block working technology for corrugated forming machine. We have many types of forming machine to meet different capacity request and price.
4. The Coiler adopt automatic ranking system by inverter control.
Main uses of plastic corrugated pipe: single-wall corrugated pipe are mainly used for machine tool machinery and cabinet control cabinet wiring connection, such as instrumentation, control cabinet, equipment manufacturing, engineering installation, train, automobile, subway, machine tool machinery, automation control and other industries. Double-wall corrugated pipe is mainly used for drainage pipe of municipal construction and mine seepage pipe.


The corrugated pipe machine produced by our company mainly adopt German push-block structure. The production speed of plastic single-wall bellows can reach 15-30 m/min and 110 double-wall bellows can reach 4-6 m/min.



Welcome to get your request by email: info@wingsplastic.com



Here is our system basic informations for single wall corrugated pipe machine.



Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min

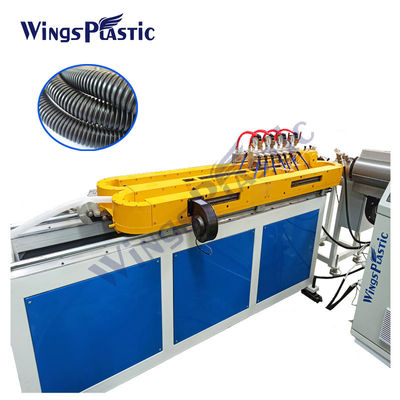

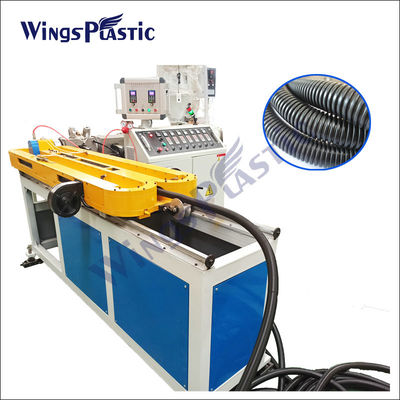

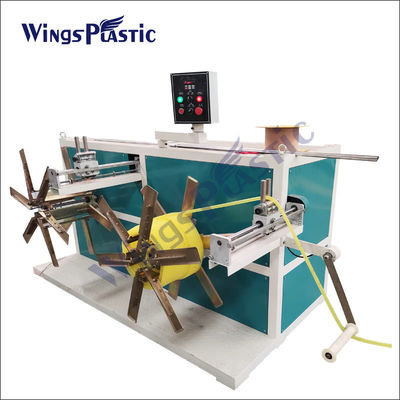

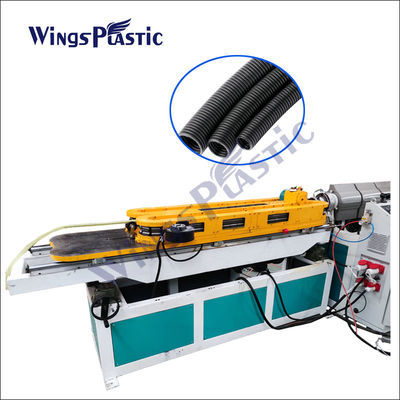

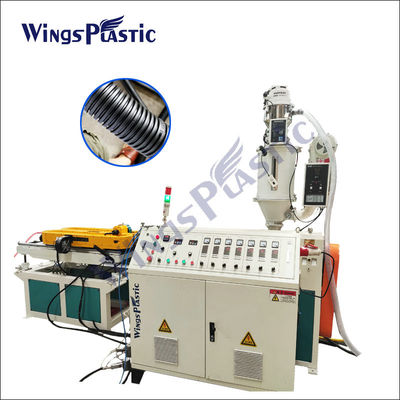

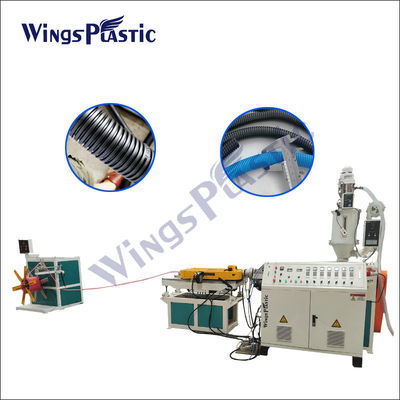

Single wall corrugated pipe production line photo: (tested in factory for customers)

PVC PE Corrugated Pipe Production Line PP Single Wall Corrugated Pipe Machine 0
