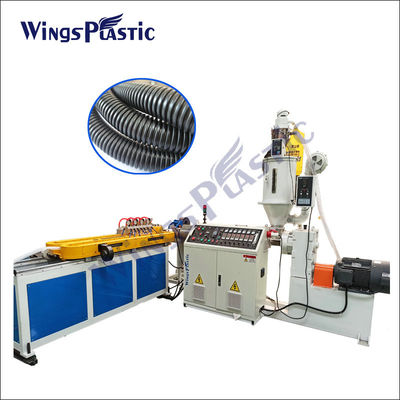

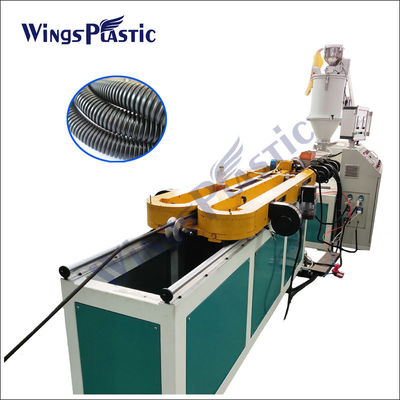

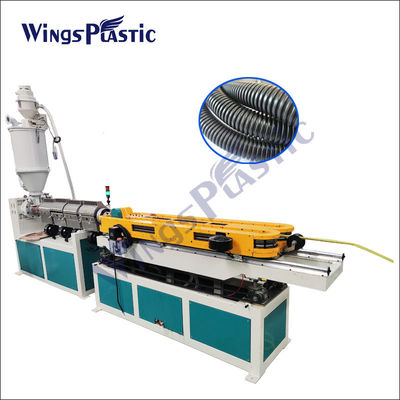

PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line

PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line
PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line
PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line

Large Image :  PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

PE Corrugated Pipe Production Line Single Wall Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

PE Corrugated Pipe Production Line 80kg/h

,

50HZ Single Wall Corrugated Pipe Production Line

,

80kg/h Single Wall Corrugated Pipe Production Line

Plastic PE Single-wall Corrugated Pipe Extrusion Production Line

Qingdao Wings Plastic Technology Co., Ltd. specializes in the production of various types of plastic pipe extrusion equipment. The products include but are not limited to: high-speed plastic single-wall corrugated pipe production line, chain gear moulds corrugated hose production line, plastic double-wall corrugated pipe production line, pre-stressed corrugated pipe production line, etc.
The characteristics of the company's single-wall bellows production line are as follows:

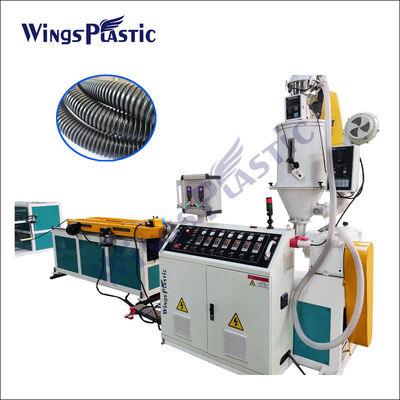

1. Using high-speed and high-efficiency single screw extruder not only saves electricity and efficiency, but also does not increase the pressure of the extruder head, so it is easy to form corrugated pipes.

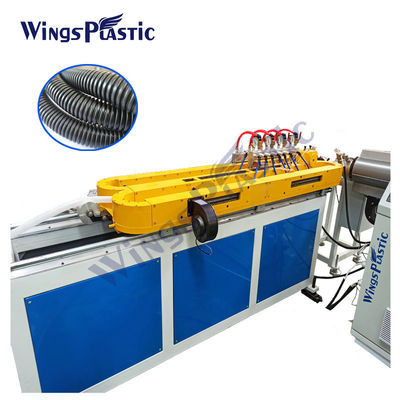

2. High-speed forming machine adopts tunnel structure, water cooling mode, and there is no link between the module and the module. The module has long service life and convenient replacement. The fastest production speed can reach 25 meters per minute.
3. The common speed chain forming machine also uses water cooling mode, but adopts the mode of joint transmission of module chain and gear. This kind of structure is of high quality and low price.

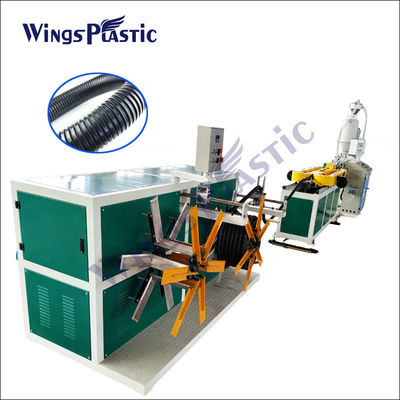

4. The coiler is controlled by frequency conversion motor and potentiometer, and abandons the old torque motor. The structure will not stretch the corrugated pipes.



Welcome to get your request by email: info@wingsplastic.com



Here is our system basic informations for single wall corrugated pipe machine.



Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min
