Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ70/32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

150mm Spiral PE Corrugated Pipe Production Line Plastic Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 80-120kg/h Or Customized Pipe Diameters: 40-150mm Or Customized
Suitable Materials: HDPE LDPE LLDPE Materials
Highlight:

150mm PE Corrugated Pipe Production Line

,

150mm Plastic Corrugated Pipe Production Line

,

Plastic Corrugated Pipe Production Line 120kg/h

150mm Spiral PE Corrugated Pipe Production Line Plastic Corrugated Pipe Production Line

Supply corrugated spiral pipe equipment, supply PE spiral pipe machine, supply plastic spiral pipe makeing machine,

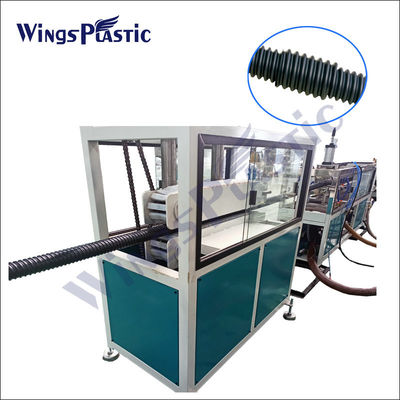

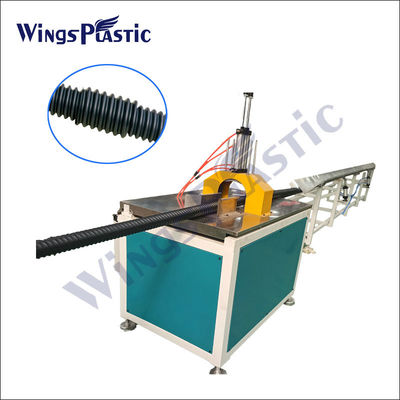

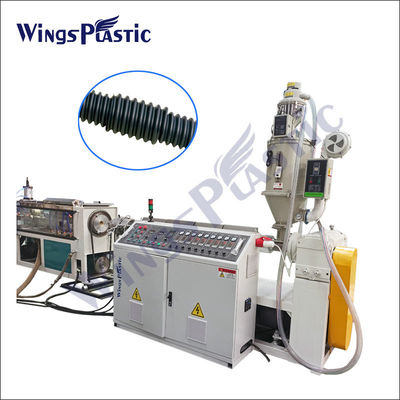

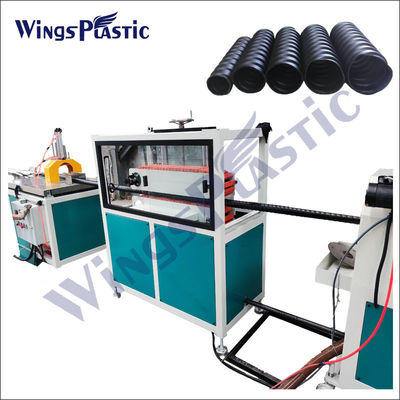

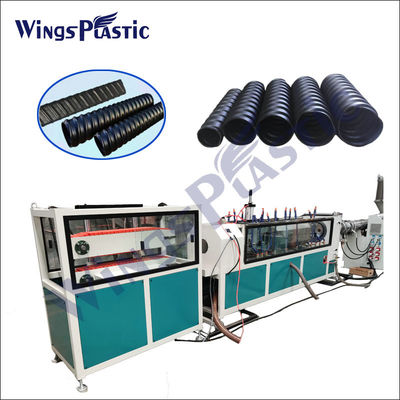

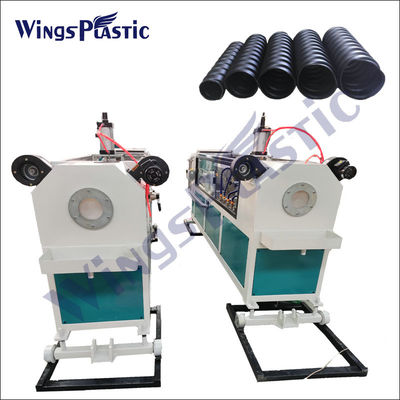

The equipment advantages: round tubes, flat tubes one machine operation, the equipment investment cost is low, the production of corrugated pipe than bamboo bellows strong impact resistance, etc.A full set of equipment by the SJ series single screw extruder to extrusion mold, screw molding - vacuum spray tank - tractor to sawing machine, inversion of platform.



Compared with the same industry:
1. Production speed is fast, is twice the peer class manufacturer.
2. Advanced formula technology, low cost and high quality.
3. The whole machine smooth operation, high reliability, etc.

150mm Spiral PE Corrugated Pipe Production Line Plastic Corrugated Pipe Production Line 0

extruder: SJ65/30,SJ70/30,SJ75/30,SJ80/30,SJ90/30
mold: φ40-φ150(max:φ200)
cooling: water
Haul off speed: 0.5-3m/min
Vacuum power: 4kw
Pump power: 1.5kw
power: 45-58kw
weight: 6500kg
size: 20000×1200×1850mm



150mm Spiral PE Corrugated Pipe Production Line Plastic Corrugated Pipe Production Line 1
