Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ70/32
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Max 150mm PE Corrugated Pipe Production Line PE Spiral Duct Forming Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 80-120kg/h Or Customized Pipe Diameters: 40-150mm Or Customized
Suitable Materials: HDPE LDPE LLDPE Materials
High Light:

150mm PE Corrugated Pipe Production Line

,

PE Corrugated Pipe Production Line LLDPE

,

LLDPE Spiral Duct Forming Machine

HDPE PE Spiral Corrugated Cable Pipe Production Line / Extruder Machine

This machine is mainly used to produce spiral pipe, the pipe is used for cable jacket protection, and the pipe gradually applied to electric power, telecommunications, postal, and highways, ports and other infrastructure.The pipe has the advantage of high strength, high toughness, corrosion resistance, no deformation. Transportation and construction is convenient .You can also bend the pipe into various arc length size of tubing.Because of many advantages, still it is well received by users in various fields.



Characteristic: the machine has configuration of special polyethylene single screw extruder, mixing screw with special separation type ,so it has high speed extrusion, high speed plasticizing, etc.
Standard pipe extrusion die head: the design of flow channel is reasonable, the wall of the tube is smooth both inside and outside. We design head installation form according to user requirements, greatly saves an area of space covers
Optimization design of screw copper sizing equipment, a strong suction vacuum device, is suitable for high speed extrusion of the pipe .
Special design: the cooling system of the production has a scope of 50-200mm, the production speed is as high as 0.8 to 1.5 m/min.
It is longitudinal mobile machine adjustment, the up and down system with three dimensional adjustment.


Qingdao Wings Plastic Technology Co., LTD., specializing in the production of carbon spiral pipe production line, high speed extrusion, good forming quality, welcome to visit Qingdao jiaozhou for comparison.



Max 150mm PE Corrugated Pipe Production Line PE Spiral Duct Forming Machine 0

Machine part Quantity

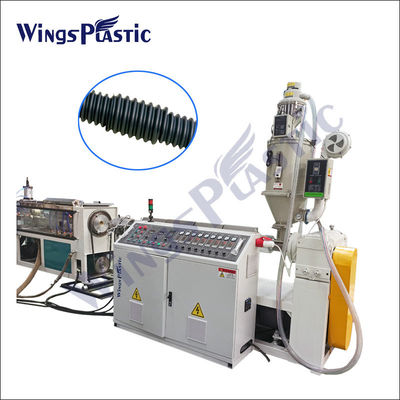

single screw extruder 1set
Pipe moulds 1set

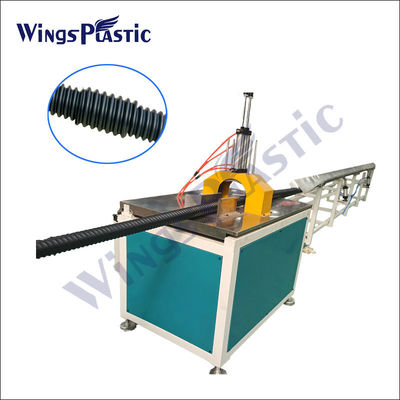

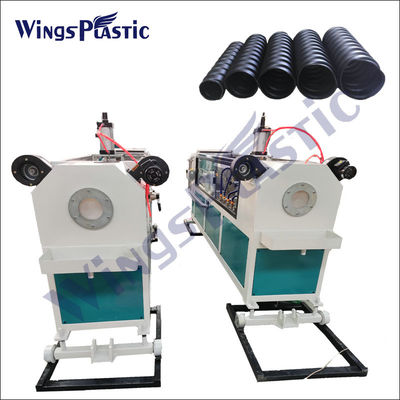

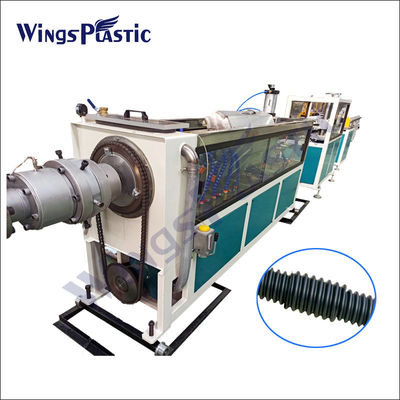

Spiral pipe forming machine 1set

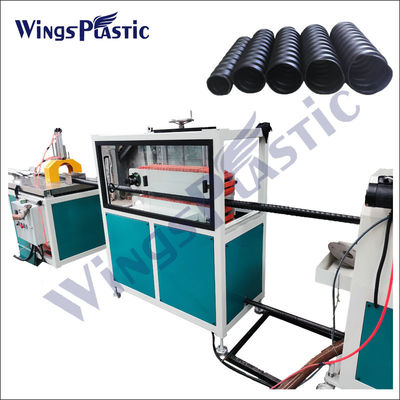

Water cooling tank 1set

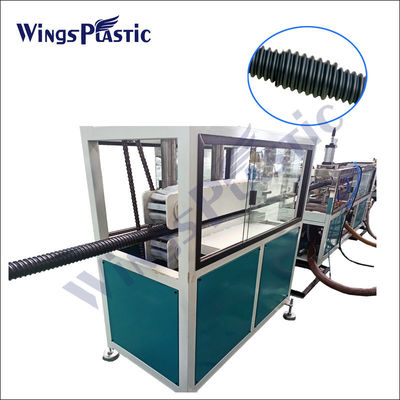

hauling-off unit 1set





Max 150mm PE Corrugated Pipe Production Line PE Spiral Duct Forming Machine 1
