Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 180kg/h Or Customized | Pipe Diameters: | 40-110mm Or Customized |
| Suitable Materials: | EVA LLDPE Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| High Light: | PE Corrugated Pipe Production Line 50hz,Double Wall Corrugated Pipe Production Line 50hz,HDPE Double Wall Corrugated Pipe Production Line |
||
HDPE PE Double Wall Corrugated Pipe Production Line On Sale
We supply the plastic double wall corrugated pipe extrusion lines with the production of diameter 50mm upto 1500mm
Inroduction of Pipe
Compared with metal, ceramic, concrete and other pipes, double wall corrugated pipe has many advantage such as lower weight, lower cost, easy to connect, due to the special structure of double wall corrugated pipe. So it is used widely for sewerage and drainage system, cable protection system, etc.
Features of our dwc pipe production line
High performance single screw extruder or twin screw extruder with special screw ensure good extrusion
Special structure die make the thickness of the interior and exterior wall even, and stable molding. In addition, the thickness of interior and exterior can be adjusted.

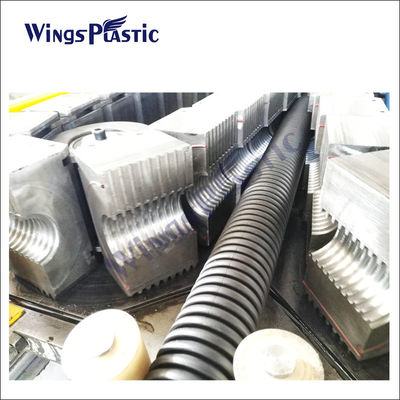

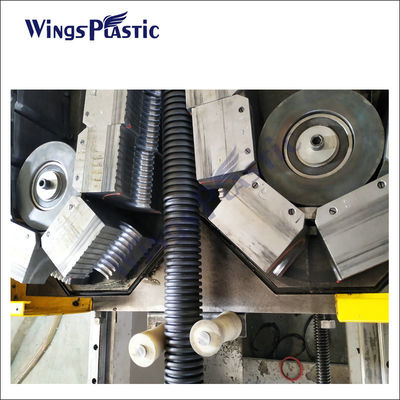

High performance corrugator ensure the pipe of good quality and high efficiency with special and accurate forming module; Cooling air and water system guarantee the production speed fast. Double wall belling inline system, and special aluminum mould bolck with anti-adhereing treatment, cooling air, cooling water and vacuum channel inside of mould block ensure good forming structure of pipe and speed.

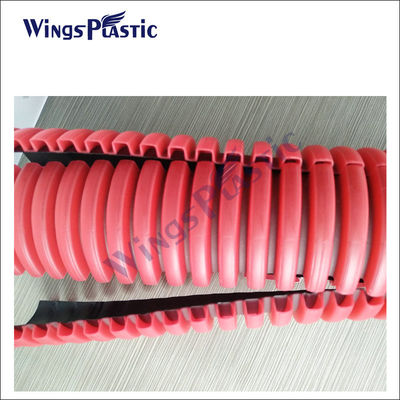

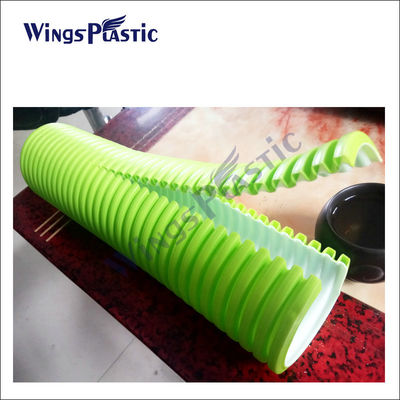

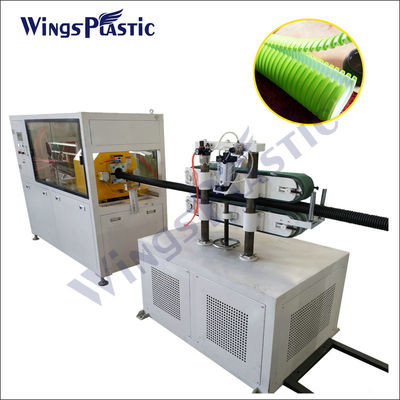

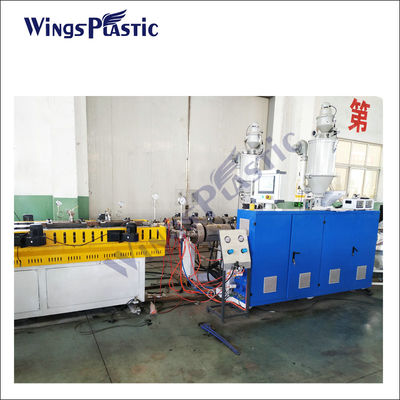

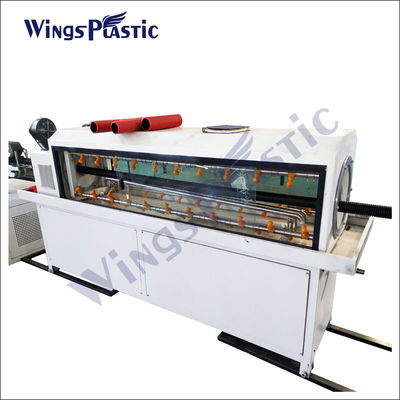

Our HDPE Double Wall Corrugated Pipe Production Line On Sale Pictures:
This is 500mm DWC pipe which is tested for our customer in our factory.
| Name | Model |
Dimension
(L×W×H)mm
|
Total Power(kw) |
Weight
(kg)
|
|
Extruder
(Co-extrusion)
|
SJ75×30
SJ55×30
|
3400×560×3000
2575×460×2600
|
55(max)
22(max)
|
4500
2000
|
|
Extruder
( Single-extrusion)
|
SJ90×30 | 3400×560×3000 | 110(max) | 4500 |
|
Mould Blocks
(ID)
|
PE50 | 2000×Φ300 | 16(max) | 100 |
| PE63 | 150 | |||
| PE75 | 160 | |||
| PE90 | 180 | |||
| PE110 | 300 | |||
| PE125 | 2000×Φ326 | 350 | ||
| PE145 | 400 | |||
| PE160 | 420 | |||
| PE200 | 450 | |||
| Corrugator | SBCJ200 | 3940×1720×2070 | 4(max) | 5000 |
| Cutter | QG200 | 2715×1000×1720 | 2.2 | 800 |
| Unloading Bracket | JGJ200 | 5000×800×1000 | 150 |
