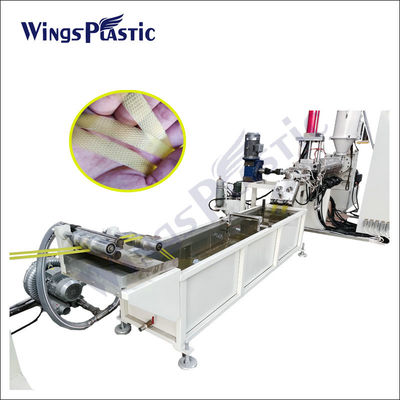

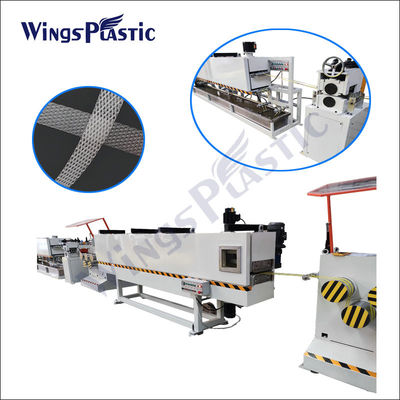

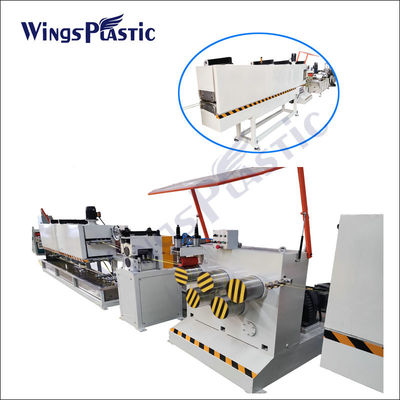

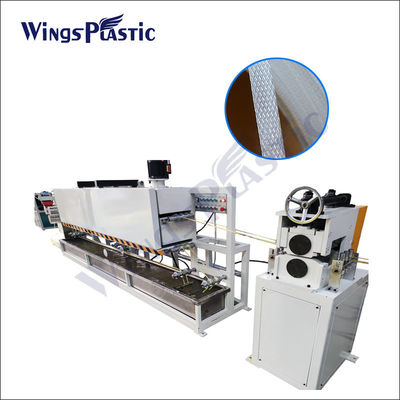

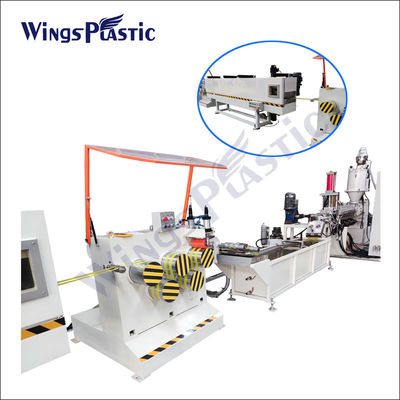

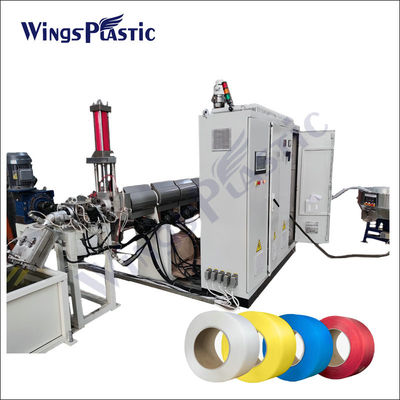

6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw

6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw
6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw
6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw

Large Image :  6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ75/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150kg/h Or Customized Band Width: 6-20mm Or Customized
Suitable Materials: PP Materials Speed: 1-5m/min
Screw: Single Screw HS Code: 84772090
Origin: Qingdao China After-sales Service: 1 Year
High Light:

PP Strap Production Line Single Screw 50hz

,

19mm PP Strap Production Line

,

6mm Automatic Plastic Belt Making Machine

PP Plastic Automatic Strapping Band Making Machine Production Line



 PP packaging belt is a mesh structured packaging material produced by heating, melting, stretching, and cooling polypropylene. The basic parameters that affect the quality of the packaging belt are tensile force, length, curvature, and elongation. With the same tensile force and other parameters, the longer the length, the lower the cost. PP packaging belt introduces four of the world's most advanced packaging belt production lines, using processing techniques to produce high-strength, high-quality, and environmentally friendly 3000 meters of new material packaging belt. The unit price cost per meter is far lower than the unit price of domestic recycling belt and similar imported belt.The packaging belt is a mesh structured packaging material produced by heating, melting, stretching, and cooling polypropylene. The basic parameters that affect the quality of the packaging belt are tensile force, length, curvature, and elongation. With the same tensile force and other parameters, the longer the length, the lower the cost. Jinan Samsung has introduced four of the world's most advanced packaging belt production lines, using processing techniques to produce high-strength, high-quality, and environmentally-friendly 3000 meters of new material packaging belt. The unit price per meter of packaging belt cost is far lower than the unit price of domestic recycling belt and similar imported belt, reducing the cost by 120%.
6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 0
Production Flow:
Materials feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing



Basic Informations of Production Line:

Name Strap Cavities Motor Screw Diameter Screw L:D Output Screw Speed
SJ65/30 1-2 Cavities 30kw 65mm 30:1 100kg/h 94RPM
SJ75/30 2 Cavities 45kw 75mm 30:1 180kg/h 74RPM
SJ90/30 4 Cavities 75kw 90mm 30:1 250kg/h 74RPM



6-20mm PP Strap Production Line Automatic Plastic Belt Making Machine Single Screw 1
