Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 220kg/h Or Customized | Sheet Width: | 500-1200mm |
| Suitable Materials: | PE PP HIPS Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| High Light: | HDPE LDPE Plastic Sheet Extruder Machine,HDPE LDPE PP Sheet Making Machine,PP Sheet Making Machine 2000mm |
||

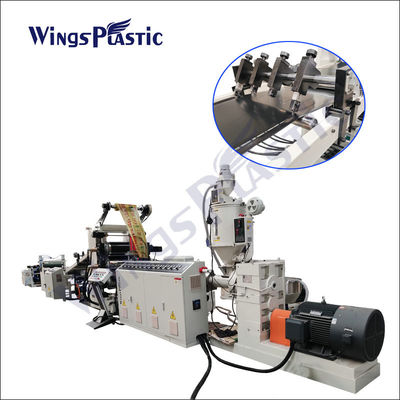

HDPE PP LDPE Board Sheet Making Machine Plastic Sheet Extruder Machine
Machinery Purpose and characteristics
※ The screw is designed with special mixing function and high plasticizing capacity.

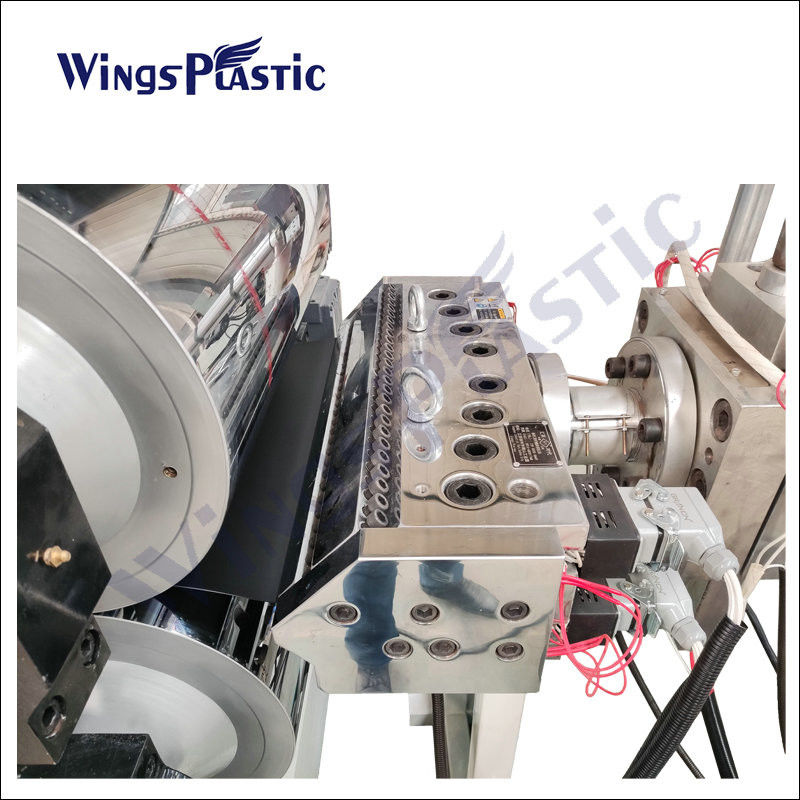

※ The clothes hanger type die head adopts a special double throttling design, making the thickness adjustment of the plate more accurate.
※ Temperature control ± 1 ℃ can accurately control the plasticizing process and the thickness and flatness of the plate.

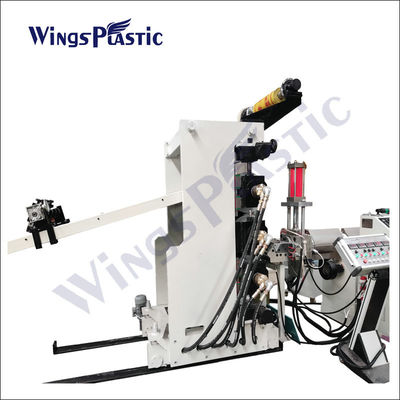

※ The three roller calender adopts a horizontal, vertical, or 45 ° inclined type, which can be lifted and lowered freely.
※ Plate thickness control adopts screw adjustment and press wheel bidirectional adjustment to accurately control plate thickness.
The independently controlled roller temperature control system can accurately control the temperature of the pressure roller to ensure uniform thickness of the sheet metal.
※ Slicer, accurate plate length and quantity.
※ The winding table device adopts a torque motor, which can freely adjust the speed and winding tension.
※ Equipped with an automatic meter meter to set the product length.
Machinery Basic Informations(It is customized according width and thickness):
| Sheet Width | Sheet Thickness | Main Extruder | Main Motor | Capacity |
| 500-800mm | 0.2-2mm | 75/33 | 55kw | 200kg/h |
| 600-1200mm | 0.2-1mm | 90/30 | 75kw | 300kg/h |
| 600-1200mm | 0.5-2mm | 90/33 | 90kw | 360kg/h |
| 1500-2000mm | 0.2-1mm | 120/30 | 110kw | 400kg/h |
| 1500-2000mm | 0.5-2mm | 120/33 | 160kw | 600kg/h |
