Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

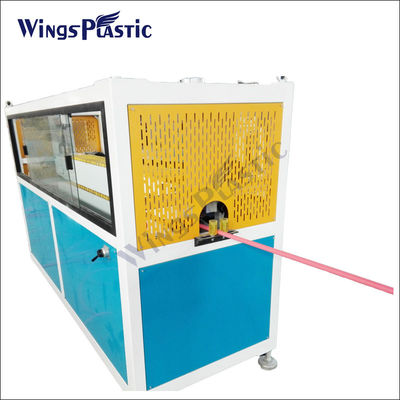

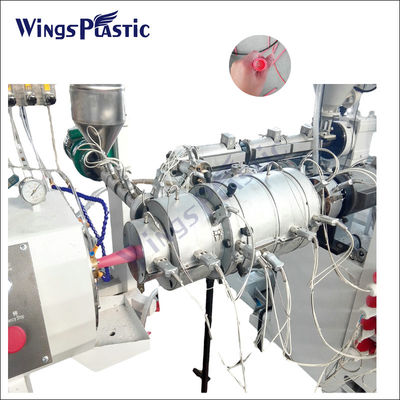

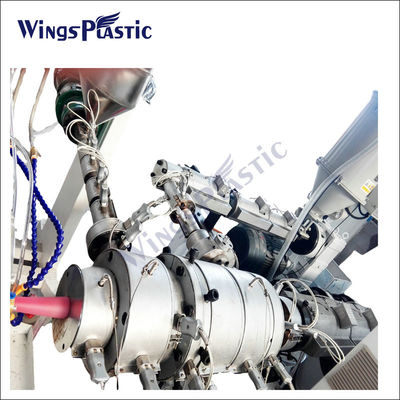

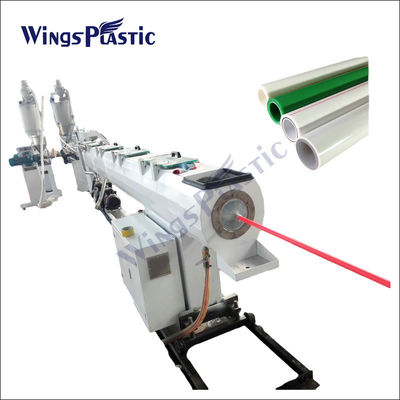

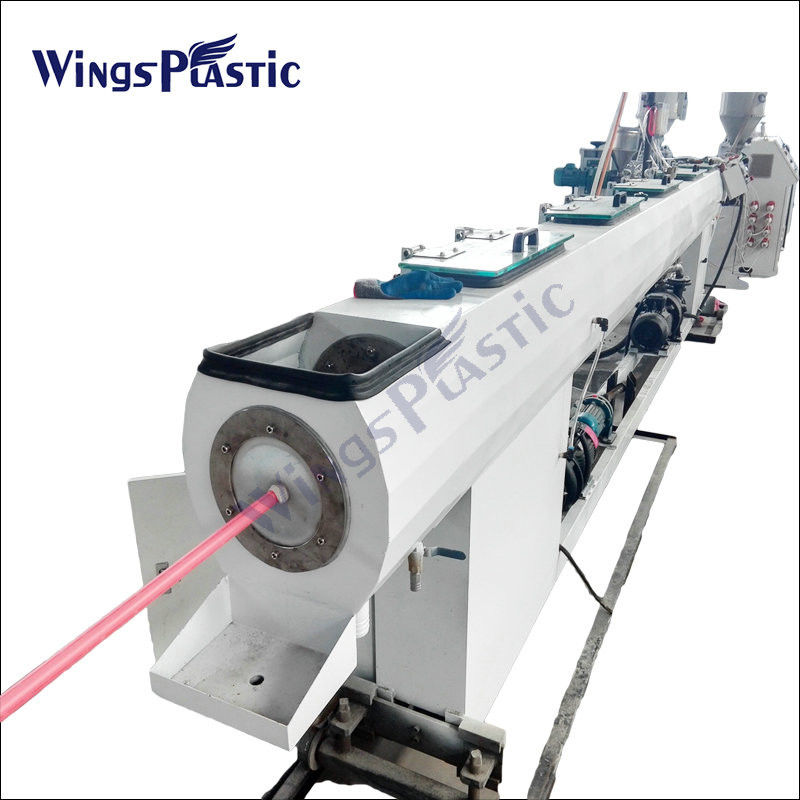

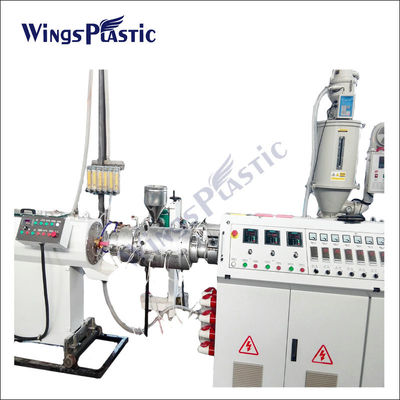

PLC PPR Pipe Production Line HDPE Plastic Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

PLC PPR Pipe Production Line

,

PLC PPR Plastic Pipe Production Line

,

LLDPE Plastic Pipe Production Line

PPR Pipe Production Line Machinery Factory


The PP-R drinking water pipe system is a new type of product commonly used in developed countries today. It adopts homogeneous fusion technology in cold and hot water transportation projects, and its comprehensive technical performance and economic indicators are far superior to other similar products, especially its excellent hygiene performance. From production to disposal, the entire process can meet extremely high hygiene and environmental requirements. The product has heat resistance, pressure resistance, insulation and energy conservation Long service life and economic advantages.
PLC PPR Pipe Production Line HDPE Plastic Pipe Production Line 0
Main advantages:

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.



Machinery Basic Informations:





Extruder Size Main Motor Max Capacity Pipe Diamter
65/33 37kw 150kg/h 16-63mm
65/33-H 45kw 180kg/h 16-63mm
65/33-H 55kw 200kg/h 20-110mm



PLC PPR Pipe Production Line HDPE Plastic Pipe Production Line 1
