Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine

Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine
Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine
Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine

Large Image :  Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine

Description
Extruder_type: Single-screw Condition: New
Output: 220kg/h Sheet Width: 500-1200mm
Line Speed: 1-5m/min Suitable Materials: PE PP HIPS Materials
High Light:

Single Screw Sheet Extruder Machine

,

220kg/h PVC Sheet Making Machine

,

HIPS Sheet Extruder Machine

HDPE LDPE PP HIPS Sheet Production Line Extruder Machine

Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine 0

Mono-layer and multi-layer sheet extrusion system for up to 5 layers

Processing capabilities: PE, PP materials

Intruduce of HDPE LDPE PP Sheet Making Machine

1. Single/Two/Three layers is producible

2. Extruder screw adopts special design with efficient mixing function and high plasticizing capacity.The mater of barrel and screw is 38CrMoA1A, the hardness of nitride is 740HV.

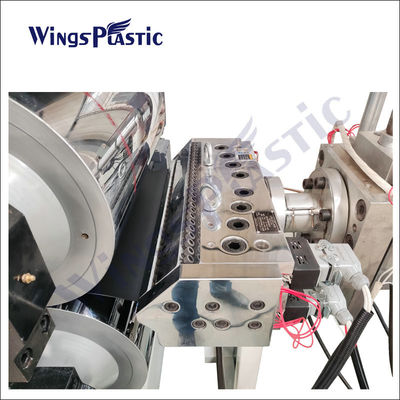

3. Coat-hanger die uses double throttling design to make sheet thickness accurate.

4. Temperature can be precisely controlled within ±1 °C

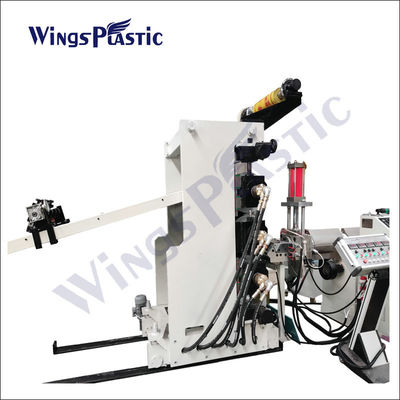

5. Three-roll calender: horizontal, vertical or tilted arrangement, motorized gap adjustment for calender roll for quick product changes

6. Precisely manufactured rollers, hardened and mirror finished surface for suiperier surface properties and excellent thickness control. Independent roller temperature control system is able to make sheet thickness uniformity.

7. Winder is equipped with high quality torque motor,it can adjust rewinding speed and tension.

8. This sheet production line has automatic meter counter to set the length of sheet.

9. Plastic sheets produced from this type of extrusion equipment are sturdy,yet remains somewhat flexible.



Machinery Basic Informations(It is customized according width and thickness):



Sheet Width Sheet Thickness Main Extruder Main Motor Capacity
500-800mm 0.2-2mm 75/33 55kw 200kg/h
600-1200mm 0.2-1mm 90/30 75kw 300kg/h
600-1200mm 0.5-2mm 90/33 90kw 360kg/h
1500-2000mm 0.2-1mm 120/30 110kw 400kg/h
1500-2000mm 0.5-2mm 120/33 160kw 600kg/h


Single Screw Plastic Sheet Extruder Machine HDPE LDPE HIPS PVC Sheet Making Machine 1
