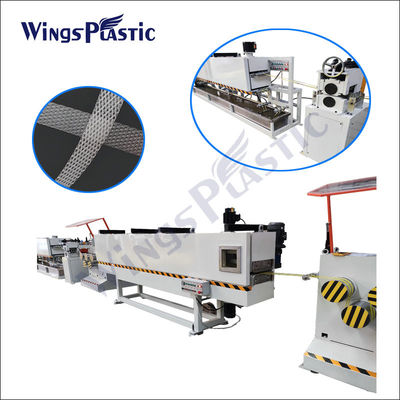

Large Image :  Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ75/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine

Description
Condition: PLC Cooling System: Water Cooling
Extruder: Single Screw Heating System: Electric Heating
Material: PP Max Output: 150kg/h Or Customized
Power Supply: 380V/50Hz Band Width: 6-20mm Or Customzied
Speed: 1-5m/min

Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine

Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine 0

PP packaging strap tape, known as polypropylene, is a lighter type of common plastics. The main material of PP packaging tape is polypropylene wire drawing grade resin. Due to its advantages such as good plasticity, strong breaking force, bending resistance, light specific gravity, and convenient use, it is processed into a binding tape that has been widely used in various fields. PP refers to polypropylene, which has many grades. The packaging belt production (with the best effect) uses polypropylene raw materials of grade T30S. Appearance of PP packaging tape: translucent to opaque, with a transparent film texture. Flammability: Combustible in flames. After leaving the flame, slowly extinguish or continue to burn. During combustion, the upper end of the flame is yellow and the lower end is blue; There is melting and dripping phenomenon. You can smell the smell of paraffin.

PP Strap Production Line PP Packing Belt Extrusion Machine Plastic PP Packing Tape Production Line 0
Production Flow:

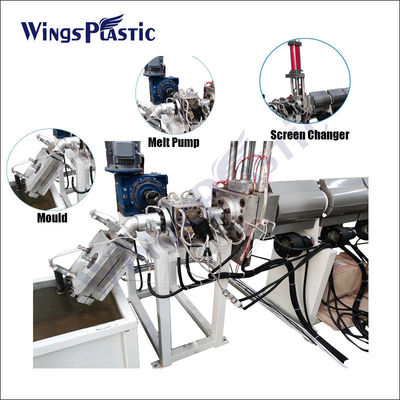

Materials feeding -- Extruder melt -- Filter -- Melt metering pumb -- Extrusion die -- Hot water tank --Five Pulling rollers -- Stretching Oven -- Stretching rollers -- Embossing --Annealing treatment oven and water tank -- Three Pulling Rollers -- Winders -- Packing



Basic Informations of Production Line:

Name Strap Cavities Motor Screw Diameter Screw L:D Output Screw Speed
SJ65/30 1-2 Cavities 30kw 65mm 30:1 100kg/h 94RPM
SJ75/30 2 Cavities 45kw 75mm 30:1 180kg/h 74RPM
SJ90/30 4 Cavities 75kw 90mm 30:1 250kg/h 74RPM

Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine 2Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine 3Single Screw Extruder Machine PP Strapping Band Extrusion Line PP Packing Band Making Machine 4
