Product Details:
|
| Capacity: | 80KG/H Or Customized | Control System: | PLC Control |
|---|---|---|---|
| Cooling Method: | Air Cooling/Water Cooling | Heating Power: | Customized |
| Material: | EVA LLDPE | Motor Power: | Customized |
| Screw Diameter: | 65MM | Screw L/D Ratio: | 30:1 |
| Speed: | 1-5M/MIN | Voltage: | 380v |
| Pipe Diameter: | 30-70mm Or Customized | ||
| High Light: | EVA Spiral Wrapping Pipe Extruder,Automatic Vacuum Cleaner Hose Extruder,EVA Cleaner Hose Making Machine |
||

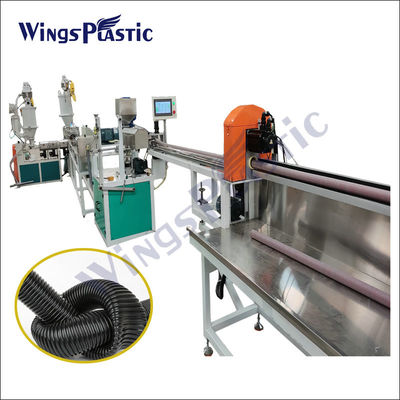

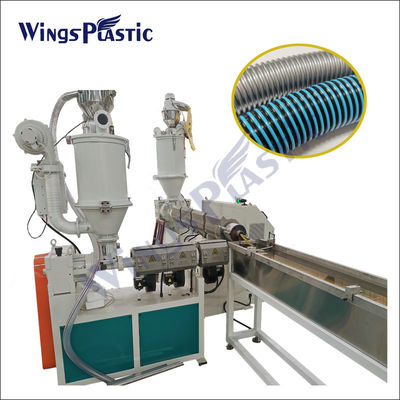

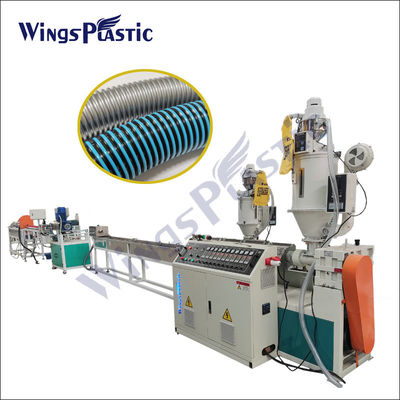

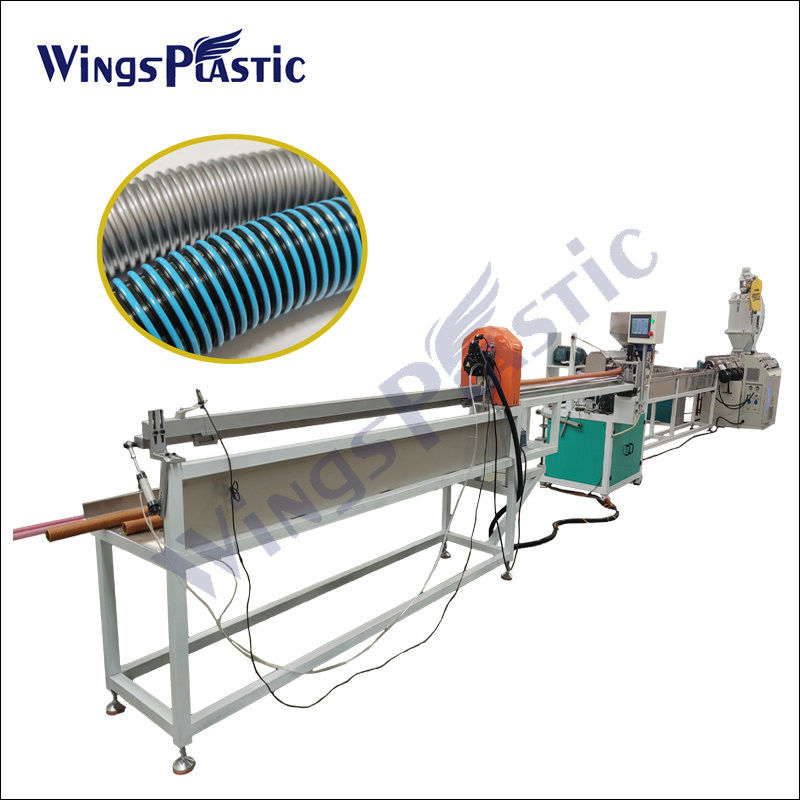

Automatic EVA Flexible Hose Vacuum Cleaner Hose Machine EVA Spiral Wrapping Pipe Vacuum Cleaner Hose Making Machine

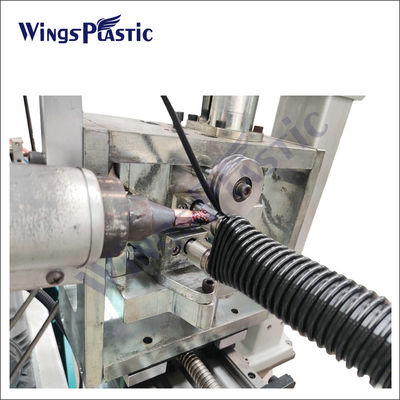

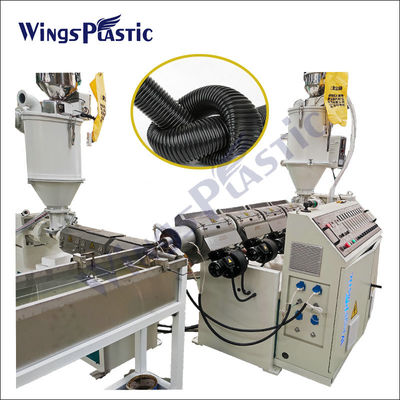

Adopting two single screw extruders for processing eva and pe materials. One extruder makes hose profile , and the other extruder use to extruder adhesive. There is a forming wheel (mould) form the hose profile and the adhesive into the hose, and the hose moving forward synchronously. In the following technical data, only the recommended standard data, the extruder type can be change according to buyers different requirements on extruding.
Our company specialized in researching and designing and making all kinds of plastic soft pipe machine, corrugated pipe machine,spiral pipe machine, pp pe pvc ppr mpp pipe machine. if you have the pipe sample, we will make the machine for you.
The eva vacuum cleaner hose extrusion line equipment list:
| Automatic feeding system | 1set |
| Single screw extruder for hose | 1set |
| Single screw extruder for glue | 1set |
| Die head for eva profile | 1set |
| Eva hose forming system | 1set |
| Water cooling tank | 1set |
| Cutter machine | 1set |
| Stacker | 1set |
| Crusher | 1set |
| Materials mixer | 1set |
| Electric control system | 1set |
