EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio

EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio
EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio

Large Image :  EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio

Description
Capacity: 100kg/h Power: 220V/380V
Screw Diameter: 65mm Cooling Method: Air/Water
Control System: PLC Screw Speed: 73rpm
Electric Device: Delta JACT Siemens Etc Screw L/D Ratio: 30:1
High Light:

EVA Spiral Tube Making Machine

,

Spiral Tube Making Machine 100kg/h

,

LLDPE Spiral Tube Extruder Machine

Product Description:

This hose mainly material is EVA & LLDPE. Our differences for this hose line:

1.High speed. Max speed will be 6 meters per minute, which is same as Italy same machine. But our price is only 1/20 of Italy machine.

2.Easy operation. Machine control by PLC. All the procedure can be achieved by inputting a program. Even for common worker, they can operate this machine easily.

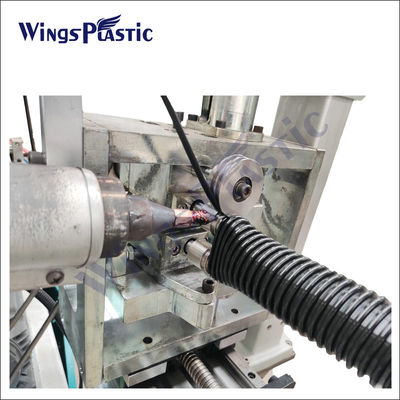

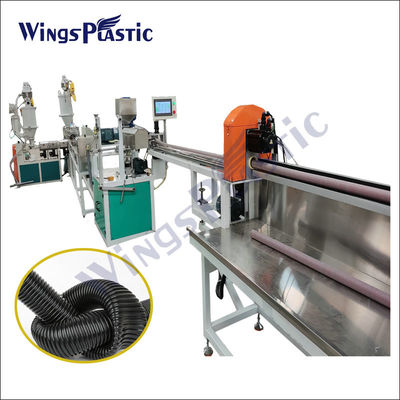

3.Servo motor cutting. Cylinder control cutting needs 0.2 second for a knife working stroke. But servo motor only takes 0.02 second. Servo motor drive can cut the hose section very smoothly and tidily. We covered the cutting units to meet the CE standard. When the line's speed exceeds 4 meters per minute, common drive cutter can not match the hose spiral speed, so servo motor cutting is a must.

4.Stable working. The main shaft utilizes premium quality steel to ensure a stable working efficiency. We choose Schneider PLC & MUlTEQ servo drive motor to make sure the working line is not easy to fail.



Features:

  • Product Name: Plastic Tube Extruder Machine
  • Electric Device: Delta JACT Siemens Etc
  • Screw Speed: 73rpm
  • Capacity: 100kg/h
  • Control System: PLC
  • Cooling Method: Air/Water
  • EVA Flexible Hose Making Machine
  • EVA Spiral Tube Making Machine
  • Eva Spiral Corrugated Flexible Pipe Machine


Technical Parameters:

Property Specification
Control System PLC
Cooling Method Air/Water
Power 220V/380V
Screw L/D Ratio 30:1
Capacity 100kg/h
Electric Device Delta JACT Siemens Etc
Screw Diameter 65mm
Screw Speed 73rpm
Material EVA LLDPE


Applications:

Wings Plastic's SJ65/30 Plastic Tube Extruder Machine is a perfect choice for producing EVA spiral tubes, swimming pool hoses, and other plastic tubes with high capacity and efficiency. It is originated from Qingdao China and powered by220V/380V. Its capacity reaches up to 100kg/h and the screw speed is 73rpm. It is suitable for EVA LLDPE material and the cooling method can be adjusted to air or water. This machine is featured with high precision and stability, and the produced tubes are of high quality with accurate size and uniform thickness.

The Plastic Tube Extruder Machine from Wings Plastic is widely used in various industries such as automotive, electronics, construction, and hardware. For example, in the automotive industry, it is used to produce the protective sheaths for the vehicle cables. In the construction industry, it is used to produce pipeline tubes for water supply and drainage systems. In the hardware industry, it is used to produce screws, nuts, and fasteners. In the electronics industry, it is used to produce the insulation tubes for the cables and wires.

Wings Plastic's SJ65/30 Plastic Tube Extruder Machine is a reliable and cost-effective solution for producing spiral tubes, swimming pool hoses, and other plastic tubes with high precision and stability. It can be used in various industries to produce protective sheaths, pipeline tubes, screws, nuts, fasteners, and insulation tubes. It is an ideal choice for those who are seeking for an efficient and reliable plastic extrusion machine.



Support and Services:

Plastic Tube Extruder Machine Technical Support and Services

We are committed to providing excellent technical support and service for our Plastic Tube Extruder Machine. Our support and service includes:

  • Installation and Setup Assistance
  • Troubleshooting and Maintenance
  • Product Training and Education
  • Ongoing Technical Support
  • Product Upgrades and Enhancements

Our team of experienced professionals is available to answer any questions or concerns you may have about our Plastic Tube Extruder Machine. If you need help with installation, setup, troubleshooting, maintenance, training, or any other technical issue, please contact us.



Packing and Shipping:

Packaging and Shipping for the Plastic Tube Extruder Machine

The Plastic Tube Extruder Machine will be carefully packaged in a box with a foam insert to protect the machine and its components during shipping. The box should be marked with a "Fragile" sticker to ensure proper handling during transit.

The Plastic Tube Extruder Machine will be shipped using a reputable freight carrier. The shipment will include tracking information, insurance coverage, and delivery confirmation.



FAQ:

  • Q: What is the Brand Name of this Plastic Tube Extruder Machine?
    A: The Brand Name of this Plastic Tube Extruder Machine is Wings Plastic.
  • Q: What is the Model Number of this Plastic Tube Extruder Machine?
    A: The Model Number of this Plastic Tube Extruder Machine is SJ65/30.
  • Q: Where is this Plastic Tube Extruder Machine manufactured?
    A: This Plastic Tube Extruder Machine is manufactured in Qingdao China.
  • Q: What are the features of this Plastic Tube Extruder Machine?
    A: This Plastic Tube Extruder Machine is designed with a high-efficiency extrusion system, a high-precision die head, and a smooth and uniform extrusion surface.
  • Q: Is it easy to operate this Plastic Tube Extruder Machine?
    A: Yes, this Plastic Tube Extruder Machine is easy to operate, with a user-friendly interface and clear instructions.EVA Spiral Tube Making Machine 100kg/h LLDPE 301 Ratio 0
