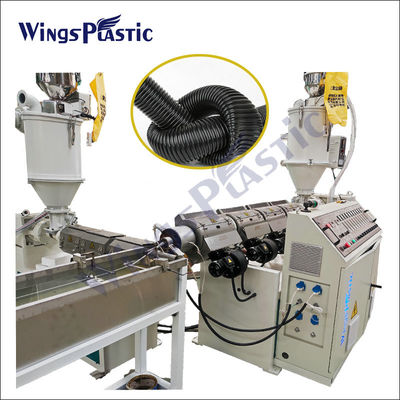

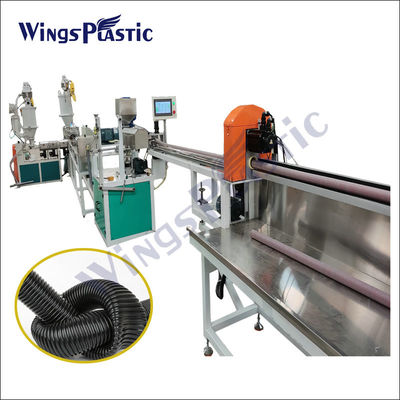

100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio

100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio
100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio 100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio 100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio

Large Image :  100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio

Description
Electric Device: Delta JACT Siemens Etc Power: 220V/380V
Capacity: 100kg/h Cooling Method: Air/Water
Material: EVA LLDPE Control System: PLC
Screw Diameter: 65mm Screw L/D Ratio: 30:1
High Light:

100kg/H Hose Extrusion Line

,

380V Hose Extrusion Line

,

Swimming Pool Hose Extruder 220V

100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio

Product Description:

This hose's main materials are EVA & LLDPE.

A few of the distinguishing features of this hose line are:

  • High speed. The maximum speed reaches up to 6 meters per minute, which is the same speed as with Italian machines. However, our price is only 1/20th of the Italy machine.
  • Easy operation. The machine is controlled by a PLC. Every step is automated and input via a program. Even for the average worker, the machine is easy to use.

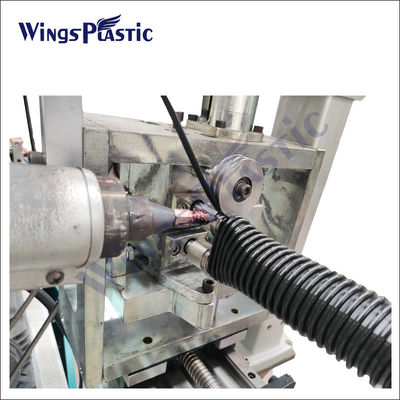

  • Servo motor cutting. It takes 0.02 seconds for the servo motor to make the cutting stroke, while the cylinder control only takes 0.2 seconds. The servo motor ensures a neat and smooth cut, and the cutting unit is designed to meet the CE standard. When the speed of the line exceeds 4 meters per minute, a common drive cutter can no longer keep up with the spiral speed, so the servo motor must be used for cutting.
  • Stable working. The temperature control system for LLDPE has 3 data points: at the hauling part, heating part and outlet part. All of these temperatures are controlled and monitored by modules.


Features:

  • Product Name: Plastic Tube Extruder Machine
  • Screw Speed: 73rpm
  • Electric Device: Delta JACT Siemens Etc
  • Material: EVA LLDPE
  • Capacity: 100kg/h
  • Power: 220V/380V
  • Special Feature: EVA Flexible Hose Making Machine, EVA Spiral Tube Making Machine, EVA Spiral Tube Making Machine


Technical Parameters:

Parameter Value
Control System PLC
Screw L/D Ratio 30:1
Power 220V/380V
Screw Speed 73rpm
Capacity 100kg/h
Electric Device Delta, JACT, Siemens, etc
Screw Diameter 65mm
Material EVA, LLDPE
Cooling Method Air/Water
Application Vacuum Cleaner Hose Manufacturing Machine, EVA Spiral Tube Making Machine, Vacuum Cleaner Hose Manufacturing Machine


Applications:

The EVA Spiral Tube Making Machine produced by Wings Plastic is a versatile and powerful plastic tube extruder machine. It is ideal for producing EVA flexible hose and vacuum cleaner hose. With a model number of SJ65/30 and a powerful screw speed of 73rpm, it is capable of achieving a screw L/D ratio of 30:1. It also has a capacity of 100kg/h, and can be powered either by 220V or 380V of electric device, such as Delta, JACT, Siemens, etc. With its robust and reliable design, it is the perfect choice for high-performance EVA flexible hose making machine and vacuum cleaner hose manufacturing machine.



Support and Services:

Technical Support and Service for Plastic Tube Extruder Machine

We provide a comprehensive range of technical support and services for the Plastic Tube Extruder Machine, including:

  • Installation and commissioning of the machine
  • Troubleshooting and maintenance of the machine
  • Provide spare parts and consumables
  • Provide operator and maintenance training
  • Provide technical advice and consultancy

We are committed to providing the highest level of customer service and satisfaction and strive to ensure that every customer receives the best possible service.



Packing and Shipping:

Packaging and Shipping for Plastic Tube Extruder Machine:

The Plastic Tube Extruder Machine is packaged with a cardboard box, bubble wrap, and packing peanuts for protection during shipping. The box is labeled with the product name, size, and weight. The box is then sealed with packing tape and labeled with the shipping address.

The Plastic Tube Extruder Machine is shipped via a reputable courier service such as DHL, UPS, or FedEx. Tracking information is provided to the customer upon request.



FAQ:

Q1: What is the brand name of the Plastic Tube Extruder Machine?

A1: The brand name of the Plastic Tube Extruder Machine is Wings Plastic.

Q2: What is the model number of the Plastic Tube Extruder Machine?

A2: The model number of the Plastic Tube Extruder Machine is SJ65/30.

Q3: Where is the Plastic Tube Extruder Machine produced?

A3: The Plastic Tube Extruder Machine is produced in Qingdao, China.

Q4: Does the Plastic Tube Extruder Machine come with any accessories?

A4: Yes, the Plastic Tube Extruder Machine comes with several accessories, such as a cutting blade and a feeder.

Q5: What materials can the Plastic Tube Extruder Machine handle?

A5: The Plastic Tube Extruder Machine can handle a wide variety of materials, such as PVC, PP, HDPE, and PET.

100kg/H Swimming Pool Hose Extrusion Line 220V/380V Power Supply 301 Screw L/D Ratio 0
