Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ65/30

Air Fans Water Cooling PE Corrugated Pipe Production Line 37KW Extruder Power

Description
Dimension: 17m*2 M*2 .8m Air Pressure: 0.6-0.8Mpa
Product Name: PE Double Wall Corrugated Pipe Production Line Control System: PLC
Extruder Power: 37KW Pipe Diameter: 40-110mm
Material: PE Cooling Way: Air Fans And Water Cooling
High Light:

37KW PE Corrugated Pipe Extruder

,

Corrugated Pipe Production Line 37KW

,

Water Cooling PE Pipe Extruder

37KW Extruder Power And Air Fans And Water Cooling PE Corrugated Pipe Production Line

Product Description:

Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line,PVC double-wall corrugated pipe production line.
Equipment operation is stable, automatic production, saving labor, efficient extrusion.

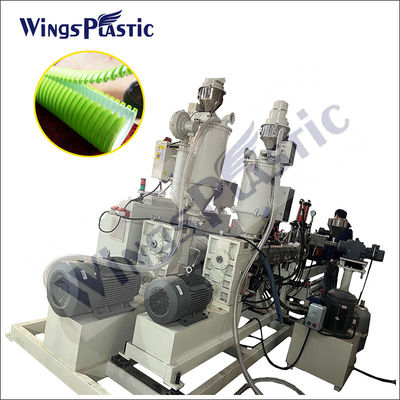

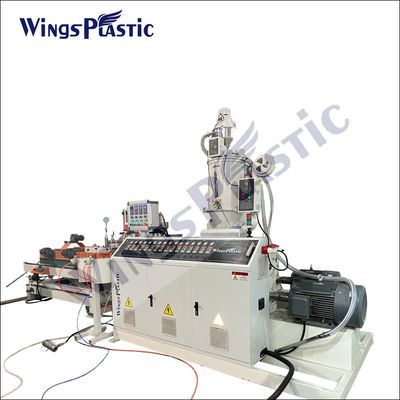

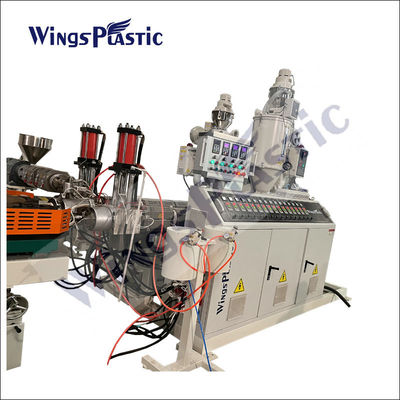

Extruder:
1, double extruder, advanced screw design, assure the high speed extrusion of double-wall corrugated pipe;
2, a temperature control system, reliable guarantee to produce high quality PVC double-wall corrugated pipe and HDPE double-wall corrugated pipe.


Features:

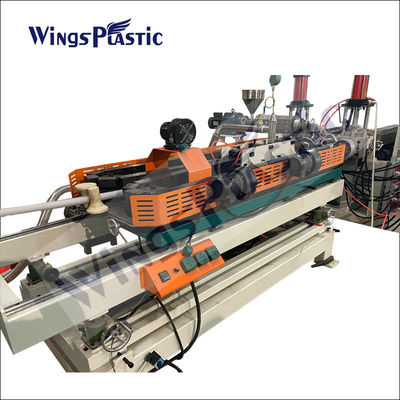

  • A double-wall corrugated pipe production line typically features an extruder system for melting and shaping the polymer, dual-wall corrugator machinery for creating the distinctive corrugated structure on both inner and outer layers, and downstream equipment for cutting, cooling, and packaging the final product. This production setup enables the efficient manufacturing of double-wall corrugated pipes, known for their enhanced strength, structural integrity, and suitability for applications requiring added protection or insulation.


Technical Parameters:

Parameter Value
Extruder Power 37KW
Material PE
Control System PLC
Product Name PE Double Wall Corrugated Pipe Production Line
Voltage 380V/50Hz
Production Speed 6-8m/min
Air Pressure 0.6-0.8Mpa
Cooling Way Air Fans And Water Cooling
Pipe Diameter 40-110mm
Extruder Heating Power 24KW


Applications:

Wings Plastic's SJ65/30 PE Double Wall Corrugated Tube Making Machine is widely used for producing plastic dual corrugated drainage pipes with diameter range from 40mm to 110mm. This machine is designed with 24KW extruder heating power and 6-8m/min production speed, which makes it the ideal choice for large-scale production of plastic large diameter corrugated drainage pipes. With PLC control system, this PE double wall corrugated pipe production line ensures accurate and stable production. As a reliable and reputable manufacturer, Qingdao China-based Wings Plastic has manufactured many high-performance plastic dual corrugated drainage pipes extruder machines and plastic large diameter corrugated drainage pipe production lines for customers around the world.



Support and Services:

Our PE Corrugated Pipe Production Line is supported by a full range of technical support and services, including:

  • On-site installation and commissioning.
  • Operator training.
  • Spare parts supply.
  • Regular maintenance.
  • Technical support by phone or email.


Packing and Shipping:

Packaging and Shipping for PE Corrugated Pipe Production Line

We guarantee safe and secure packaging and shipping of the PE Corrugated Pipe Production Line. We use high-grade packaging materials and adhere to the international standards of packaging to ensure that the product is transported safely and securely.

The PE Corrugated Pipe Production Line is securely fastened and packaged in special wooden boxes or crates to ensure that no damage or breakage occurs during transportation. The boxes are then sealed and labeled with the required information, such as the product name, weight, size, and destination. The package is then loaded onto trucks or containers for delivery.

We also provide traceable services to ensure that the package is tracked at each step of the way from the time of dispatch to the time of delivery. We also provide insurance coverage to ensure that the product is covered for any damage or loss during transit.



FAQ:

PE Corrugated Pipe Production Line
Q: What is the brand name of the product?
A: The brand name of the product is Wings Plastic.
Q: What is the model number of the product?
A: The model number of the product is SJ65/30.
Q: Where is the product manufactured?
A: The product is manufactured in Qingdao China.
Q: What is the purpose of the product?
A: The product is a PE Corrugated Pipe Production Line.
Q: What are the advantages of the product?
A: The product has the advantages of energy saving, high automation, fast production speed, low noise, and stable performance.
