17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System

17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System

Large Image :  17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ65/30

17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System

Description
Air Pressure: 0.6-0.8Mpa Voltage: 380V/50Hz
Production Speed: 6-8m/min Extruder Heating Power: 24KW
Pipe Diameter: 40-110mm Cooling Way: Air Fans And Water Cooling
Material: PE Product Name: PE Double Wall Corrugated Pipe Production Line
High Light:

17m PE Corrugated Pipe Extruder

,

PLC PE Corrugated Pipe Extruder

,

2M PE Corrugated Pipe Extruder

PLC Control System And 17m*2 M*2 .8m PE Corrugated Pipe Production Line With

Product Description:

This PE Corrugated Pipe Production Line is a kind of HDPE Dual Wall Corrugated Pipe Machine, which is used to produce the plastic dual corrugated drainage pipe with PE material. It has advanced technology and stable performance, and it can be used to produce pipes with diameter from 40-110mm. It adopts air fans and water cooling system for cooling, and the voltage is 380V/50Hz. This PE Corrugated Pipe Production Line has been widely used in many fields and it is a good choice for you to choose.

17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 0

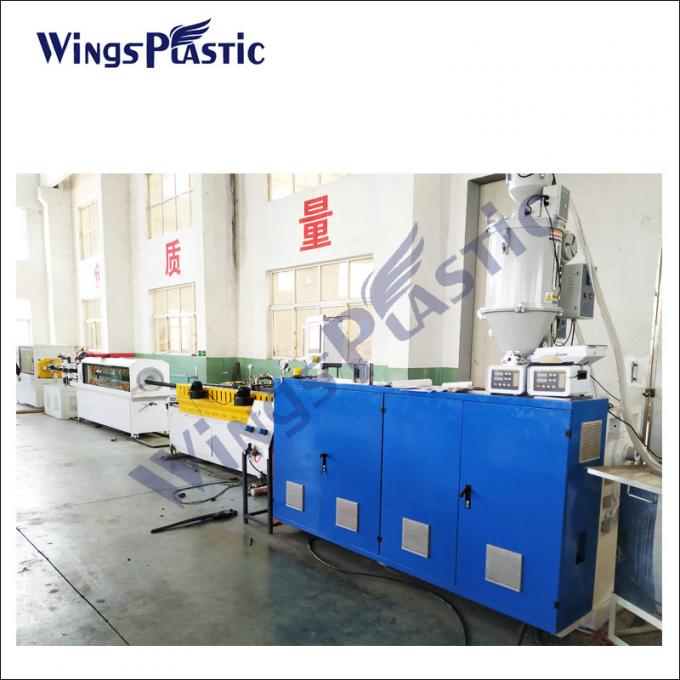

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.
Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 1

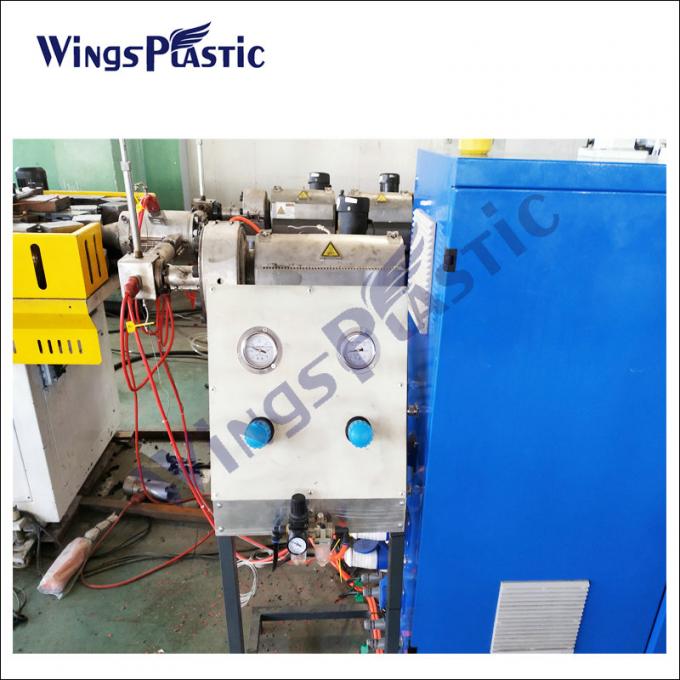

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive
Two layer with aluminum cooling sleeve
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 2

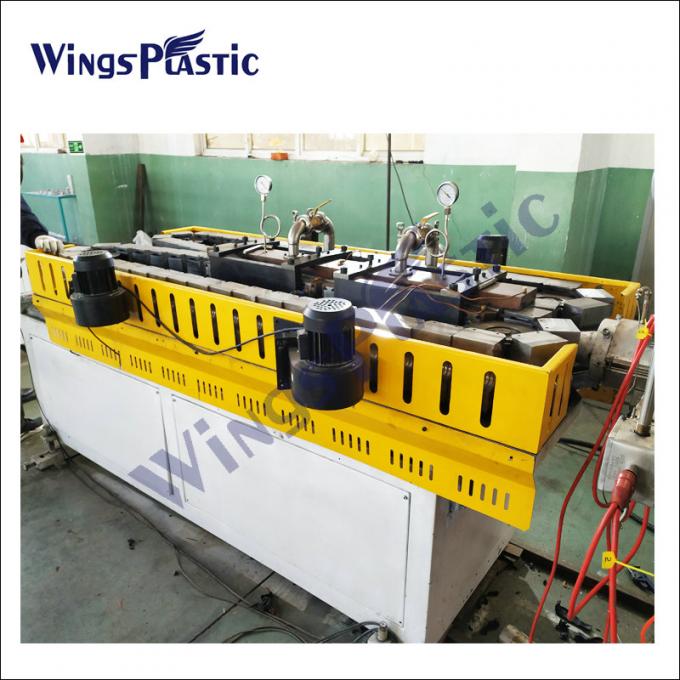

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 4-6m/min working speed.It is added water cooling and fan cooling two system.
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 3

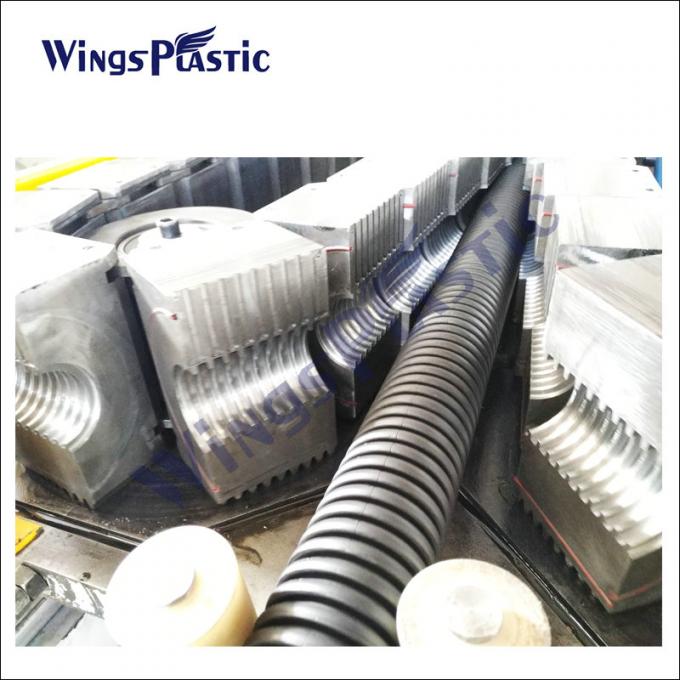

Moulds Block

Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
We could add the vacuum system for option
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 4

Automatic coiler

No of wheel: two wheel or one wheel according customer request.Useing torque motor system, it is automatic adjustment of winding speed.
17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 5

Control Box

Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

Features:

  • Product Name: PE Corrugated Pipe Production Line
  • Dimension: 17m*2 M*2 .8m
  • Material: PE
  • Cooling Way: Air Fans And Water Cooling
  • Extruder Power: 37KW
  • Air Pressure: 0.6-0.8Mpa
  • Speciality: Plastic Large Diameter Corrugated Drainage Pipe Production Line, Plastic Dual Corrugated Drainage Pipe Extruder Machine, HDPE Dual Wall Corrugated Pipe Machine


Technical Parameters:

Parameter Value
Product Name PE Double Wall Corrugated Pipe Production Line
Material PE
Control System PLC
Production Speed 6-8m/min
Extruder Power 37KW
Extruder Heating Power 24KW
Pipe Diameter 40-110mm
Cooling Way Air Fans And Water Cooling
Air Pressure 0.6-0.8Mpa
Dimension 17m*2 M*2 .8m


Applications:

Underground Cable Protection:** The dual-layered structure of these pipes offers enhanced protection for underground cables. They act as a robust conduit, safeguarding electrical and telecommunication cables from external pressures, moisture, and potential damage.

 **Utilities Conduits:** In infrastructure projects, double-wall corrugated pipes serve as conduits for various utilities, including water, gas, and telecommunications. Their adaptability to different conditions makes them valuable in complex underground networks.

**Industrial Piping:** Industries utilize these pipes for conveying fluids, chemicals, or gases in a reliable and durable manner. The corrosion-resistant nature of the pipes ensures the integrity of industrial piping systems over extended periods.

**Agricultural Applications:** Double-wall corrugated pipes are employed in agricultural settings for irrigation and drainage purposes. Their flexibility and strength make them suitable for adapting to the dynamic needs of agricultural infrastructure.



Support and Services:

PE Corrugated Pipe Production Line Technical Support and Service

We provide comprehensive technical support and service for our PE Corrugated Pipe Production Line. Our offering includes:

  • Installation, commissioning and start-up services
  • Operator and maintenance training
  • Process optimization and troubleshooting assistance
  • Spare parts supply and service
  • Field service and after-sales support
  • Remote monitoring and diagnostics

Our highly qualified team of professionals can help you get the most out of your PE Corrugated Pipe Production Line, maximize your productivity, and ensure a smooth and trouble-free operation.



Packing and Shipping:

Packaging and Shipping for PE Corrugated Pipe Production Line:

The PE Corrugated Pipe Production Line is packaged in plywood cases and can be shipped by sea, air, train, or truck.

The product must be handled with care during the transportation process to avoid any damage.

The customer needs to provide the specific address and necessary documents for shipping.



FAQ:

  • Q: What is the Brand Name of the PE Corrugated Pipe Production Line?
  • A: The Brand Name is Wings Plastic.
  • Q: What is the Model Number of the PE Corrugated Pipe Production Line?
  • A: The Model Number is SJ65/30.
  • Q: Where is the Place of Origin of the PE Corrugated Pipe Production Line?
  • A: The Place of Origin is Qingdao, China.
  • Q: What are the benefits of using a PE Corrugated Pipe Production Line?
  • A: The PE Corrugated Pipe Production Line features a high production speed, superior quality, low energy consumption, and high efficiency.
  • Q: What materials does the PE Corrugated Pipe Production Line support?
  • A: The PE Corrugated Pipe Production Line is suitable for processing all kinds of plastics, such as HDPE, LDPE, PP, ABS, etc.
  • 17m*2M*2 .8m PE Corrugated Pipe Production Line With PLC Control System 6
