Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min

Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min
Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min

Large Image :  Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min

Description
Dimension: 17m*2 M*2 .8m Material: PE
Production Speed: 6-8m/min Pipe Diameter: 40-110mm
Cooling Way: Air Fans And Water Cooling Air Pressure: 0.6-0.8Mpa
Extruder Power: 37KW Control System: PLC
High Light:

PE Corrugated Drainage Pipe Extruder

,

8m/Min PE Corrugated Pipe Extruder

,

Dual Wall Corrugated Pipe Extruder

6-8m/Min Plastic Dual Corrugated Drainage Pipe Extruder Machine PE Double Wall Corrugated Pipe Production Line

Product Description:

The PE Double Wall Corrugated Pipe Production Line is a plastic dual corrugated drainage pipe extruder machine designed to produce PE pipes with a diameter from 40mm to 110mm, and a dimension of 17m*2m*2.8m. This line is equipped with a PLC control system for easy operation and technical maintenance. It is perfect for various industries such as agricultural and industrial drainage, telecom industry, and municipal engineering. The advanced technology ensures the reliable performance and high-efficiency in producing top-quality plastic dual corrugated drainage pipes with excellent strength and durability.

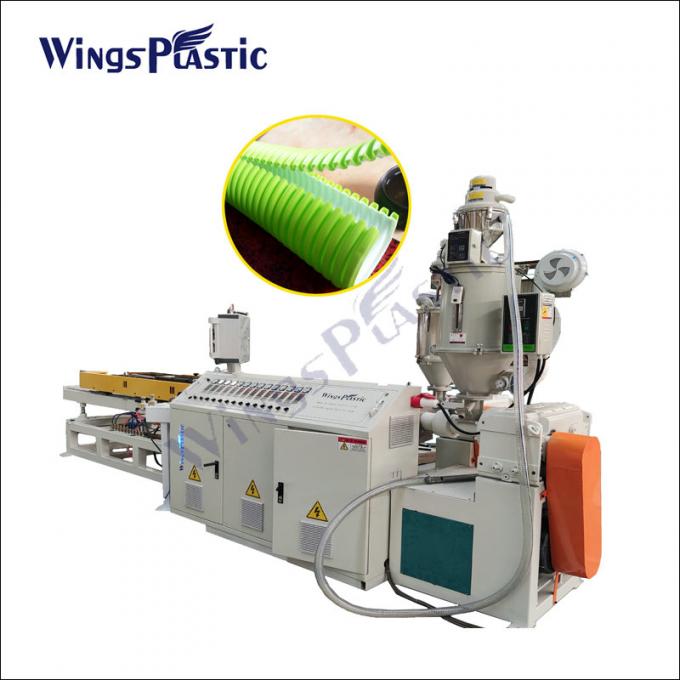

Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 0

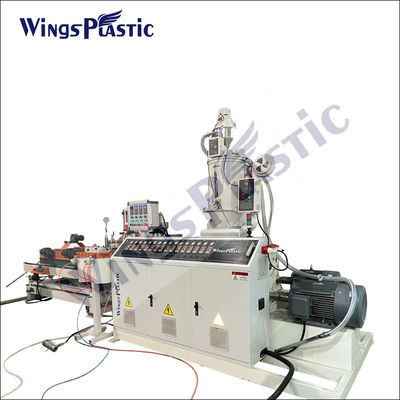

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.
Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barrel>940, the surface of screw is chromeplated Feeding bush with water cooling system
Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 1

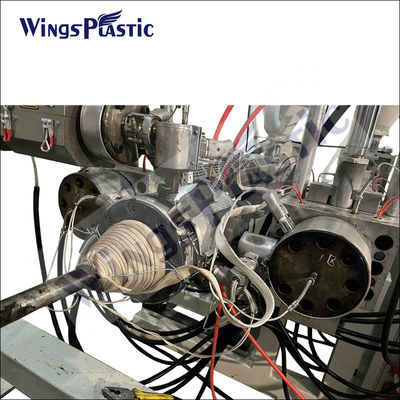

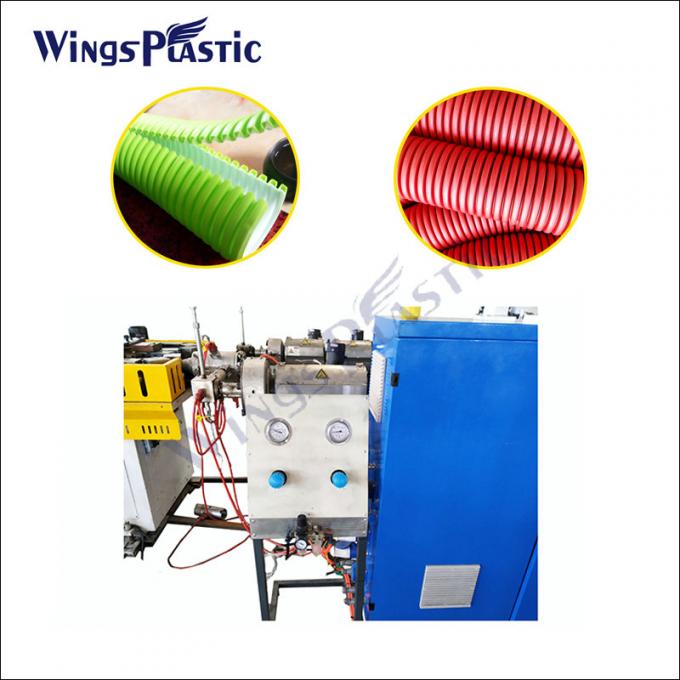

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive
Two layer with aluminum cooling sleeve
Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 2

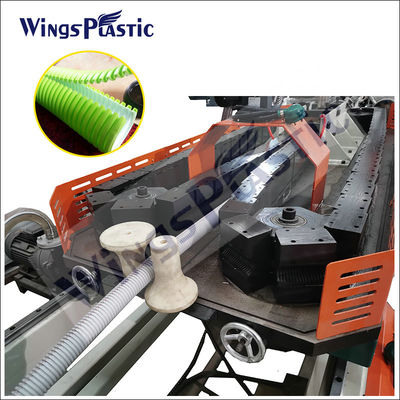

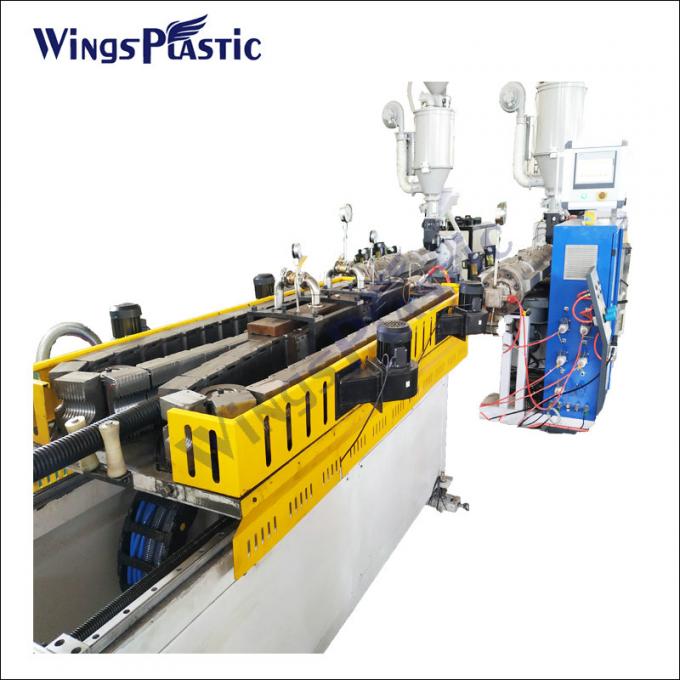

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 4-6m/min working speed.It is added water cooling and fan cooling two system.
Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 3

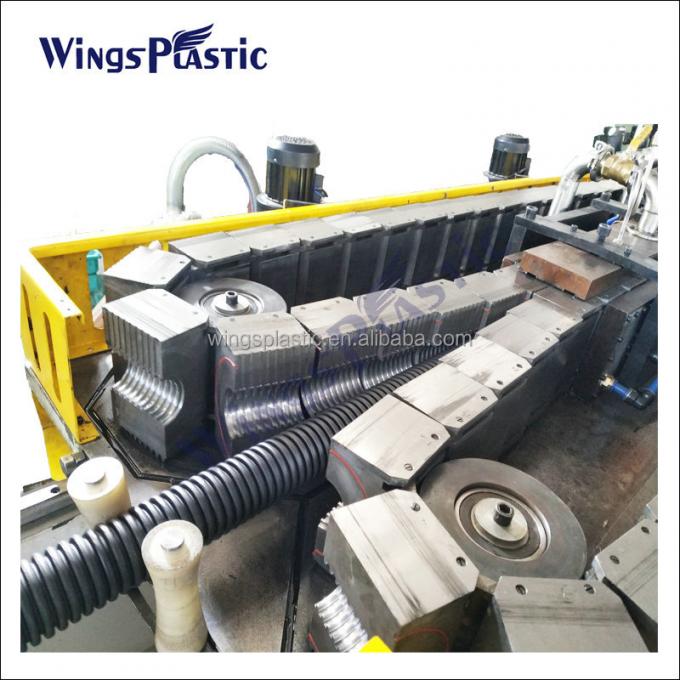

Mould Block

Materials of moulds block:40Cr
The moulds are made by CNC system, it is high precison and long service life. We could add the vacuum system for option
Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 4

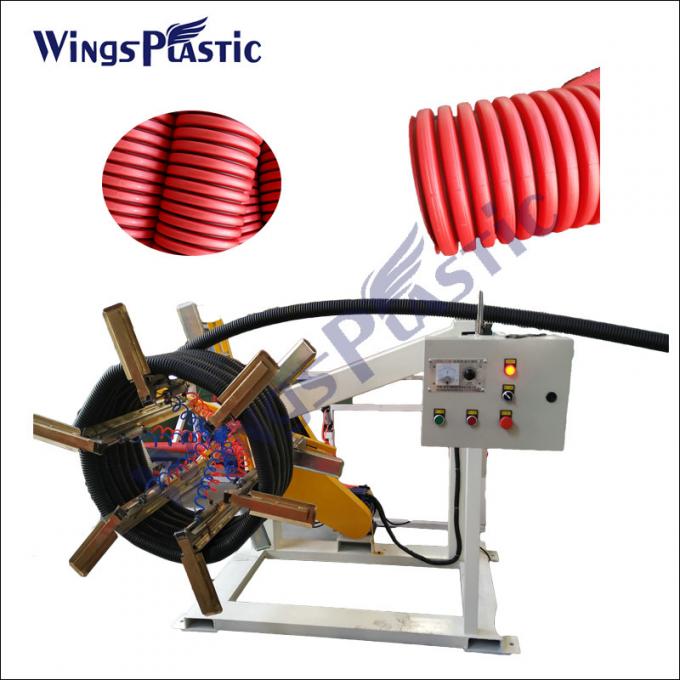

Automatic Coiler

No of wheel: two wheel or one wheel according customer request.Useing torque motor system, it is automatic adjustment of winding speed.



Plastic PE Dual Wall Corrugated Drainage Pipe Extruder Machine 6-8m/Min 5

Control Box

Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability

Features:

  • Product Name: PE Corrugated Pipe Production Line
  • Extruder Heating Power: 24KW
  • Material: PE
  • Control System: PLC
  • Air Pressure: 0.6-0.8Mpa
  • Dimension: 17m*2 M*2 .8m
  • PE Double Wall Corrugated Tube Making Machine
  • Plastic Large Diameter Corrugated Drainage Pipe Production Line
  • Plastic Dual Corrugated Drainage Pipe Extruder Machine


Technical Parameters:

Parameter Description
Product Name PE Double Wall Corrugated Pipe Production Line
Control System PLC
Air Pressure 0.6-0.8Mpa
Voltage 380V/50Hz
Production Speed 6-8m/min
Pipe Diameter 40-110mm
Cooling Way Air Fans And Water Cooling
Extruder Power 37KW
Extruder Heating Power 24KW
Dimension 17m*2 M*2 .8m


Applications:

**Road Culverts:** These pipes are used in the construction of road culverts, providing efficient drainage solutions beneath roadways. The pipes' resilience to soil and traffic loads makes them a preferred choice in such infrastructure projects.

**Environmental Protection:** In environmental projects, these pipes contribute to pollution control and environmental conservation. They are utilized in systems designed to manage and contain hazardous materials, preventing soil and water contamination.

**Construction Projects:** Double-wall corrugated pipes are integral in construction projects for various applications, including foundation drainage, tunneling, and subsurface water management. Their ease of installation and adaptability make them valuable in diverse construction scenarios.

**Sustainable Solutions:** Many double-wall corrugated pipes are made from recyclable materials, aligning

Support and Services:

We provide technical support and services for PE Corrugated Pipe Production Line.

We offer a comprehensive range of services including:

  • Installation and commissioning of the production line
  • Onsite technical training and support
  • Regular maintenance and repair
  • Spare parts supply and replacement
  • Remote support through phone, email, or video

We are committed to providing our customers with the best service and support in the industry.



Packing and Shipping:

Packaging and Shipping of the PE Corrugated Pipe Production Line

The PE Corrugated Pipe Production Line is packaged and shipped in a safe and secure manner. Firstly, the pipe production line is carefully inspected to ensure that it is in working order and all parts are present. Secondly, the production line is securely wrapped and loaded into a wooden crate. The crate is then sealed and labeled with the destination address. Lastly, the crate is transported to the shipping point where it is loaded onto the designated delivery vehicle for shipment.



FAQ:

Q1. What is the brand name of the PE Corrugated Pipe Production Line?
A1. The brand name of the PE Corrugated Pipe Production Line is Wings Plastic.

Q2. What is the model number of the PE Corrugated Pipe Production Line?
A2. The model number of the PE Corrugated Pipe Production Line is SJ65/30.

Q3. Where is the production line made?
A3. The production line is made in Qingdao, China.

Q4. What materials can be used to make the PE corrugated pipes?
A4. The PE corrugated pipes can be made from HDPE, PP and other plastic materials.

Q5. What is the production capacity of the PE Corrugated Pipe Production Line?
A5. The production capacity of the PE Corrugated Pipe Production Line depends on the size of the pipes, but it can reach up to 500 pieces an hour.
