Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine
Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine

Large Image :  Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets
Contact Now

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine

Description
Extruder Heating Power: 24KW Raw Material: HDPE
Extruder L/D Ratio: 30:1 Suitable Materials: HDPE Materials
Pipe Diameters: 40-110mm Or Customized Dimension: 17m*2 M*2 .8m
Extrusion Output: 80-120kg/h Product Type: Pipe Extrusion Line
Extruder Screw Diameter: 65mm Cooling Method: Water Cooling
Extruder Heating Zones: 5 Zones Production Capacity: 200-1000kg/h
Extruder Motor Power: 30kw Powder Condition: 380V/50HZ Or Customized
Inverter: Delta Brand
Highlight:

HDPE drainage corrugated pipe machine

,

HDPE DWC pipe machine

,

HDPE corrugated pipe machine

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine 0

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine

hdpe double wall corrugated pipe machine
DWC PIPE MACHINE
drainage pipe machine
Double-wall corrugated pipe production line adopts the direct extrusion molding process, high efficiency production , reliable quality. Due to its excellent wall structure design, the pipe have lightest weight , and the pipe cost greatly reduced, a large number alternatives of traditional concrete pipe and cast iron pipe.

Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line,PVC double-wall corrugated pipe production line.
Equipment operation is stable, automatic production, saving labor, efficient extrusion.

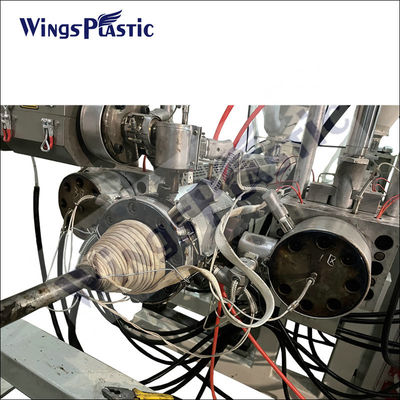

Extruder:
1, Double extruder, advanced screw design, assure the high speed extrusion of double-wall corrugated pipe;
2, A temperature control system, reliable guarantee to produce high quality PVC double-wall corrugated pipe and HDPE double-wall corrugated pipe.
Key Words:hdpe double wall corrugated pipe machine DWC PIPE MACHINE drainage pipe machine
Suitable Pipe Diameter
Model Extruder
Output
Motor Power
Production Speed
40-110mm
SJ 65/33 and SJ 50/30
180kg/h
30kw and 15kw
1-6m/min
75-200mm
SJ 75/33 and SJ 65/33
400-450kg/h
75kw and 45kw
1-8m/min



Advantage of Double Corrugated Pipe Machine
1) Extremely strong resistance to chemical corrosion and erosion.2) Good flexibility and strong impact resistance
3) Cold resistance and aging resistance. The connection is simple, safe and reliable.
4) Light weight and convenient construction.
5)Strong wear resistance. The service life is more than 50 years, and it is maintenance-free during the service life.
6) Superior drainage performance. It is hygienic and can be recycled and used.

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!

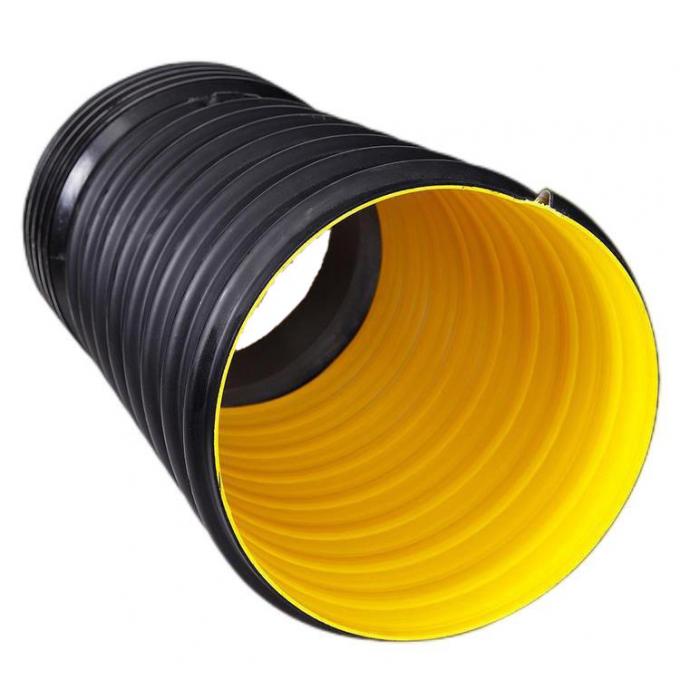

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine 1

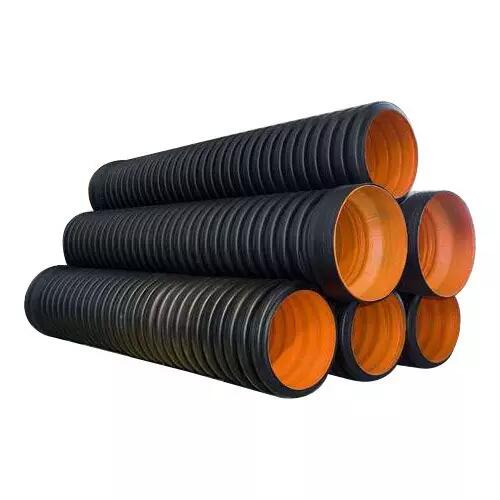

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine 2

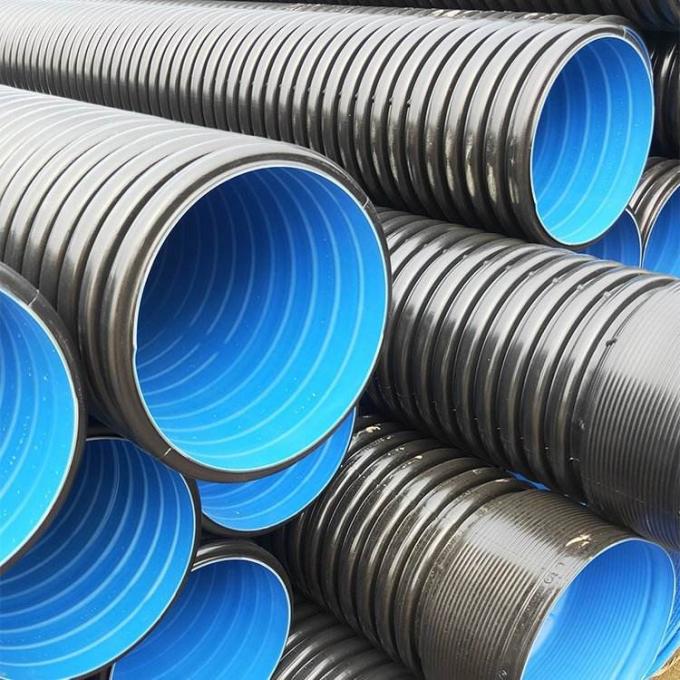

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine 3

Automatic hdpe double wall corrugated pipe machine DWC PIPE MACHINE HDPE drainage pipe machine 4
