Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
| Suitable Materials: | HDPE PPR LDPE LLDPE | ||
| Highlight: | HDPE Pe Pipe Making Machine 110mm,Pe Pipe Making Machine 220kg/h,Water Pipe High Speed Extruder 110mm |
||
HDPE Water Pipe Production Line High Speed High Efficiency Extruder Machine

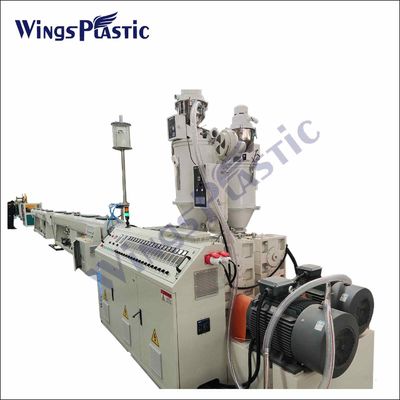

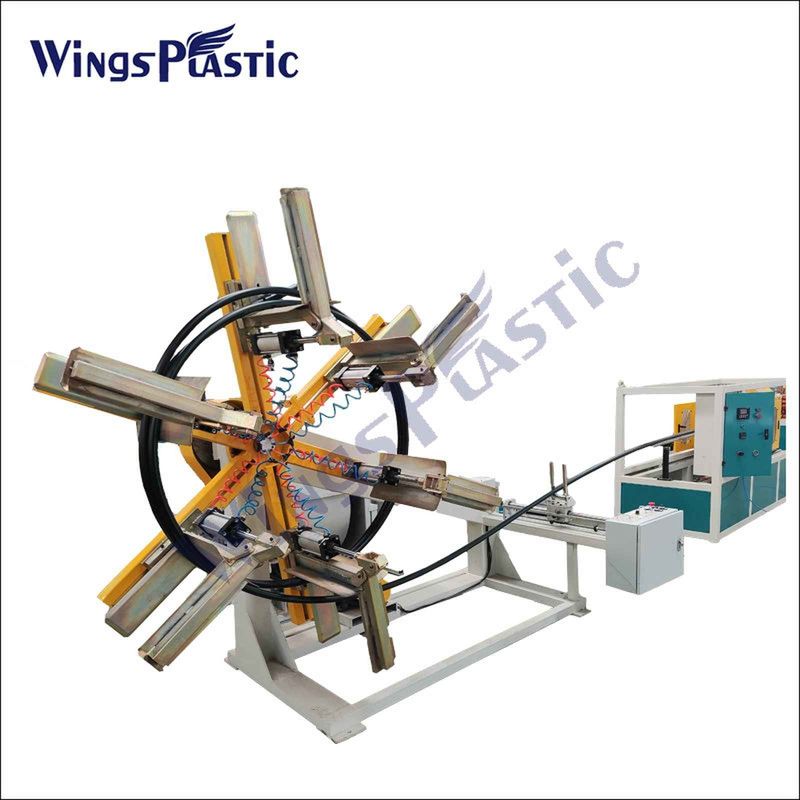

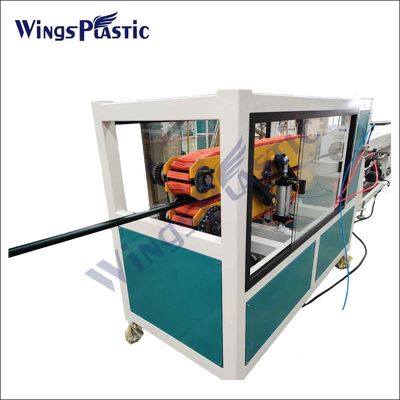

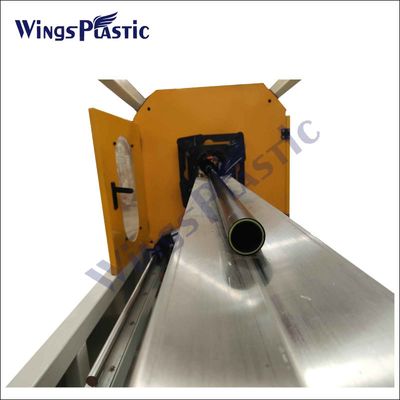

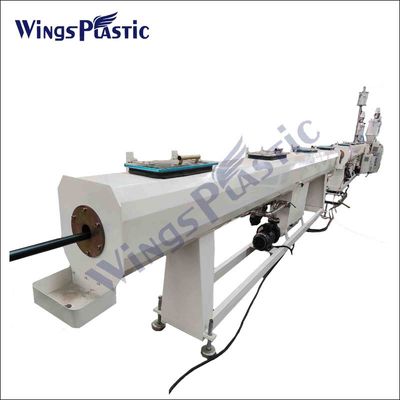

PE pipe production/extrusion line is used to produce PE pipes for water pipe, conduit pipe,gas pipe. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket and winder units.
Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

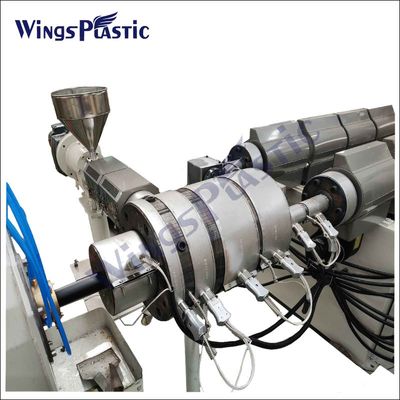

3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter etc can be controlled by touch screen synchronously.
Basic Machinery Informations:
| Extruder Size | Main Motor | Max Capacity | Pipe Diamter |
| 50/33 | 22kw | 80kg/h | 16-32mm |
| 65/33 | 37kw | 150kg/h | 16-63mm |
| 65/33-H | 45kw/55kw | 180-200kg/h | 20-110mm |
| 75/33-H | 90kw | 360kg/h | 75-250mm |
| 90/33-H | 132kw | 500kg/h | 110-315mm |
| 120/33-H | 255kw | 1000kg/h | 355-630mm |
| 150/33-H | 400kw | 1400kg/h |
630-1000mm |
