16-63mm PE Pipe Extrusion Line HDPE Series Plastic Pipe Machinery Plant

Large Image : 16-63mm PE Pipe Extrusion Line HDPE Series Plastic Pipe Machinery Plant

Product Details:

Place of Origin:	Qingdao China
Brand Name:	WingsPlastic
Certification:	CE
Model Number:	SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden Box or Film Packing
Delivery Time:	45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 sets

Contact Now

16-63mm PE Pipe Extrusion Line HDPE Series Plastic Pipe Machinery Plant

Description

Condition:	New	Powder Condition:	380V/50HZ Or Customized
Capacity:	350kg/h Or Customized	Pipe Diameters:	75-160mm Or Customized
Suitable Materials:	HDPE PPR LDPE LLDPE
High Light:	75mm PE Pipe Extrusion Line , PE Pipe Extrusion Line HDPE Series , Plastic Pipe Machinery Plant 75mm

HDPE Series Plastic Pipe Machinery Plant , PE Pipe Extruder Machine Line

HDPE/LDPE series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc. This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.

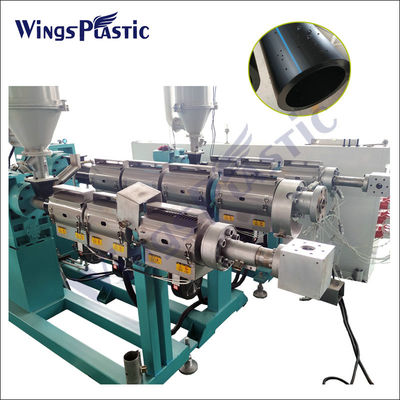

1) Single screw extruder
Adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.

2) Extrusion die head
It is spiral type, good calibrating makes good quality pipe production.
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

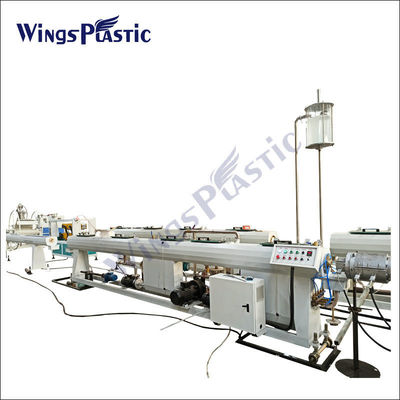

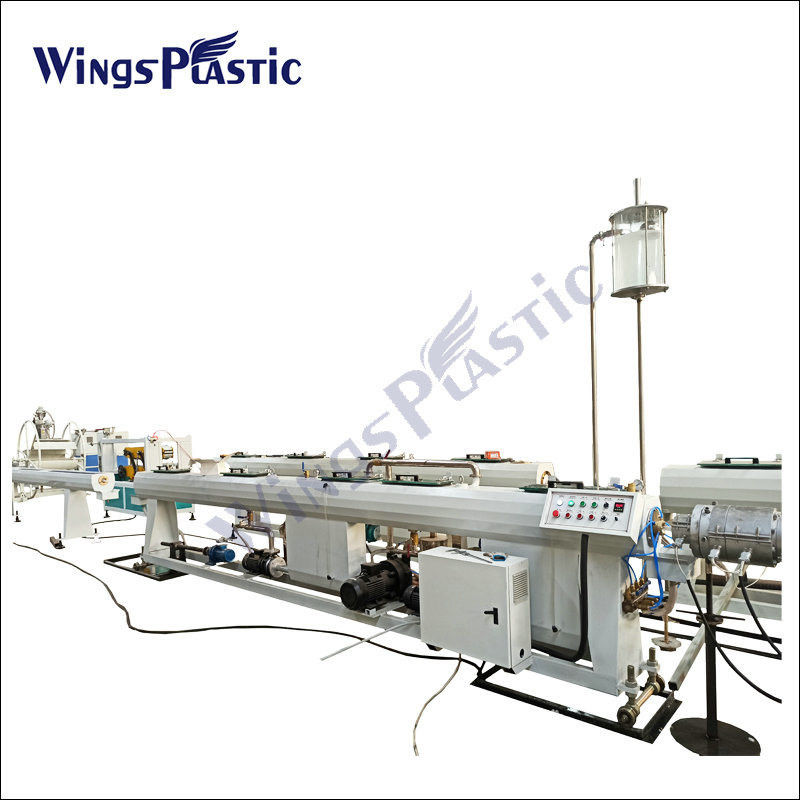

3) Vacuum calibrating tank and water spraying cooling tank
Adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.

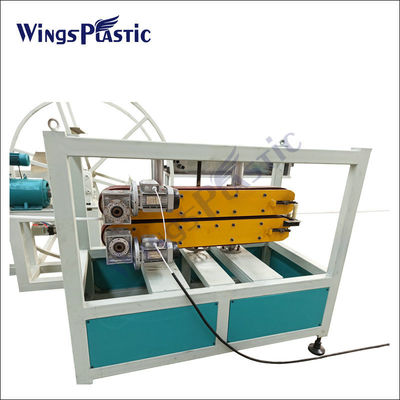

4) Haul off machine
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes.

5) Cutting machine
Non-scraped cutting, saw cutting or planetary cutting can be applied, accurate cutting, reliable property, high efficiency. Meter-counting device is also installed.

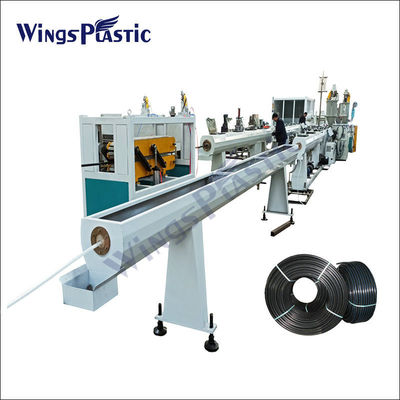

HDPE Series Plastic Pipe Machinery Plant, PE Pipe Machine Line Pictures:

Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢45mm	¢60mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC30kw	DC75kw	DC110kw	DC110kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	60-100kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	10m/min	6m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

16-63mm PE Pipe Extrusion Line HDPE Series Plastic Pipe Machinery Plant 0

16-63mm PE Pipe Extrusion Line HDPE Series Plastic Pipe Machinery Plant 1
