Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine

Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine
Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine

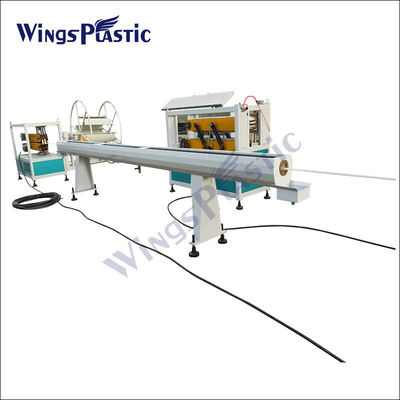

Large Image :  Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

Plastic PE Pipe Extruder Machine 50HZ

,

PE Pipe Extruder Machine 110mm

,

HDPE Pipe Extrusion Plant 110mm

Plastic HDPE Pipe Extrusion Plant / PE Pipe Extruder Making Machine On Sale In China

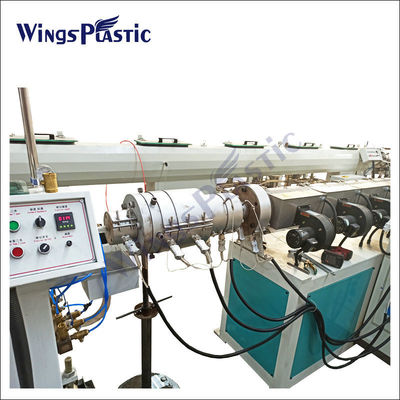

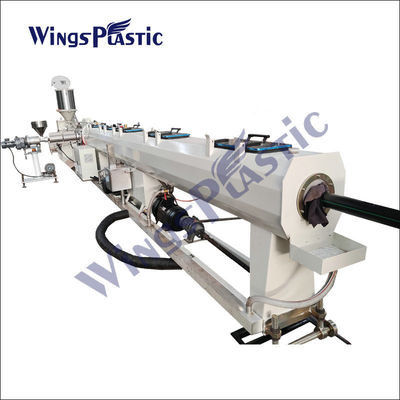

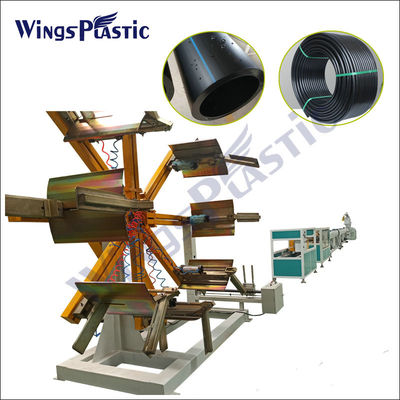

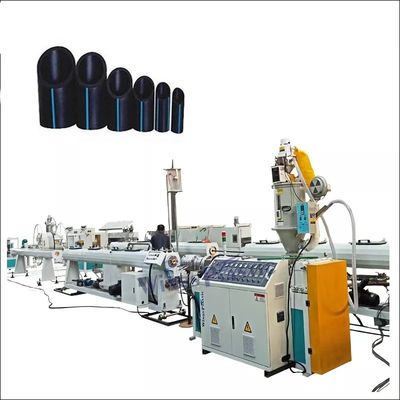

Qingdao Wings plastic extrusion equipment, PE plastic pipe production line
Plastic pipe extrusion production line, mainly used for continuous extrusion molding of PVC, polyethylene, polypropylene, such as plastic pipe, cold bending tube;there are series of extrusion, cooling unit set sizing, traction, cutting, unloading with a high degree of automation, good plasticizing and long service life, etc.
1. HDPE, PP pipe of high efficiency extruder, screw head, new type of slotting machine barrel, large amount of extrusion and stability.
2. The proprietary technology of sizing and cooling systems, using water film lubrication and cooling water ring type, to ensure that the diameter and roundness of the thick wall pipe is stability .

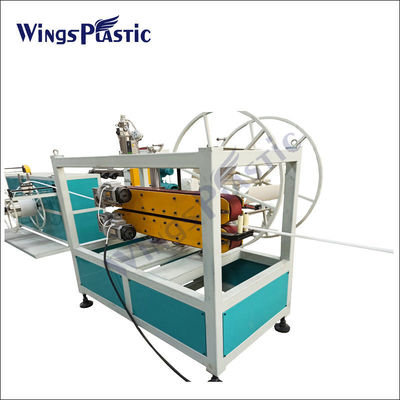

3. Double claw or cactus tractor, guarantee the drawing speed.
4. A chipless cutting machine, incision neatly without burrs.

Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min





Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine 0

HDPE Pipes:


HDPE water supply pipe use PE110 or PE80 as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection, Butt and fused connection,to insure the pipe system safety and reliability as well as low construction cost.



Plastic PE Pipe Extruder Machine HDPE Pipe Extrusion Plant PE Pipe Extruder Making Machine 1
