Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
| Suitable Materials: | HDPE PPR LDPE LLDPE | ||
| High Light: | Single Screw Plastic Pipe Extrusion Line,Plastic Pipe Extrusion Line HDPE,Single Screw HDPE Pipe Production Line |
||
Plastic HDPE Pipe Production Extrusion Line Machinery Single Screw Extruder
This machine is used for producing water / gas supply, and sewage and drain pipe, also undergroud pipes. The Materials could be HDPE, PP,PPR materials. HDPE,PP,PPR pipe is from same machine.
Description of PE Pipe Extrusion Line
This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Technical Parameter for pe pipe production machine
| Pipe Range | 16-63mm | 20-110 | 75-160 | 90-250 | 110-315 | 160-450 | 315-630mm | 500-800mm |
| Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
| Extruder Power | AC30KW | DC75KW | 110KW | 110KW | 160KW | 160KW | 280KW | 335KW |
| Extrusion Capacity(kg) | 60-100 | 100-150 | 250-300 | 250-300 | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
| Max. Speed | 10m/min | 6m/min | 6m/min | 6m/min | 3m/min | 1.2m/min | 0.9m/min | 0.7m/min |

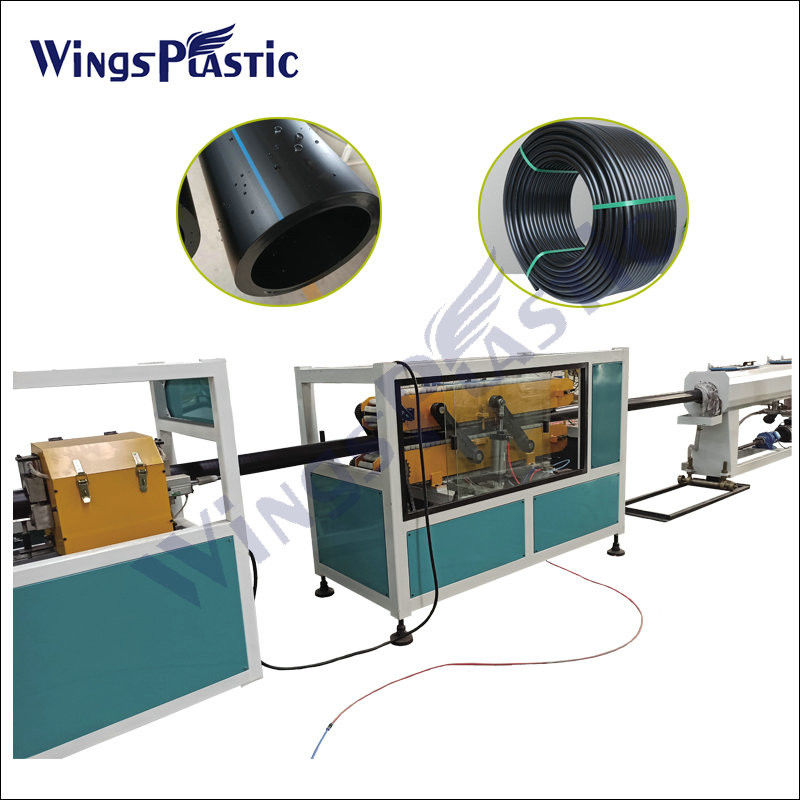

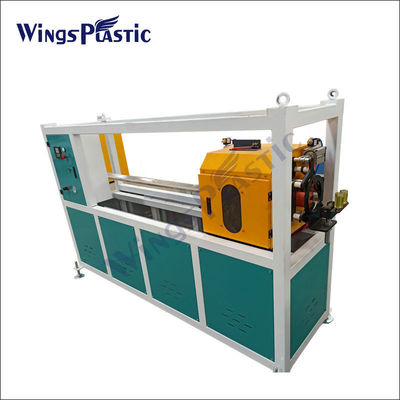

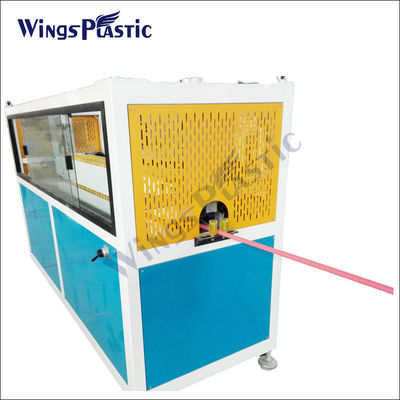

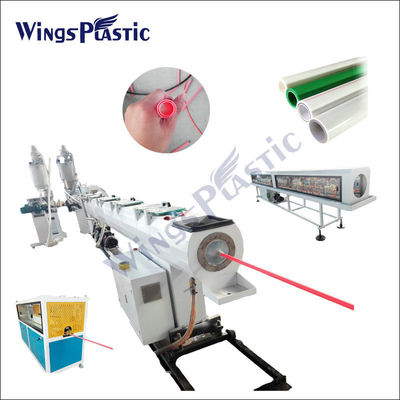

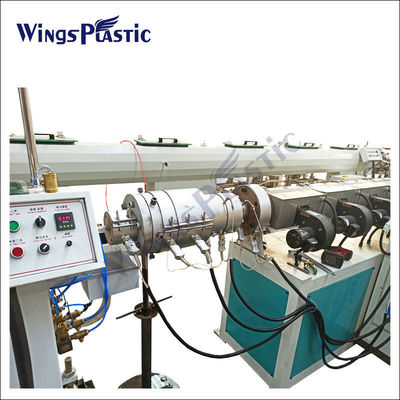

Plastic HDPE Pipe Production Line Machinery Pictures:
