PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery

PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery
PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery

Large Image :  PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

PE HDPE Pipe Making Machine

,

HDPE Pipe Making Machine PPR

,

Plastic Cpvc Pipe Extrusion Machinery

PE / HDPE Pipe Making Machine / Plastic Pipe Extrusion line Factory



HDPE pipe and gas pipe making equipment:
Performance and advantages:

The HDPE pipe production line designed by our company has unique structure, high automation degree, easy operation, continuous production, stable and reliable advantages. The HDPE pipes have good flexibility, creep resistance, environmental stress cracking resistance and good thermal performance, it has become the first choice of gas pipe and service pipe for outdoor in city.

HDPE could be one or two, or more layers extruded by our production line

PE pipe equipment performance and features:


Our company newly developed 2 or 3 layers ( even 5 layers ) spiral mould for pipe extrusion, co-extrusion layer with uniform wall thickness. The inner layer and outer layer adopts the materials with resistance, flame retardant, antistatic; The core layer using common HDPE. It could greatly reduce the material cost.



Mould and auxiliaries: the mould is adopted with the latest design of basket head and compound head. It has convenient adjustment. It adopts unique slitting process and cooling water ring system to ensure the forming precision of the tube.



It Adopts advanced PLC control system composed of large screen LCD color display, alarm system, It has complete good human-machine interface, the operation is very convenient.













PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery 0

The PE pipe makeing machine/extrusion line list



1 Automatic Vacuum Feeder and dryer 1 set
2 high efficiency Single Screw extruder 1 set
3 Co-extrusion die mould 1 set

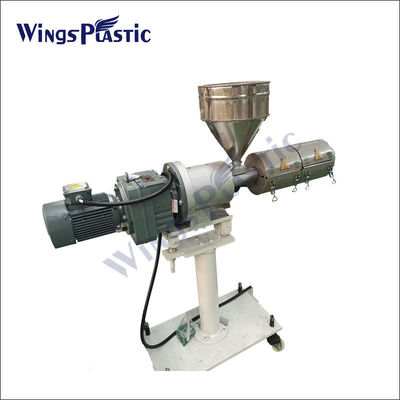

4 marking line extruder 1 set

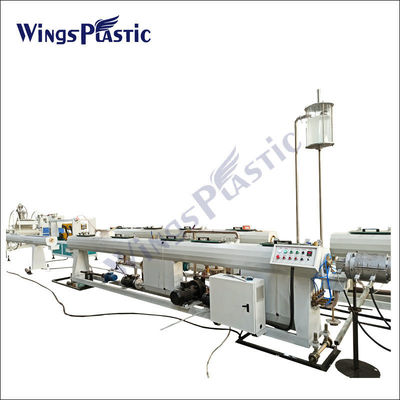

5 vacuum calibrating stand 1 set
6 spray cooling flume 1 set

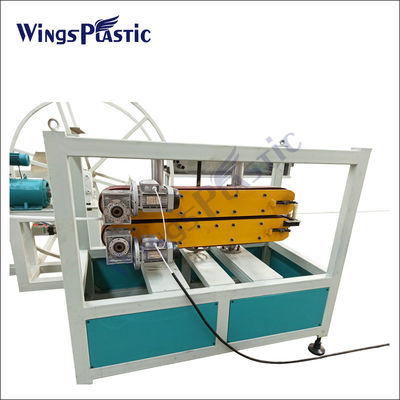

7 caterpillar pulling machine 1 set
8 planetary cutting machine 1 set
9 stacker 1 set
10 PLC (Siemens ) central control system

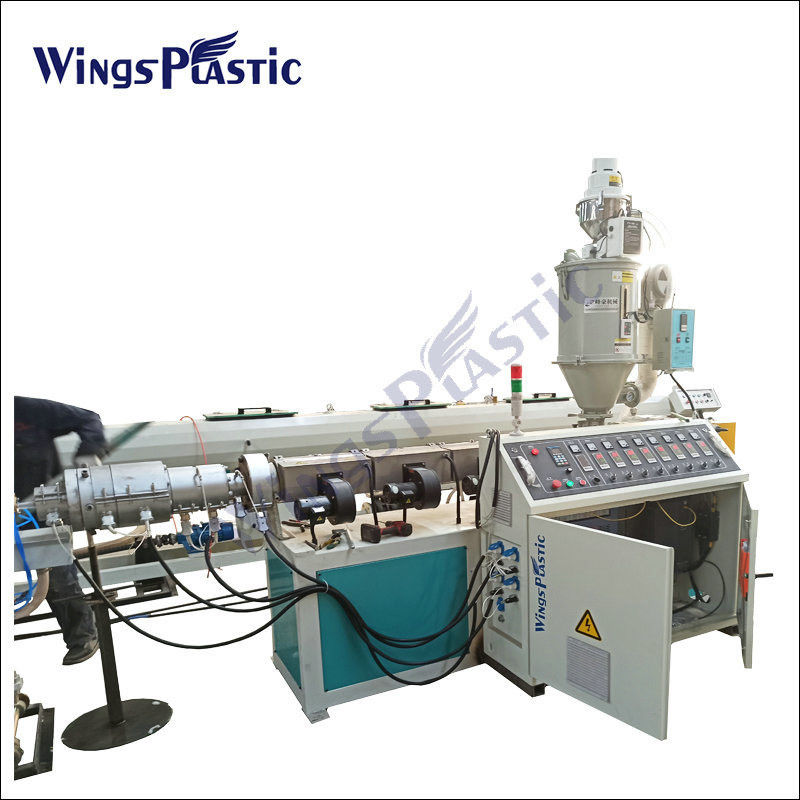

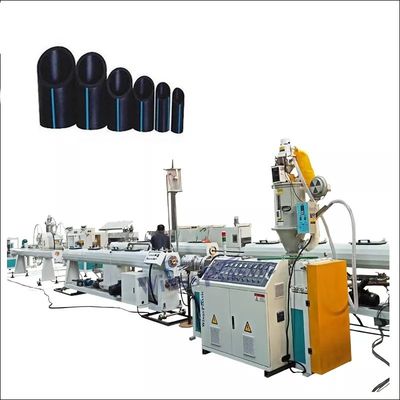

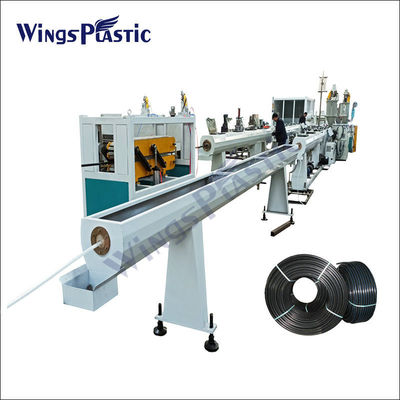

HDPE Pipe Making machine / extrusion line Pictures:







PE HDPE Pipe Making Machine Plastic PPR Water Pipe Extrusion Machinery 1
