220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine

220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine
220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine

Large Image :  220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

220kg/H HDPE Pipe Extruder Machine

,

220kg/H Plastic Pipe Manufacturing Machine

,

HDPE Plastic Pipe Manufacturing Machine

Manufacturer Factory of HDPE Pipe Production Line Extruder Machine in China



Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE plastic pipe production line, PE pipe extrusion equipment.
PE pipe extrusion production line mainly include: high efficiency single screw extruder, line extruder, the extrusion, vacuum sizing, spray water tank, printer, tractor, a chipless cutting machine, winding machine, or heap rack.

PE pipe extrusion line, PE pipe extrusion machine, PE pipe production line
PE material due to its high strength, high temperature resistant, corrosion resistant, non-toxic, wear resistance and other characteristics, widely used in water supply and drainage manufacturing.Because it will not rust, so it is an ideal pipe to replace ordinary iron pipe.
HDPE pipe production line includes extruder, pipe die head , finalize the design mould, cooling device, traction device, cutting device, such as collecting device part.Qingdao Tianxintai plastic have been at a high speed in the production of high quality steel tubes for development direction.
the technology , production speed and production stability of PE pipe which dimeter below 110 mm production is very important, Our company use special design and high quality of extrusion die head, ensure that the material in the die head can get further fully mixed with uniform melt extrusion die mold. with powerful spray cooling system, it realize high speed extrusion of small diameter HDPE pipe.

Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min

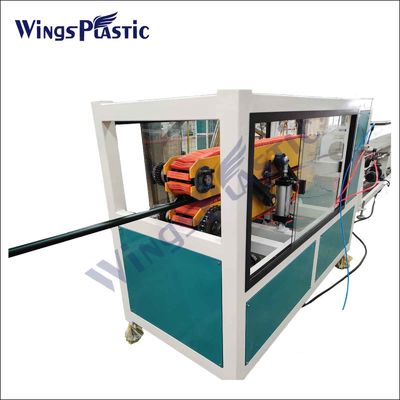

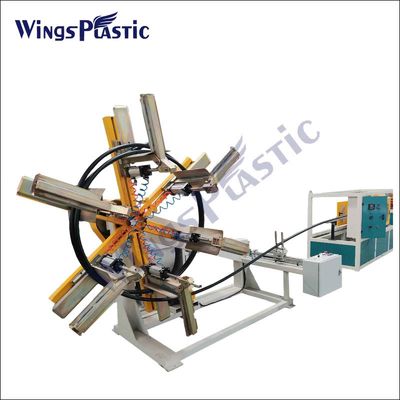

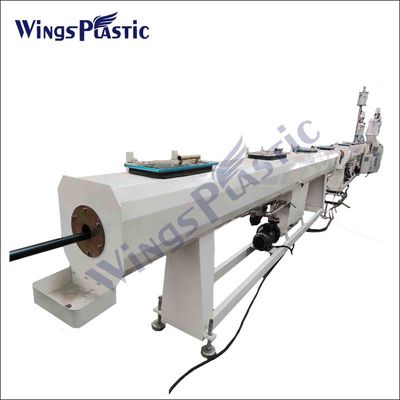

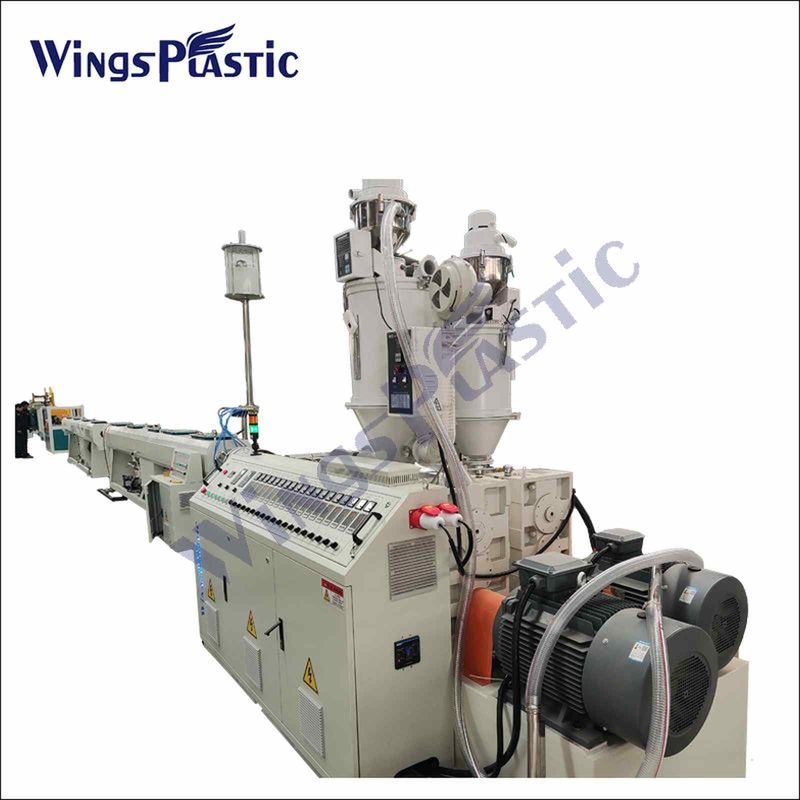

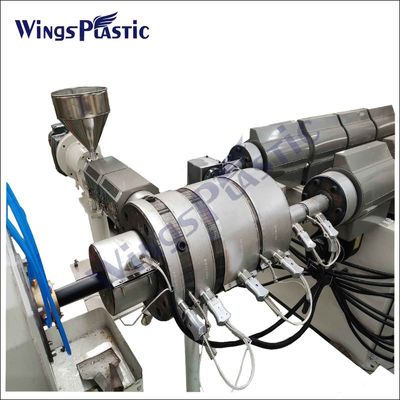

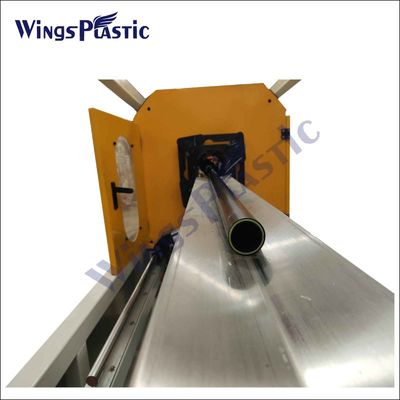

HDPE Pipe Production Line For Sale Pictures:





220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 0


220kg/H HDPE Pipe Extruder Machine HDPE Plastic Pipe Manufacturing Machine 1
