Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
Suitable Materials: | HDPE PPR LDPE LLDPE | ||
Highlight: | HDPE Water Pipe Production Line 110mm,Water Pipe Production Line 220kg/h,Hose Pipe Manufacturing Machine Extruder 110mm |

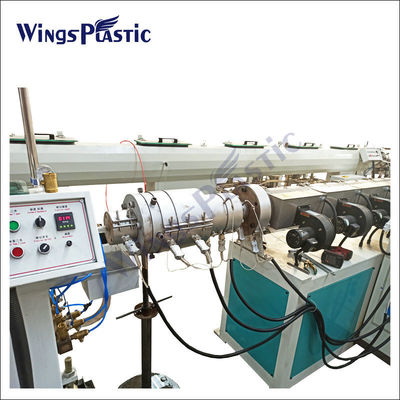

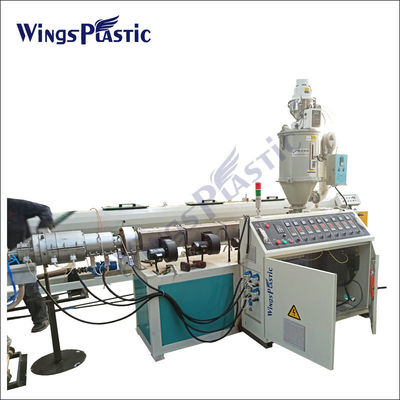

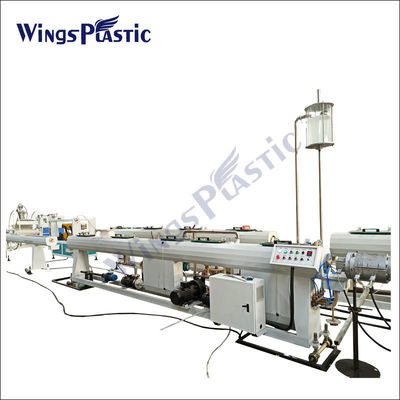

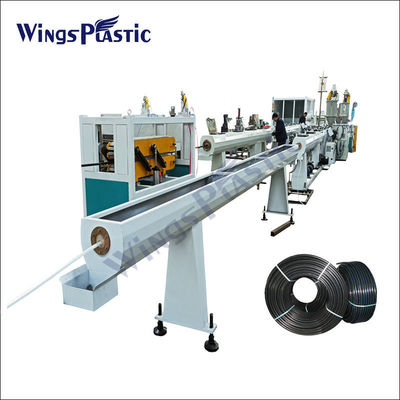

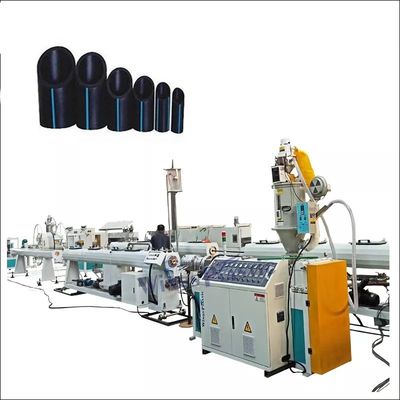

Plastic HDPE Water Supply Pipe Production Line / Extruder Machine
The extrusion line is newly developed based on European technique of new type pipe production line.
It’s suitable for PE , PP and other polyolefine pipes high-speed extrusion.
The extrusion line has many advantages, such as, nest outline , highly automatic control . stable performance.
It’s greatly reputed by the customers due to “European performance and domestic.

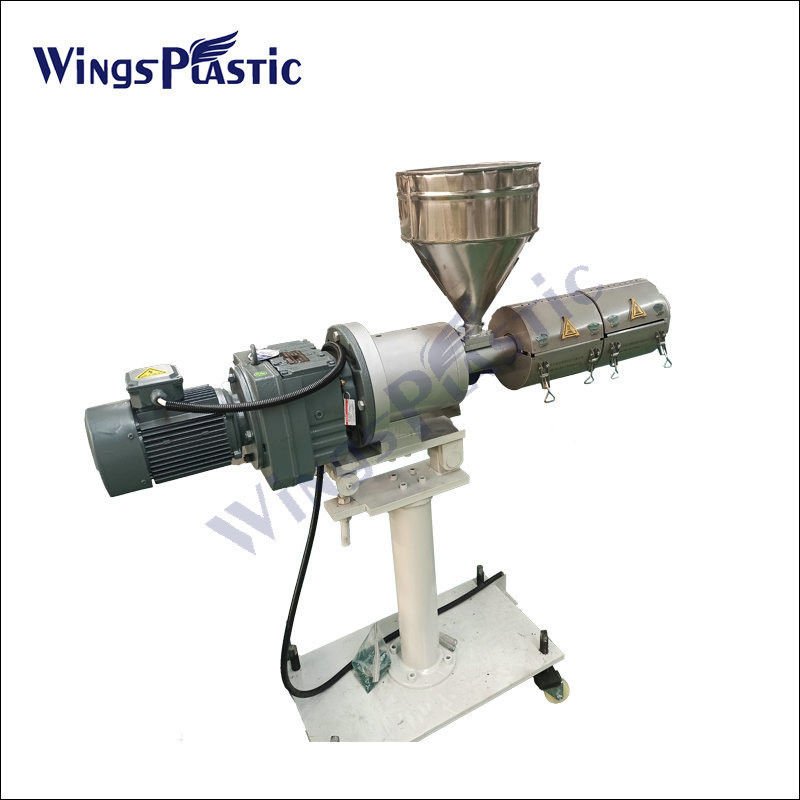

PE pipe production line contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.
Description:
Our Single screw extruder is very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet special requirement.
Characteristic:
Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
Welcome to receive your inquiry for more information about PE pipe production line!
