Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 150-220kg/h Or Customized | Pipe Diameters: | 20-110mm Or Customized |
Suitable Materials: | HDPE PPR LDPE LLDPE | ||
Highlight: | LLDPE Pvc Water Pipe Making Machine,380V HDPE Pipe Extruder Machine,HDPE Pipe Extruder Machine LLDPE |
HDPE Water Pipe Extruder Making Machinery Supplier
We are the top manufacturer for HDPE pipe machine in China, we focus on plastic pipe machine manufacturing over 20 years.

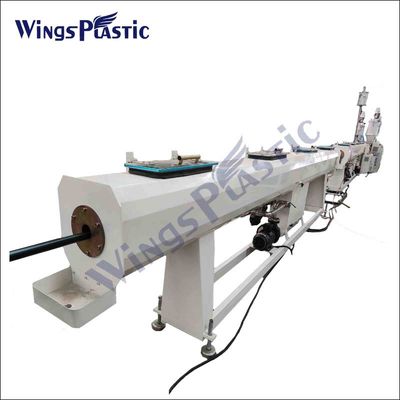

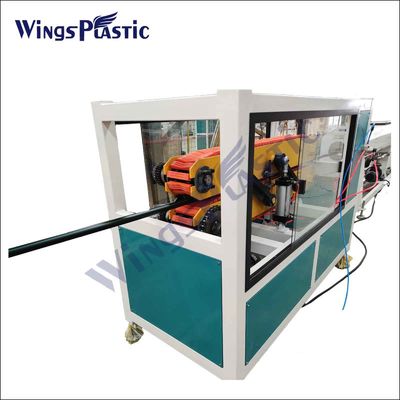

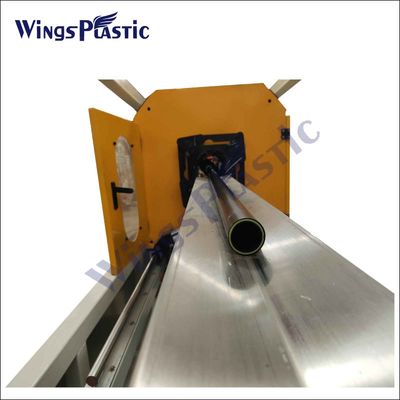

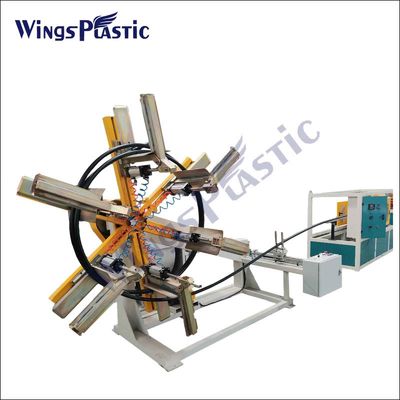

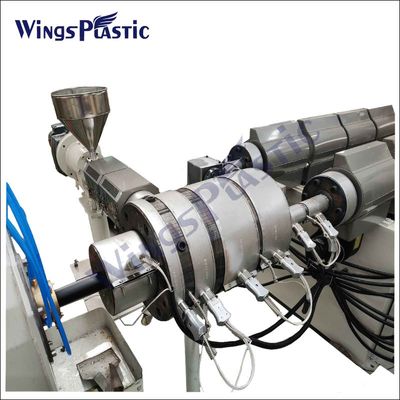

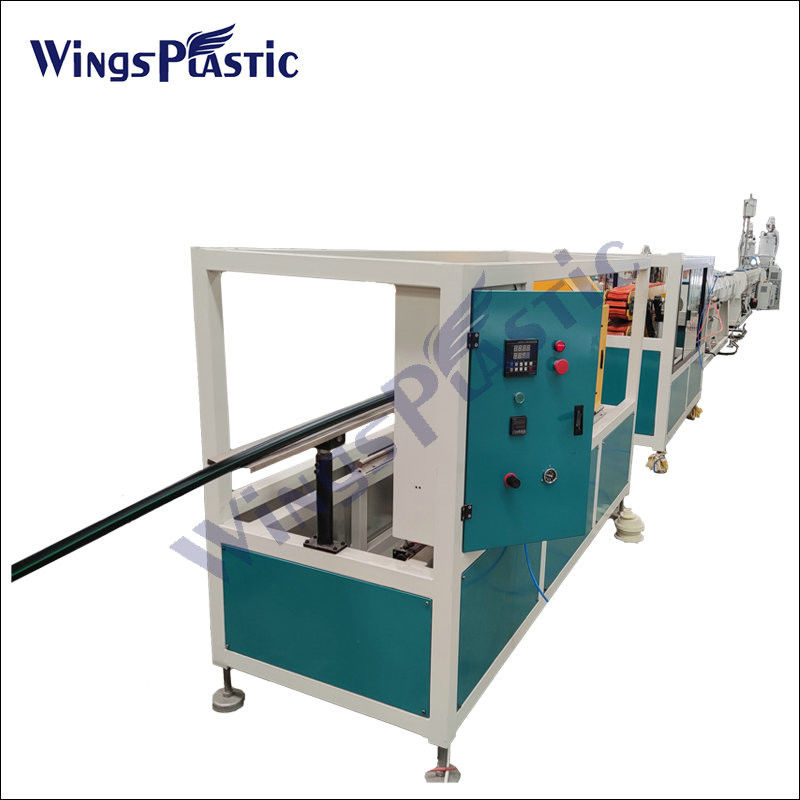

PE pipe production line contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.
Description:
Our Single screw extruder is very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet special requirement.
Characteristic:
Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
Extruder | ¢45mm | ¢60mm | ¢75mm | ¢75mm | ¢90mm | ¢90mm | ¢120mm | ¢150mm |
Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
Welcome to receive your inquiry for more information about PE pipe production line!
