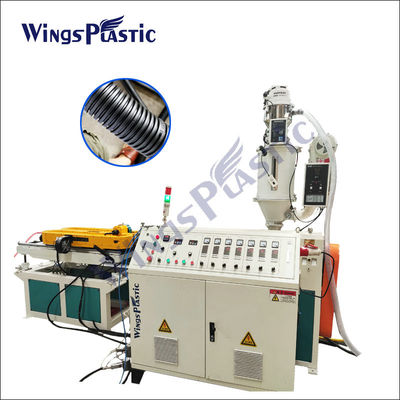

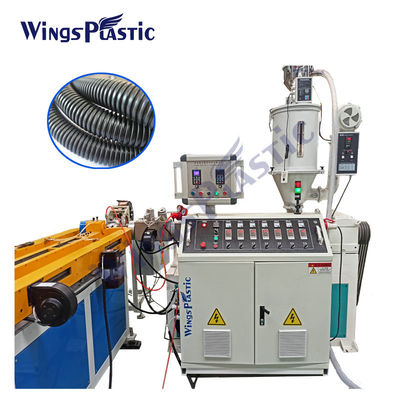

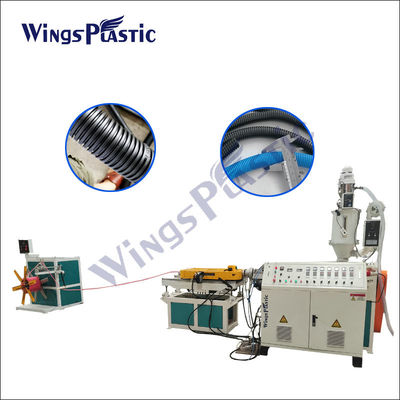

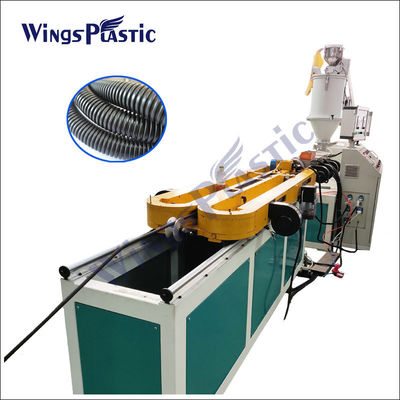

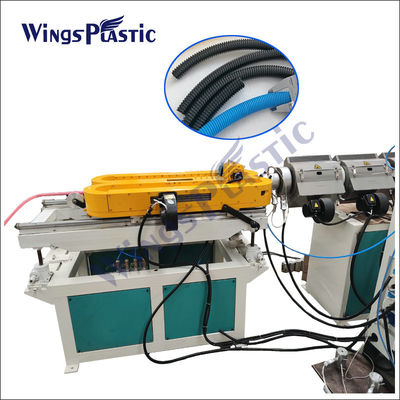

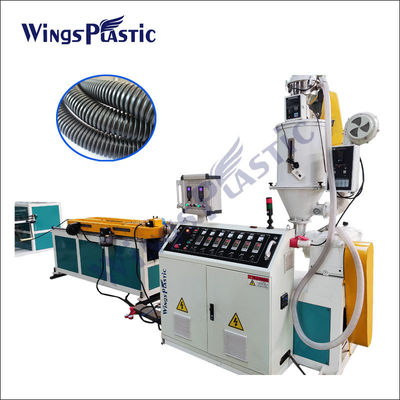

PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line

PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line
PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line
PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line

Large Image :  PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
High Light:

LDPE Plastic Pipe Extruder Machine

,

Plastic Pipe Extruder Machine

,

LDPE Single Wall Corrugated Pipe Production Line

Plastic Single - wall corrugated pipe extruder machine production line for sale in China



Single-wall corrugated pipe production line can be used to produce PE or PP, PA, PVC single wall corrugated pipe, the pipe has high temperature resistance, corrosion resistance, wear resistance, high strength characteristics.
Single-wall corrugated pipe is mainly used for electrical threading, auto threading pipe, casing pipe, tool machine products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instrumentation and other fields, large diameter single wall corrugated pipe is used for punching and water penetration.

Qingdao Wings Plastic Technology Co., LTD is specialized in PE, PP, PA, PVC single wall corrugated pipe production line .
Properties of plastic single-wall corrugated pipe production line:
It consists of extruder, head + core rod, forming + forming mould, winding machine.
Production speed varies according to the pipe diameter, 4-20 m/min.
Gear transmission, corrugated without dislocation.
Water + air cooling,timely cooling to ensure production speed, at the same time extend the service life of the mould.

Machinery Type Pipe Diameter OD Moulds Quantity Forming Speed
WS-16/54 7mm-16mm 54 Pairs 15m/min
WS-38/44 12mm-38mm 44 Pairs 15m/min
WS-38/72 12mm-38mm 72 Pairs 20m/min
WS-38/81 12mm-38mm 81 Pairs 30m/min
WS-52/60 16mm-52mm 60 Pairs 20m/min
WS-75/60 30mm-75mm 60 Pairs 15m/min
WS-110/60 50mm-110mm 60 Pairs 10m/min


PE PP PVC PA Plastic Pipe Extruder Machine Single Wall Corrugated Pipe Production Line 0
