Nylon PE Pvc PP Pipe Extrusion Machine Automatic Threading Tube Extrusion Machine

Plastic Automatic pipe threading machine corrugation Extruder pipe manufacture machinery

Single-walled high-speed machine ,module replacement is convenient, the production speed, high efficiency, stable performance can be high, steel tubes are of good quality and beautiful appearance.

Automatic pipe threading machine corrugation pipe manufacture machinery can be used to produce single-wall or one wall corrugated pipe of PE,PP,PVC,EVA continuously, as well as PA corrugated pipes.

Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc. They are widely using in many fields, such as auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes if air condutioner and washing machine,etc...

Molding corrugation pipe with smooth inside and outside surface,and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe,dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.

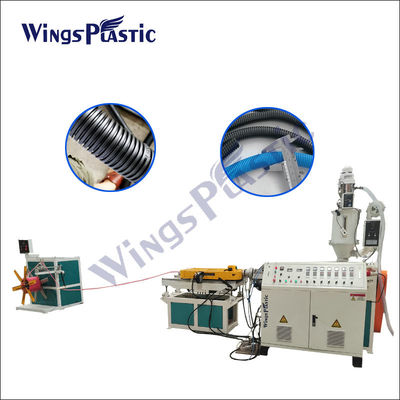

Introduction of automatic pipe threading machine corrugation pipe manufacture machinery

We developed the mahcine on the basis of traditional structure, we could produce the corrugated pipe with 20m/min.

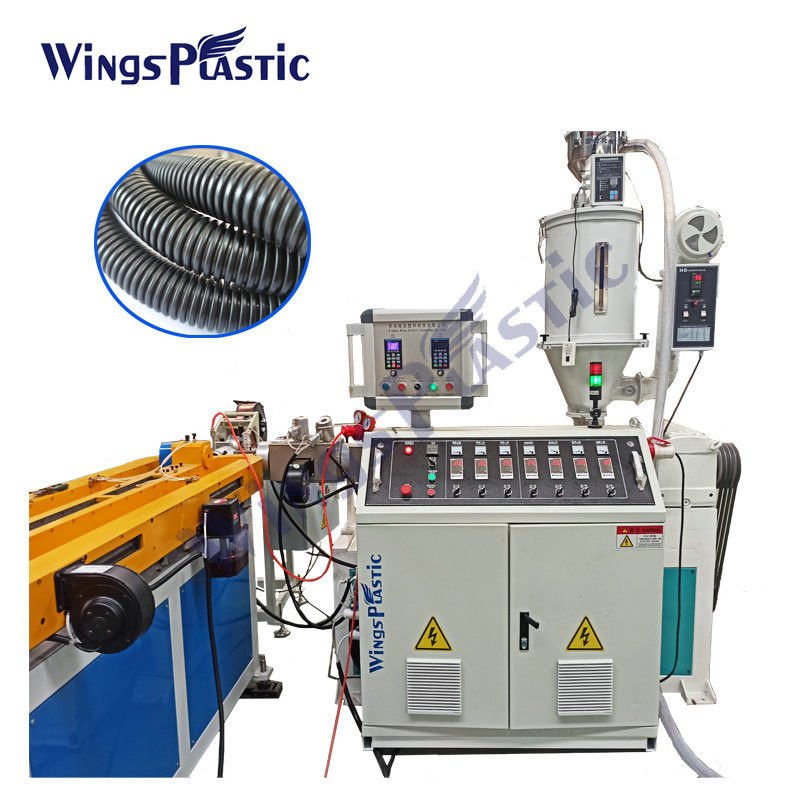

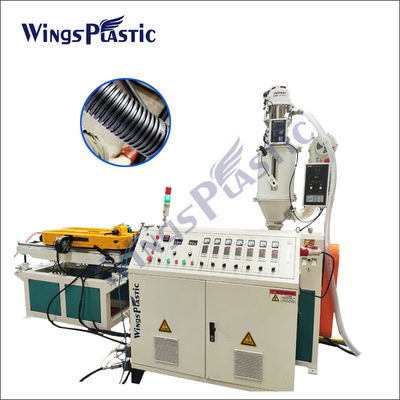

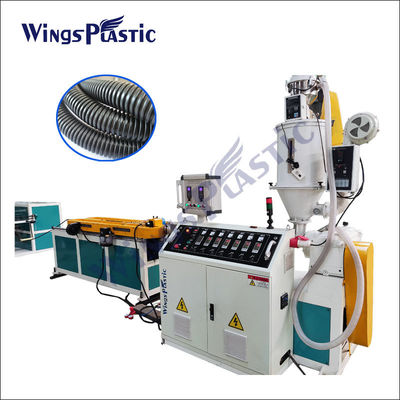

1. Single screw extruder, model of extruder depends on the pipe diameter and output capacity request.

2. Die head.

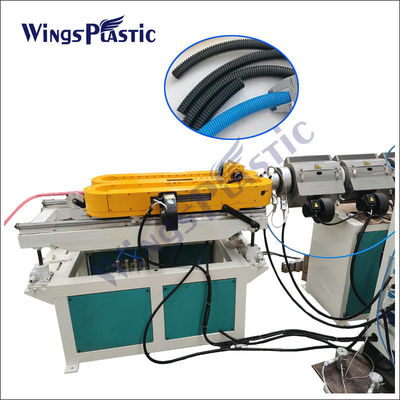

3. Forming machine. The corrugated pipe is formed by two groups of calibration mould block. The pipe is cooling by fan and water.

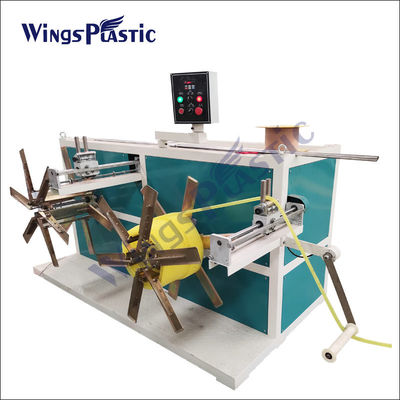

4. Winder. Two position winder or single position winder.

Plastic prestressed pipe corrugated pipe threaded pipe making machine informations:
