Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
Suitable Materials: | HDPE LDPE EVA PVC PA | ||
High Light: | HDPE Pipe Extruder Machine PVC,CE ISO HDPE Pipe Extruder Machine,Single Wall Corrugated Pipe Line 40kg/h |
CE & ISO PVC single wall corrugated pipe machine production line
Single wall corrugated pipe production line, plastic corrugated pipe extrusion machine
Plastic corrugated pipe market is full of huge business opportunities, after nearly 30 years, the equipment, molding technology, craft, special materials, etc, have been rapidly.For PVC PP PE PA MPP materials were made with single wall corrugated is simple, low cost, can withstand the pressure, scalable, flexible, widely used in automotive wiring harness, electronic, mechanical wiring harness, and other fields, has replaced the original PVC and metal sheathing products, become a versatile harness sheathing products on the market.
Qingdao Wings plastic technology co., LTD., specializing in the production of single-wall corrugated pipe extrusion machine, molding machine internal forcing water cooling pipe molding speed;Cocker spaniels slot module to speed up the module replacement, one minute can complete a pair of small size module replacement;All specifications module center high same, speed up change specifications after reproduction of time interval;Module path of perfect optimization module to run more smoothly, reducing impact;Internal cooling waterway with fixed connection, replace the module without having to remove the interface, to eliminate leakage accident;Double hydraulic pressure, double head cutting machine realize automatic cutting, conveying.

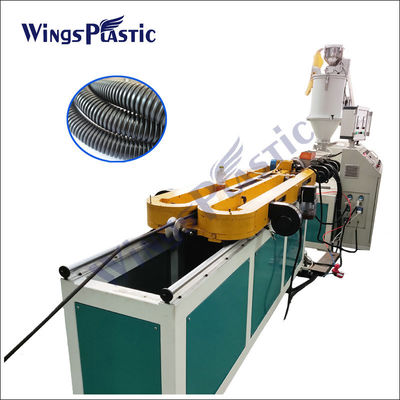

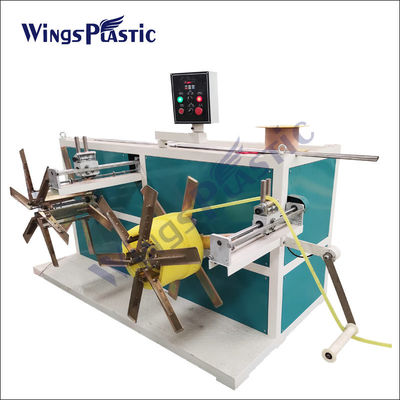

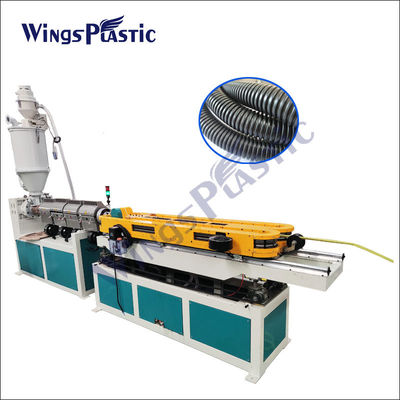

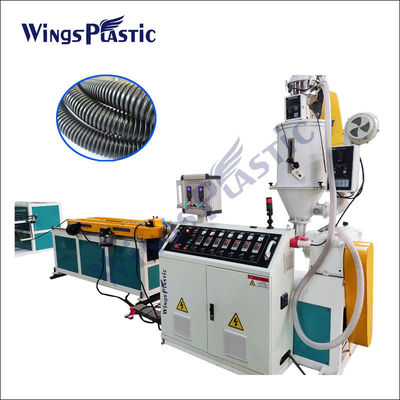

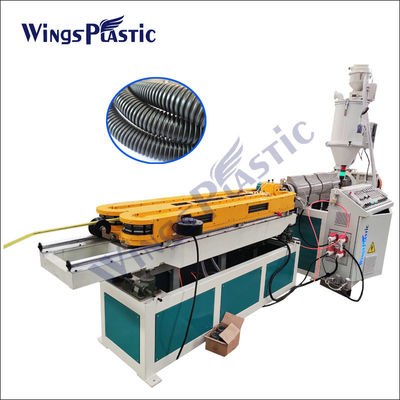

It consists of Extruder, Mold Blocks, Corrugated Forming Machine, Cooling Equipment, Counting Machine and Auto winding system. It can continuously produce many kinds of diameter single wall corrugated pipe in high speed.
Material-1: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material-2: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
PE / PP / PVC Single Wall Corrugated Pipe Extrusion Line shall be used to produce small diameter single wall corrugation pipe in PVC.
Molding corrugation pipe with smooth inside and outside surface, and even ripple at one time by corresponding die; Used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe and ventiduct; Small size corrugation pipe of 4-6.7 are used in car.
Characteristics and advantages:
1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

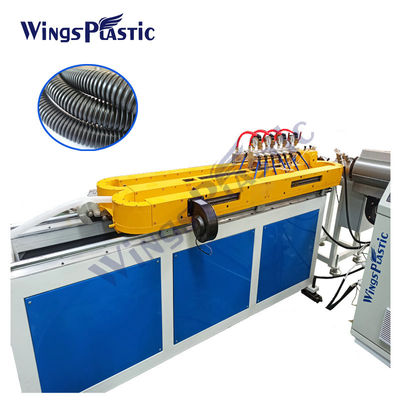

2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .
Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.
Process flow:
Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing
This plastic corrugated pipe line equips with high quality machines in the whole line, with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.
Line Model | Extruder model | Production scope | Output | Total Power | Production speed |
PE-40 | SJ-45/30 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
PE-63 | SJ-65/30 | Φ12-63mm | 80kg/h | 30KW | 6-10m/min |
PA-40 | SJ-45/28 | Φ6-40mm | 60kg/h | 25KW | 6-10m/min |
PVC-50 | SJ51/105 | Φ16-50mm | 100kg/h | 27KW | 6-10m/min |
