PP PVC HDPE Plastic Pipe Extrusion Line Corrugated Pvc Pipe Making Plant

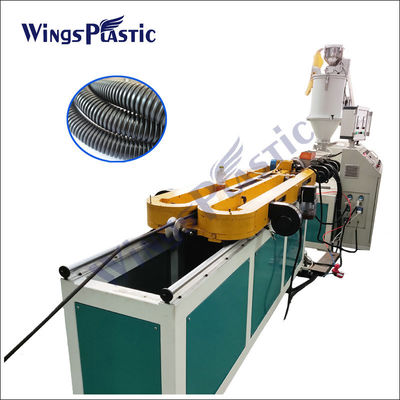

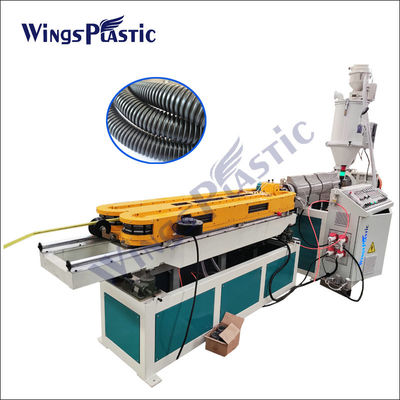

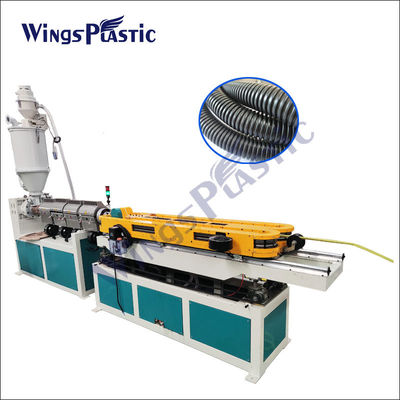

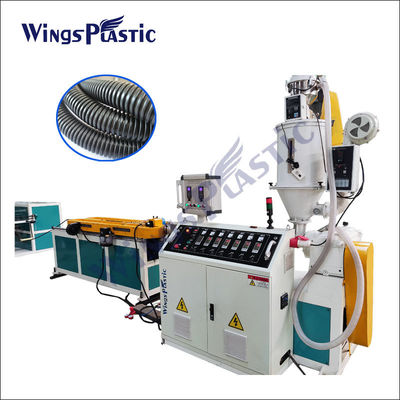

HDPE PP PVC corrugated pipe extruder machine production line

Single-walled high-speed machine: module replacement is convenient, the production speed, high efficiency, stable performance can be high, steel tubes are of good quality and beautiful appearance.
Application: the equipment produces single-wall corrugated pipe, high temperature resistance, corrosion resistance, wear resistance, high strength.Used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, drainage, and other fields, the market demand is very big.
Performance and advantages: special screw, solve the screw barrel, the difficulty of easy to wear and material forming.Die structure design is reasonable, convenient and reliable mould replacement.Molding machine adopts rail type running structure, shandong corrugated pipe equipment, special design of rail track for each pair of module in forming channel running very smooth and accurate registration, make the tube formed by clamping mould clamping line very light and not easy to see that beautiful in favour of pipes.Cooling template series water cooling and air cooling, cooling water circulation in the molding machine fast flow, threading corrugated pipe equipment, effectively speed up the cooling speed of steel tubes, thus greatly improve the tubing production speed.Machine at the same time frame adopts modular design, modular design we can use the same base frame designed according to the requirements of different lengths of molding machine, molding production the faster the longer the period of production is higher, fully meet the requirements of different customers for molding machine production.

PE / PVC Single wall Corrugated Pipe Extrusion Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity / pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .

Characteristics and advantages:

1. Special structure design of screw and dies and convenience in changing mould blocks solve the problem of easy-worn of screw and barral ,as well as the difficulty in forming of plastic resin .

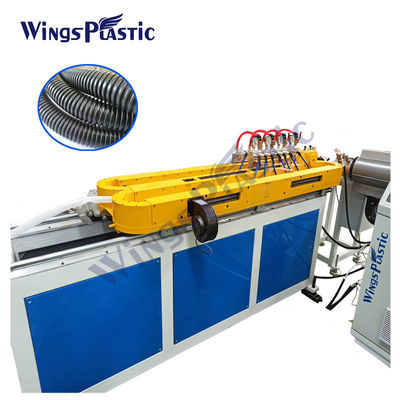

2. Corrugator adopts closed water cooling structure ,closed forming blocks chain ,and special design of rail, which will make all blocks matching correctly ,running stablely . You even couldn’t see the connecting line on the surface of pipe . Cooling water is cycling inside the corrugator ,it will make the cooling speed fast, so the production speed of pipe will be raised highly .

Meanwhile ,the corrugator adopts building blocks design , we can use same basis structure but different forming length of corrugator . The longer forming length of corrugator , the more output of pipe . We can make different forming length corrugator according to different cusotmers’ needs.

Process flow:

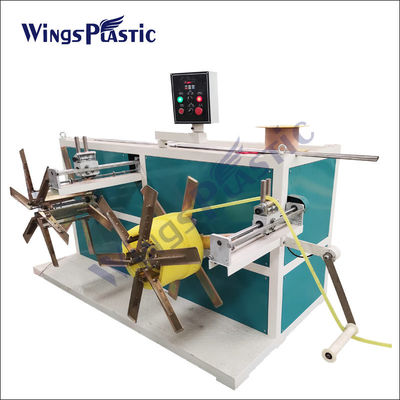

Raw material + master batches → mixing → vacuum feeding → material dryness → single screw extruder → extrusion mould → corrugation forming machine → meter measurer→ double winder → finished product inspecting & packing

This plastic corrugated pipe line equips with high quality machines in the whole line, with good equipments, the plastic corrugated pipe line can produce pipes stable and fast. Also all these machines share a ling service life which reduces buyer's cost.
