Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Single Wall HDPE Pipe Extruder Machine LDPE Corrugated Pipe Production Line

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 40-80kg/h Or Customized Pipe Diameters: 10-50mm Or Customized
Suitable Materials: HDPE LDPE EVA PVC PA
Highlight:

Single Wall HDPE Pipe Extruder Machine

,

HDPE Pipe Extruder Machine LDPE

,

LDPE Corrugated Pipe Production Line

single wall HDPE corrugated pipe line plastic extruder machine

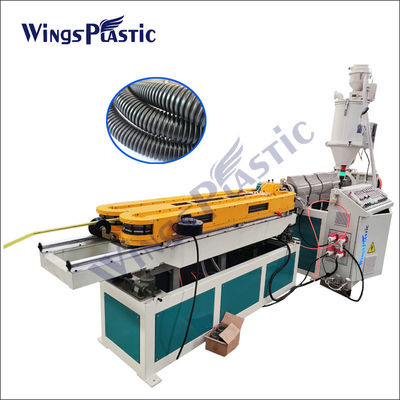

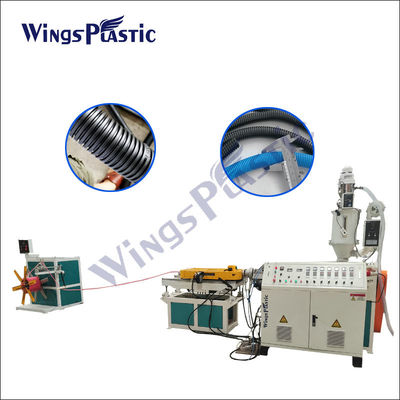

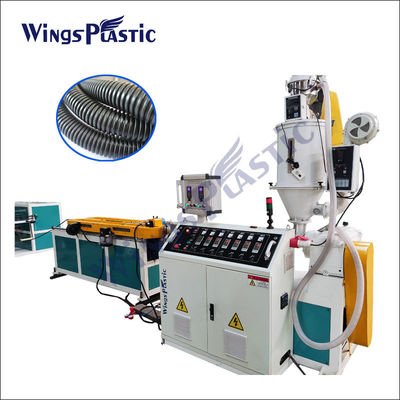

The unit type and SJ65 or SJ45 single-screw extruder, corrugated pipe forming machine, tube tire mold, air cooling device, counter, reel, can continuous extrusion molding various specifications of PVC, LDPE, HDPE, PP, PA corrugated pipe, etc.
PP/PE/PVC single wall corrugated pipe production line can be continuous production such as PE, PP, EVA, PVC corrugated pipe, also can produce PA bellows.Plastic single-wall corrugated pipe with high temperature resistance, corrosion resistance, wear resistance, high strength, good flexibility, etc.Widely used in automotive wiring harness, electrical threading protect casing, machine lines, lines of lamps and lanterns, air-conditioner, washing machine hose, etc.

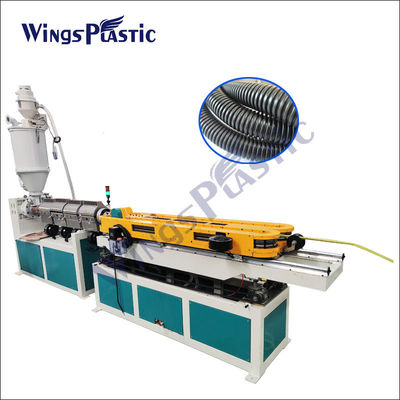

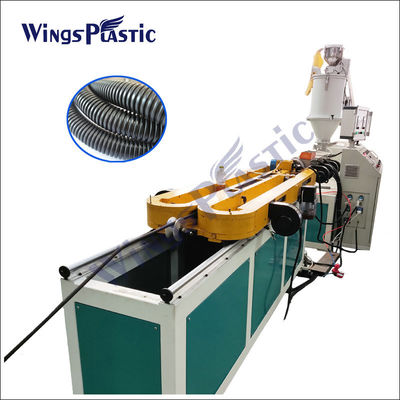

1.Adopts High speed Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.

2. Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

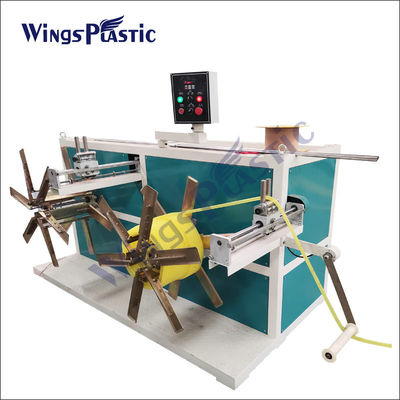

3. Coiler :Single position or double position with torque motor.

4. Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.

Process Flow:

Raw material(PP/PE granule)→plastic extruder→die→forming machine→winder→Finished Product

Line Model Extruder model Production scope Output Total Power Production speed
PE-40 SJ-45/30 Φ6-40mm 60kg/h 25KW 6-10m/min
PE-63 SJ-65/30 Φ12-63mm 80kg/h 30KW 6-10m/min
PA-40 SJ-45/28 Φ6-40mm 60kg/h 25KW 6-10m/min
PVC-50 SJ51/105 Φ16-50mm 100kg/h 27KW 6-10m/min
