Product Details:
|
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||
| High Light: | HDPE Electric Pipe Making Machine 50HZ,45mm Single Wall Corrugated Pipe Machine,50HZ Single Wall Corrugated Pipe Machine |
||

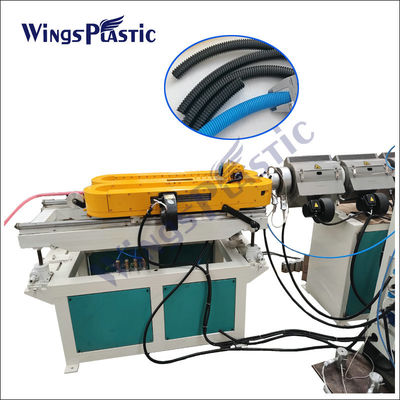

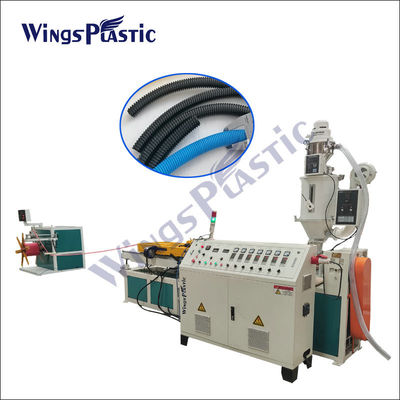

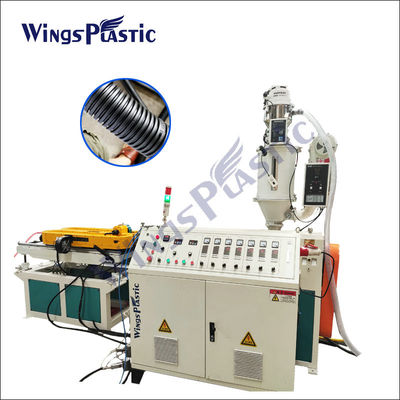

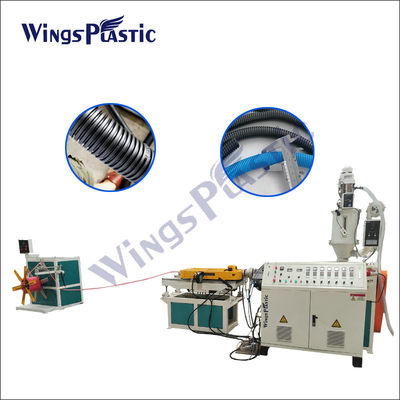

HDPE PVC PP single wall corrugated pipe extruder machine
We are the professional manufacturer for plastic corrugator pipe machine, 20m/min high speed, have many ready lines in our factory.
The pipe owns many features of anti-high temperature, anti-corrosion, wearable, high strength and good tenancy etc.
Feactures and Application
1.The line shall be used to produce small diameter single wall corrugated pipe in PE PP PVC raw material.
2.Molding corrugated pipe with smooth inside and outside surface, and even ripple at one time by corresponding pipe.
3.Used as electricity pie,washing mchine drain drain pipe, dust collector pipe ad ventiduct, ect.
4.Small size corrugated pipe of Φ 4- Φ 6.7(mm) are used in car.
| Extruder | SJ 30/25 | SJ 45/33 | SJ 65/30 | SJ 65/33 |
| Main motor power | 5.5kw | 11-18.5kw | 30-45kw | 55kw |
| Molding | 52pairs | 45-72pairs | 50-72pairs | 55pairs |
| Pipe diameter | 4-17mm | 10-35mm | 40-110mm | 72-200mm |
| Speed | 5-15m/min | 15-20m/min | 10-20m/min | 3-15m/min |
| Output | 15kg/h | 60-100kg/h | 100-150kg/h | 100-180kg/h |
