Product Details:
|
Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
---|---|---|---|
Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized |
Suitable Materials: | HDPE LDPE EVA PVC PA | ||
Highlight: | 40kg/H HDPE Pipe Extruder Machine,HDPE Pipe Extruder Machine PP PVC,40kg/H Wiring Pipe Making Machine |

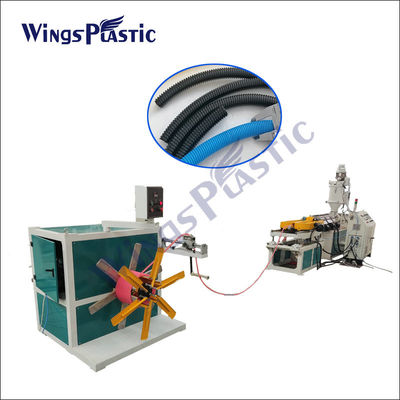

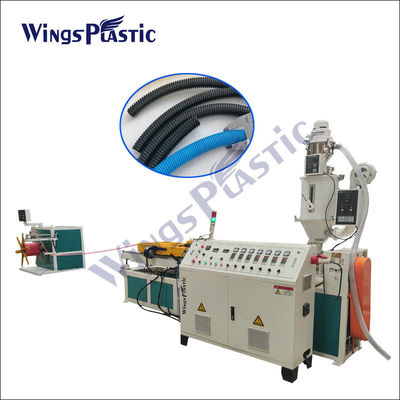

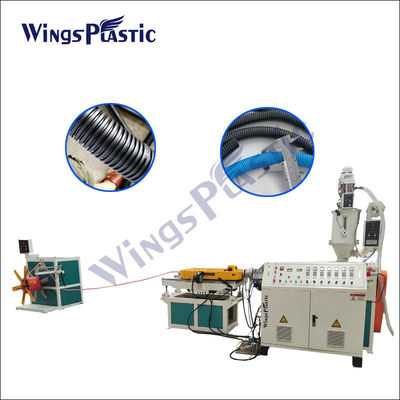

HDPE / PP / PVC Single Wall Pulling Wire Corrugated Pipe Extruder Machine
Corrugated pipe extrusion line, plastic corrugated pipe production line, corrugated pipe extrusion machine, plastic corrugated pipe production line machine.
Production Description

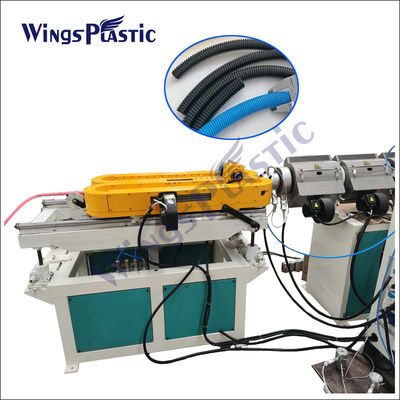

High speed corrugator , max could be 20m/min
Close type corrugater and vacuum for forming.
Forming mould is moving in a tunnel.
Forming mould is made of hard alloy steel and anti-corrosion and abrasion.
No any connection between forming mould, then reduce time to change.
Provide single wall corrugation die head
Appliation: PE/ PVC Single wall Corrugated Pipe Extrusion Line can produce pipe with heating-proof , corrosion-proof, friction-proof and high strength . And the pipe will be used in electricity / pneumatic wire conduit , Auto wire conduit , protection conduit , machine tools , electric locomative, projections installation , lights, automatic tools and other fields . It is a big market demand .

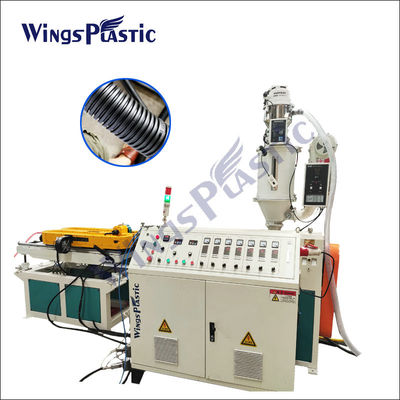

Extruder | SJ 30/25 | SJ 45/33 | SJ 65/30 | SJ 65/33 |
Main motor power | 5.5kw | 11-18.5kw | 30-45kw | 55kw |
Molding | 52pairs | 45-72pairs | 50-72pairs | 55pairs |
Pipe diameter | 4-17mm | 10-35mm | 40-110mm | 72-200mm |
Speed | 5-15m/min | 15-20m/min | 10-20m/min | 3-15m/min |
Output | 15kg/h | 60-100kg/h | 100-150kg/h | 100-180kg/h |
