EVA LLDPE Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

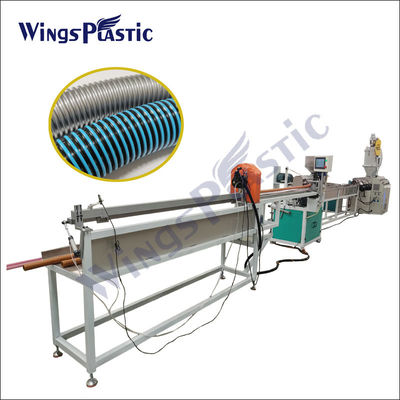

EVA LLDPE Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose

EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose
EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose

Large Image :  EVA LLDPE Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: WINGS PLASTIC
Certification: CE
Model Number: SJ65/30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union

EVA LLDPE Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose

Description
Capacity: 80KG/H Or Customized Control System: PLC Control
Cooling Method: Air Cooling/Water Cooling Heating Power: Customized
Material: EVA LLDPE Motor Power: Customized
Screw Diameter: 65MM Screw L/D Ratio: 30:1
Speed: 1-5M/MIN Voltage: 380v
Pipe Diameter: 30-70mm Or Customized

EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line

EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose 0

Quick Detail:



1. Hose diameter from 32 to 50mm.

2. Made by EVA, glue .spiral shape

3. As EVA vacuum cleaner pipe for family and industrial vacuum cleaners

4. Antistatic option is available

5. Highly flexible



Description:


Vacuum cleaner EVA hose making machine


Adopting two single screw extruders for processing PE/EVA adhesive material. One extruder makes hose profile , and the other extruder use to extruder adhesive. There is a forming wheel (mould) form the hose profile and the adhesive into the hose, and the hose moving forward synchronously. In the following technical data, only the recommended standard data, the extruder type can be change according to buyers different requirements on extruding

The eva vacuum cleaner hose extrusion line equipment list:

Automatic feeding system1set
Single screw extruder for hose1set
Single screw extruder for glue1set
Die head for eva profile1set
Eva hose forming system1set
Water cooling tank1set
Cutter machine1set
Stacker1set
Crusher1set
Materials mixer1set
Electric control system1set



EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose 1

Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.

We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.

EVA LLDPE  Winding Corrugated Pipe Making Machine EVA Spiral Winding Pipe Production Line For Vacuum Cleaner Hose 2
