Product Details:
|
| Capacity: | 80KG/H Or Customized | Control System: | PLC Control |
|---|---|---|---|
| Cooling Method: | Air Cooling/Water Cooling | Heating Power: | Customized |
| Material: | EVA LLDPE | Motor Power: | Customized |
| Screw Diameter: | 65MM | Screw L/D Ratio: | 30:1 |
| Speed: | 1-5M/MIN | Voltage: | 380v |
| Pipe Diameter: | 30-70mm Or Customized |
PLC Control Automation EVA Corrugated Hose Vacuum Cleaner Hose Extrusion Equipment
Quick Detail:
1. Hose diameter from 32 to 50mm.
2. Made by EVA, glue .spiral shape
3. As EVA vacuum cleaner pipe for family and industrial vacuum cleaners
4. Antistatic option is available
5. Highly flexible
Description:
Vacuum cleaner EVA hose making machine

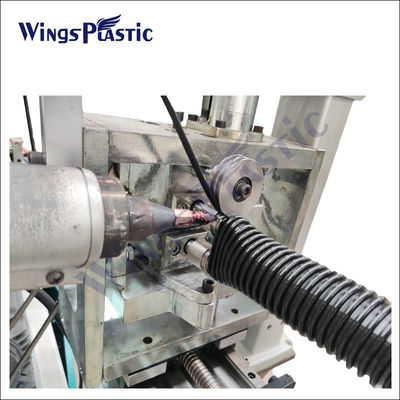

Adopting two single screw extruders for processing PE/EVA adhesive material. One extruder makes hose profile , and the other extruder use to extruder adhesive. There is a forming wheel (mould) form the hose profile and the adhesive into the hose, and the hose moving forward synchronously. In the following technical data, only the recommended standard data, the extruder type can be change according to buyers different requirements on extruding
The eva vacuum cleaner hose extrusion line equipment list:
| Automatic feeding system | 1set |
| Single screw extruder for hose | 1set |
| Single screw extruder for glue | 1set |
| Die head for eva profile | 1set |
| Eva hose forming system | 1set |
| Water cooling tank | 1set |
| Cutter machine | 1set |
| Stacker | 1set |
| Crusher | 1set |
| Materials mixer | 1set |
| Electric control system | 1set |
Qingdao Wings Plastic Technology Co., Ltd is located in Qingdao Jiaozhou City. Advocating the spirit of exploitation and enterprising, we are in pursuit of excellent and have become the specialized supplier of manufacturing, designing and developing the plastic pipe extrusion machines.
We own the highquality staff and management supervisors and our company has entirely impelled the ISO9001:2000 quality management system.With the professional technicians and designers, we can design and produce different specification extruder production line with the feature of high capacity, low cost and the most competitive in the market according to the client’s demand.
