PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness

PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness

Large Image :  PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness

Description
Main Motor Power: 420kw Model No: SJ100/30
Key Selling Points: Automatic Motor: Siemens
Control System: PLC Control Raw Material: PVC Powder
Screw Design: Single-screw Carpet Thickness: 10-19mm
High Light:

19mm Coil Mat Making Machine

,

PLC Coil Mat Making Machine

,

Mat Making Machine SJ100/30

Product Description:

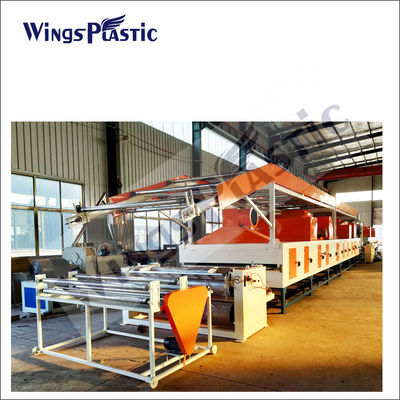

PVC Double Color Coil Mat Production Equipment Of Model No SJ100/30 And 10-19mm Thickness

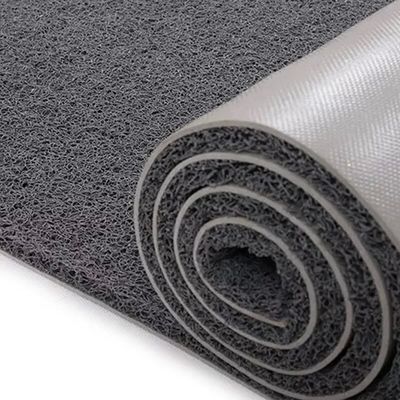

PVC coil mat is very hot sale in China market, popular used as floor door mat, car mat, hotel floor mat and so on.
The coil mat advantages:
waterproof, dustproof, Eco-friendly, Anti-static, Flame retardance, Corrosion resistant, Wear and tear resistant.
The PVC coil mat machinery is our main product, over 100 lines experience. We have the main machinery market in China, the top quality and technology in Asian. Chinese customers like 3G mat, 3A mat, Yuma mat, India customers like Time technoplast, all of them are big factory in their mat feild.

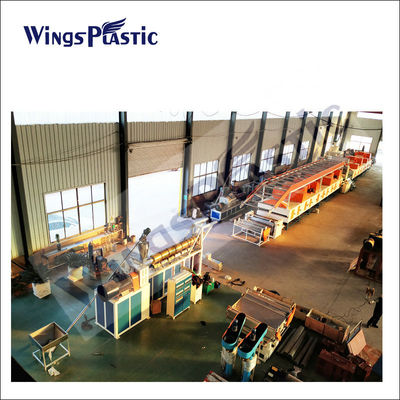

PVC Coil Mat Production Equipment represents a technological marvel designed for the efficient manufacturing of high-quality PVC spray coil mats. This production line seamlessly combines precision engineering with advanced processes to deliver durable and aesthetically pleasing coil mats for various applications.




PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 0
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 1

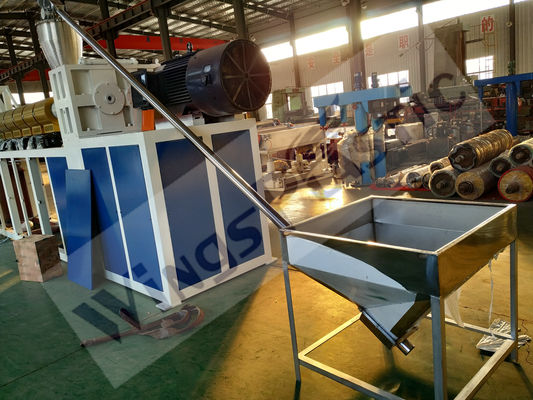

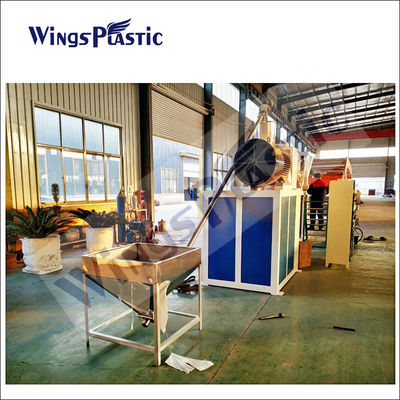

High Quality Extruder Machine

Mainly two colors will use 100/30 extruder, single color will use 120/30 extruder.
The extruder using the special designed single screw making the product foaming well.Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940. The extruder fixed with filter
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 2

Extrusion die

It is made by specially import moulds materials, 15 years experience design for materials flow.
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 3

Forming water tank

The water tank is strong and durable, and the special design forming machine has no vibration when working, which is more conducive to coil forming

PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 4

First heating oven

The oven is the most important part for the production, it controls the finished product quality.
Qingdao Wings Plastic Technology Co.,Ltd created a high quality Insulation and air distribution system to ensure there is good energy conservation and product forming quality.
The oven length could be 6m, 8m,10m according different product.
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 5

Glue unit

It evenly flows the glue into the silk ring material and presses out the excess glue
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 6

Second oven

The oven is the most important part for the production, it controls the finished product quality.
Qingdao Wings Plastic Technology Co.,Ltd created a high quality Insulation and air distribution system to ensure there is good energy conservation and product forming quality.
The oven length could be 6m, 8m,10m according different product.
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 7

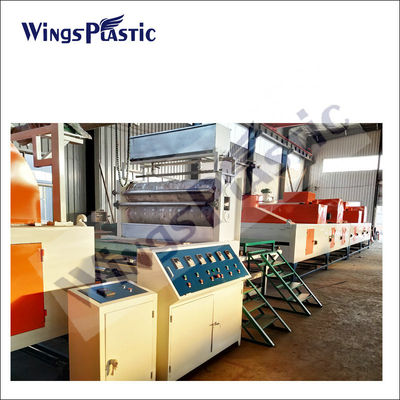

Electric control unit

Inverter brand:ABB/Delta
Button Brand: CHNT/Scheider
Contactor: Siemens
Swicth BrandL CHNT/Scheider
Temperature Controller: Omron/RKC
PLC Brand: Siemens
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 8

Glue unit

Included foaming tank, vacuum syste



Features:

  • Product Name: Plastic Mat Making Machine
  • Carpet Thickness: 10-19mm
  • Raw Material: PVC Powder
  • Mat Width: 500-2400mm
  • Model No: SJ100/30
  • Material: PVC Powder And Additive
  • Keyword: PVC Calendering Mat Machine
  • Keyword: PVC Coil Loop Mat Extruder Machine


Technical Parameters:

Parameter Details
Material PVC powder and additive
Motor Siemens
Control System PLC Control
Screw Design Single-screw
Model No. SJ100/30
Carpet Thickness 10-19mm
Main Motor Power 420kw
Key Selling Points Automatic
Mat Width 500-2400mm
Raw Material PVC powder
Product Name PVC coil mat making machine, PVC calendering mat machine, PVC coil loop mat extruder machine


Applications:

The Wings Plastic SJ90/33 is a state-of-the-art plastic mat making machine designed for the production of car feet carpet mats. It is made in Qingdao, China, with a single-screw design, mat width of 500-2400mm, and motor from Siemens. It is capable of making mats with thickness of 10-19mm, using PVC powder as raw material. It is an ideal choice for the production of plastic car feet carpet mats and PVC double color coil mats. This machine is easy to use, efficient, and reliable, making it perfect for plastics production factories. It is also durable and cost-effective, ensuring that you get the most out of your investment. With its powerful performance, you can be sure that you will be able to create the perfect plastic mats for your needs.



Support and Services:

Technical Support and Services for Plastic Mat Making Machine
  • 24/7 customer support
  • On-site installation and setup
  • Troubleshooting & maintenance services
  • Operator training
  • Upgrades and repairs
  • Spare parts supply


Packing and Shipping:

Packaging and Shipping for Plastic Mat Making Machine:

The Plastic Mat Making Machine will be packaged in a wooden box reinforced with metal straps to ensure it remains secure during transit.

The box will be labeled with the product name, the weight, and the shipping address. Once the package is ready, it will be shipped by air or land, or sea, depending on the destination.

```

FAQ:

Q: What is the Brand Name of this Plastic Mat Making Machine?
A: The Brand Name is Wings Plastic.
Q: What is the Model Number of this Plastic Mat Making Machine?
A: The Model Number is SJ90/33.
Q: Where is this Plastic Mat Making Machine manufactured?
A: This Plastic Mat Making Machine is manufactured in Qingdao China.
Q: What are the features of this Plastic Mat Making Machine?
A: This Plastic Mat Making Machine is designed with a highly efficient control system, a low maintenance cost and a long service life.
Q: Does this Plastic Mat Making Machine have a warranty?
A: Yes, this Plastic Mat Making Machine has a one-year warranty.
PVC Double Color Coil Mat Making Machine Model No SJ100/30 10-19mm Thickness 9
