Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production

Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production

Large Image :  Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ90/33

Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production

Description
Key Selling Points: Automatic Mat Width: 500-2400mm
Raw Material: PVC Powder Material: PVC Powder And Additive
Control System: PLC Control Carpet Thickness: 10-19mm
Motor: Siemens Main Motor Power: 420kw
High Light:

Siemens Motor Mat Making Machine

,

PVC Powder Mat Making Machine

,

PLC Plastic Mat Making Machine

Product Description:

Plastic Mat Making Machine Using Siemens Motor For PVC Powder And Additive Production

This PVC coil mat making machine is a high-tech product which is specially designed for the production of plastic car feet carpet mats. It is an automatic machine with a range of 500-2400mm in mat width. It is equipped with single-screw design, and its raw materials are PVC powder and additives.

This PVC coil mat making machine is highly efficient and precise, with excellent performance. It has high production capacity and can produce up to 1250 kg per hour. It is also equipped with an advanced safety system to ensure the safety of operators. It is also easy to operate and maintain. It is an ideal choice for producing plastic car feet carpet mats.

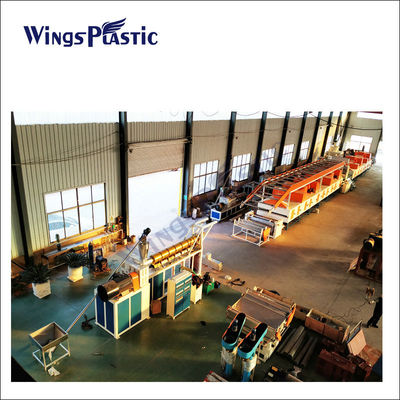

Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 0

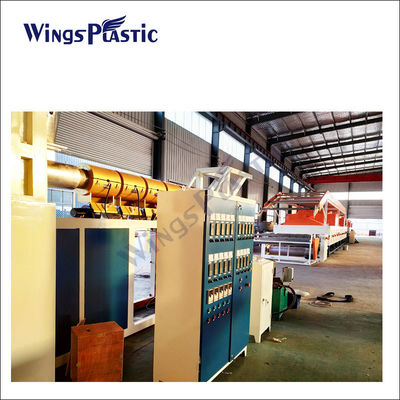

Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 1

High Quality Extruder Machine

Mainly two colors will use 100/30 extruder, single color will use 120/30 extruder.
The extruder using the special designed single screw making the product foaming well.Screw material: High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940. The extruder fixed with filter
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 2

Extrusion die

It is made by specially import moulds materials, 15 years experience design for materials flow.
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 3

Forming water tank

The water tank is strong and durable, and the special design forming machine has no vibration when working, which is more conducive to coil forming

Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 4

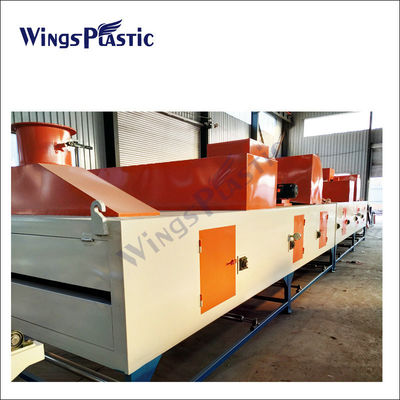

First heating oven

The oven is the most important part for the production, it controls the finished product quality.
Qingdao Wings Plastic Technology Co.,Ltd created a high quality Insulation and air distribution system to ensure there is good energy conservation and product forming quality.
The oven length could be 6m, 8m,10m according different product.
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 5

Glue unit

It evenly flows the glue into the silk ring material and presses out the excess glue
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 6

Second oven

The oven is the most important part for the production, it controls the finished product quality.
Qingdao Wings Plastic Technology Co.,Ltd created a high quality Insulation and air distribution system to ensure there is good energy conservation and product forming quality.
The oven length could be 6m, 8m,10m according different product.
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 7

Electric control unit

Inverter brand:ABB/Delta
Button Brand: CHNT/Scheider
Contactor: Siemens
Swicth BrandL CHNT/Scheider
Temperature Controller: Omron/RKC
PLC Brand: Siemens
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 8

Glue unit

Included foaming tank, vacuum system

Features:

  • Product Name: Plastic Mat Making Machine
  • Control System: PLC Control
  • Raw Material: PVC Powder
  • Material: PVC Powder And Additive
  • Screw Design: Single-screw
  • Motor: Siemens
  • Application: Plastic Car Feet Carpet Mat , PVC Coil Loop Mat , PVC Calendering Mat


Technical Parameters:

Parameter Value
Motor Siemens
Control System PLC Control
Mat Width 500-2400mm
Model No SJ100/30
Material PVC Powder And Additive
Main Motor Power 420kw
Raw Material PVC Powder
Key Selling Points Automatic
Carpet Thickness 10-19mm
Screw Design Single-screw
Product Name PVC Double Color Coil Mat Production Equipment, PVC Coil Loop Mat Extruder Machine, PVC Coil Mat Making Machine


Applications:

Wings Plastic SJ90/33 PVC coil loop mat extruder machine is a cutting-edge plastic car feet carpet mat production line designed to produce mats with 10-19mm thickness. It has a Siemens motor and a single-screw design with a mat width of 500-2400mm. It is made of high quality PVC powder, providing a great product with a long operational life. The machine is made with a robust and durable design to ensure its reliability and performance. It is easy to install and operate, making it a great choice for businesses who want to create high-quality mats.

The Wings Plastic SJ90/33 PVC coil mat making machine is perfect for creating carpets for both indoor and outdoor use. With its adjustable screw design, it can create mats with different thicknesses and widths. It is suitable for a wide range of applications, including manufacturing mats for cars, buses, and trucks. The machine is able to produce mats with a high degree of accuracy and consistency. It also provides excellent performance and is capable of producing large quantities of mats in a short period of time.

The Wings Plastic SJ90/33 PVC coil loop mat extruder machine is an efficient and cost-effective solution for businesses looking to create high-quality mats. It is easy to install and operate, making it an ideal choice for businesses who want to create mats quickly and cost-effectively. With its high-quality materials and reliable performance, it is sure to provide a long-lasting and reliable product.



Support and Services:

Technical Support and Service of Plastic Mat Making Machine

We offer professional technical support and services for the Plastic Mat Making Machine. We have a team of experienced engineers ready to provide you with tailored technical solutions to help you get the most out of your machine. We also offer on-site maintenance and repair services to ensure that your machine is running optimally and safely.

In addition, our customer service representatives are available 24/7 to answer any questions you have about our products and services. We strive to provide our customers with the best possible experience when it comes to purchasing and using our products.



Packing and Shipping:

Packaging and Shipping of Plastic Mat Making Machine

  • The machine will be shipped in one or more wooden crates.
  • The crates will be wrapped with plastic sheets to protect the machine from any exterior damage.
  • All the necessary documents will be attached with the shipment.
  • The shipment will be insured to cover any loss or damage during the transit.


FAQ:

Q1: What is the Brand Name of the Plastic Mat Making Machine?

A1: The Brand Name of the Plastic Mat Making Machine is Wings Plastic.

Q2: What is the Model Number of the Plastic Mat Making Machine?

A2: The Model Number of the Plastic Mat Making Machine is SJ90/33.

Q3: Where is the Plastic Mat Making Machine manufactured?

A3: The Plastic Mat Making Machine is manufactured in Qingdao, China.

Q4: What are the specifications of the Plastic Mat Making Machine?

A4: The specifications of the Plastic Mat Making Machine are available upon request.

Q5: Does the Plastic Mat Making Machine come with a warranty?
Siemens Motor Plastic Mat Making Machine For PVC Powder And Additive Production 9

A5: Yes, the Plastic Mat Making Machine comes with a warranty.
