20-110mm Plastic HDPE PE PP Pipe Extrusion Production Line Making Machine

The PE Pipe Extrusion Line is a production system used for manufacturing polyethylene pipes. Here are the principles, production process, equipment involved, and its characteristic advantages:
1. Production Principle:
The PE Pipe Extrusion Line follows the principle of extrusion, where molten polyethylene material is forced through a die to form a continuous pipe shape. The extruder melts and homogenizes the raw material, and the molten polymer is then pushed through the extrusion die, which determines the final shape and size of the pipe.
2. Production Process:
1) Material Feeding: The prepared raw material is fed into the extruder hopper.

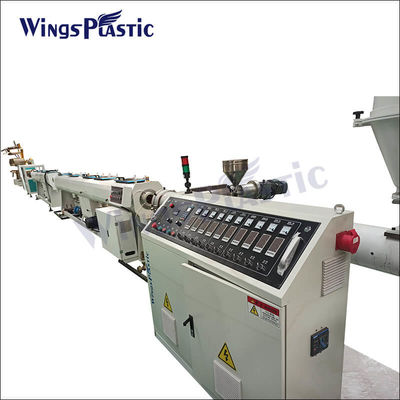

2) Extrusion: The extruder melts and homogenizes the material while pushing it through the extrusion die, forming a continuous pipe.

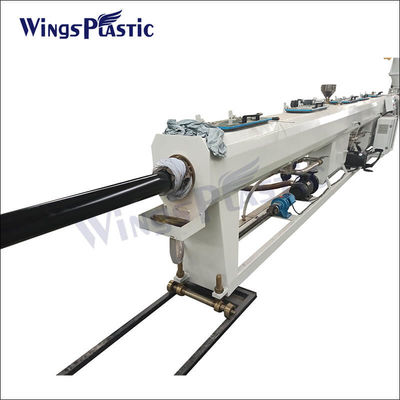

3) Cooling and Sizing: The extruded pipe is cooled using a water bath or air cooling system, and it is then sized using a sizing sleeve or vacuum calibration system.

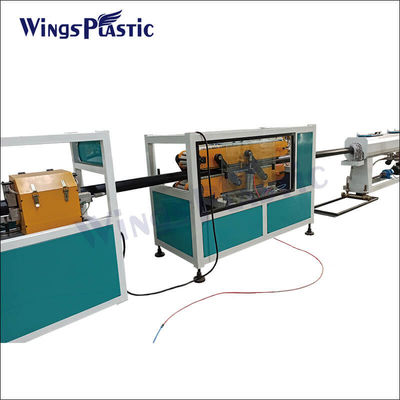

4) Haul-off and Cutting: The pipe is pulled by a haul-off unit at a controlled speed, and it is cut into desired lengths by a cutting device.
3. Characteristic Advantages:
1) Versatility: The PE Pipe Extrusion Line can produce pipes of various sizes and thicknesses to meet different application requirements.
2) High Efficiency: It enables continuous production with high output rates, ensuring efficient manufacturing processes.
3) Excellent Physical Properties: The extruded PE pipes exhibit excellent resistance to corrosion, chemicals, and wear, making them suitable for various industries.
4) Long Service Life: PE pipes have a long lifespan, providing reliable and durable performance over time.
5) Cost-effective: The extrusion process allows for cost-effective production of PE pipes compared to other pipe manufacturing methods.
