Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine

Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine
Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine

Large Image :  Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine

Product Details:
Place of Origin: CHINA
Brand Name: WINGS
Certification: CE ISO
Model Number: SJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15000-25000 per set
Packaging Details: woode case and container
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20 sets per month

Conical PVC Pipe Twin Screw Extruder Equipment / Double Screw Extrusion Machine

Description
Plastic Processed: PVC Screw Design: Single-screw
Screw Material: 38CrMoAlA Screw L/D Ratio: 33:1
Screw Speed (rpm): 90 Rpm Voltage: Customized
Inverter: Delta Brand Contactor: Siemens Contactor
High Light:

PVC Pipe Twin Screw Extruder

,

Conical Pipe Twin Screw Extruder

,

90rpm Double Screw Extrusion Machine

PVC Pipe Conical Twin Screw Extruder/Plastic Pipe Extruder Equipment/Double Screw Extrusion Machine

Production Process:

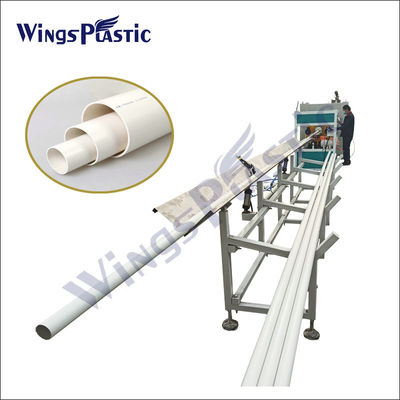

The PVC Pipe Extruder Machine follows a well-defined production process to manufacture high-quality PVC pipes. The process involves the following steps:

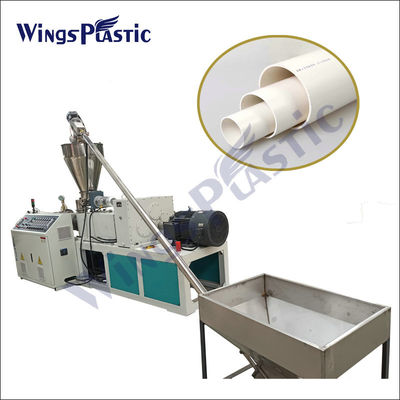

1. Material Feeding: The prepared PVC compound is fed into the extruder machine through a hopper. The machine's feeding system ensures a consistent and controlled supply of materials for the extrusion process.
2. Extrusion: Inside the extruder machine, the PVC compound is heated and melted to a controlled temperature. The molten PVC is then forced through a specially designed extrusion die, shaping it into a continuous pipe with the desired diameter and wall thickness.

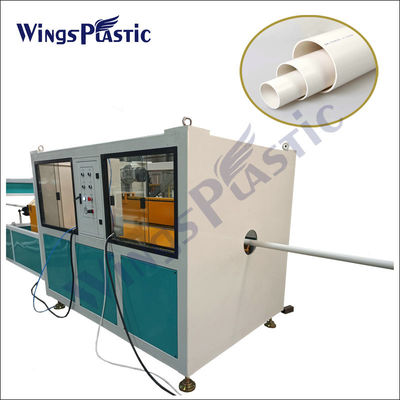

3. Cooling and Sizing: As the extruded pipe exits the die, it enters a cooling system, which rapidly cools and solidifies the molten PVC. The pipe is then passed through a sizing tool or calibration sleeve to ensure accurate dimensions and shape.
4. Haul-off and Cutting: Once the pipe is properly sized, it is gripped by a haul-off unit, which pulls it at a controlled speed. The pipe is then cut into desired lengths by a cutting unit. The cut pipes are ready for further processing or packaging.
5. Quality Control: Throughout the production process, quality control measures are implemented to ensure the pipes meet the required standards. This includes monitoring parameters such as wall thickness, diameter, and overall quality of the produced pipes.



Advantages of PVC Pipe Extruder Machine:
1. High Productivity: The extruder machine offers high production speeds and outputs, allowing manufacturers to meet market demands efficiently.
2. Consistent Quality: The machine's precise control over extrusion parameters ensures consistent pipe dimensions, wall thickness, and overall quality, resulting in reliable and durable PVC pipes.
3. Versatility: The machine is compatible with different PVC formulations, such as rigid PVC (RPVC) and chlorinated polyvinyl chloride (CPVC), enabling the production of pipes with various specifications and applications.
4. Energy Efficiency: The PVC pipe extruder machine incorporates energy-saving technologies, reducing energy consumption and operational costs while promoting sustainability.
5. User-Friendly Operation: The machine's intuitive control panel and user-friendly interface make it easy for operators to set and adjust parameters, enhancing productivity and minimizing errors.
6. Durability and Reliability: The machine's robust construction and high-quality components ensure long-term reliability, minimizing downtime and maintenance costs.
The PVC Pipe Extruder Machine offers significant advantages in terms of productivity, quality, versatility, and user-friendliness. It is a reliable solution for manufacturers seeking efficient and high-quality production of PVC pipes.
