PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

Large Image :  PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ50/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

Description
Material: PP PE PVC Cooling Method: Air/Water
Extrusion Output: 10-30m/min Power: 380V/50Hz
Vacuum Pump: 3kw Control System: PLC
Screw Speed: 0-74rpm Dimension: Customized
High Light:

PE Corrugated Pipe Equipment

,

74 rpm Corrugated Pipe Equipment

,

3kw Corrugated Pipe Extruder Machine

And Durable PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm

Product Description:

PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 0

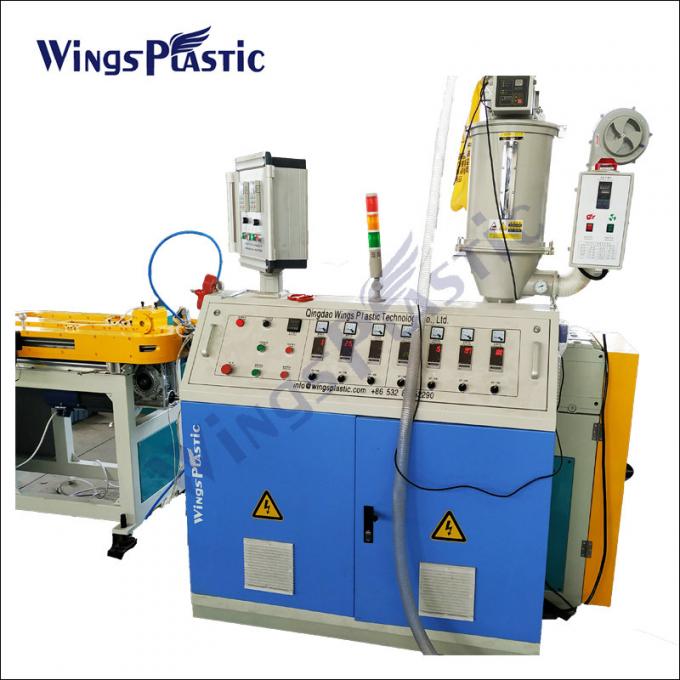

Single Screw Extruder

High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE
extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 1

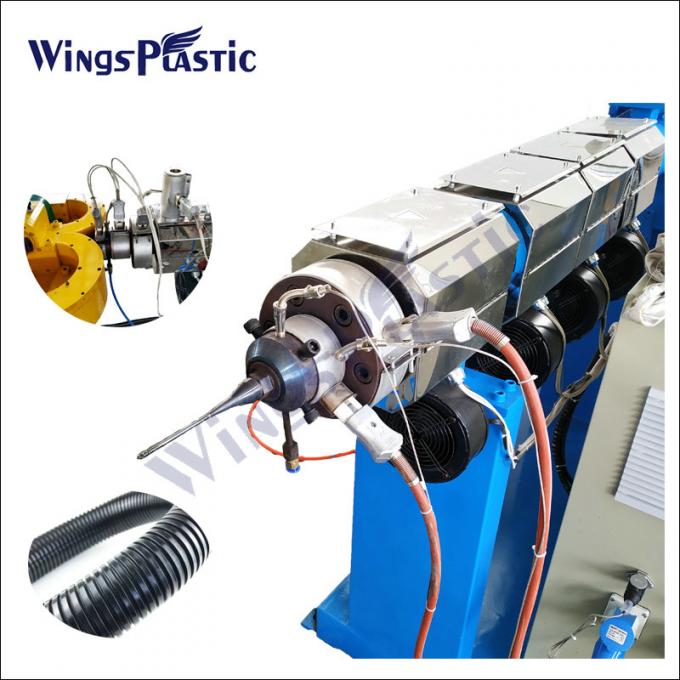

Extrusion Die

Material :40Cr , the surface of die is chromeplated, anti-corrosive
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 2

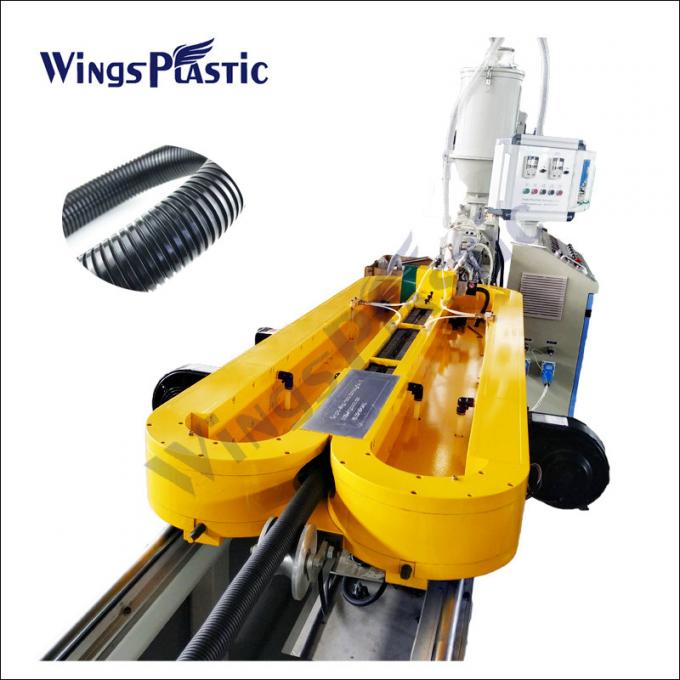

High Speed Forming Machine

Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working
speed.It is added water cooling and fan cooling two system.
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 3

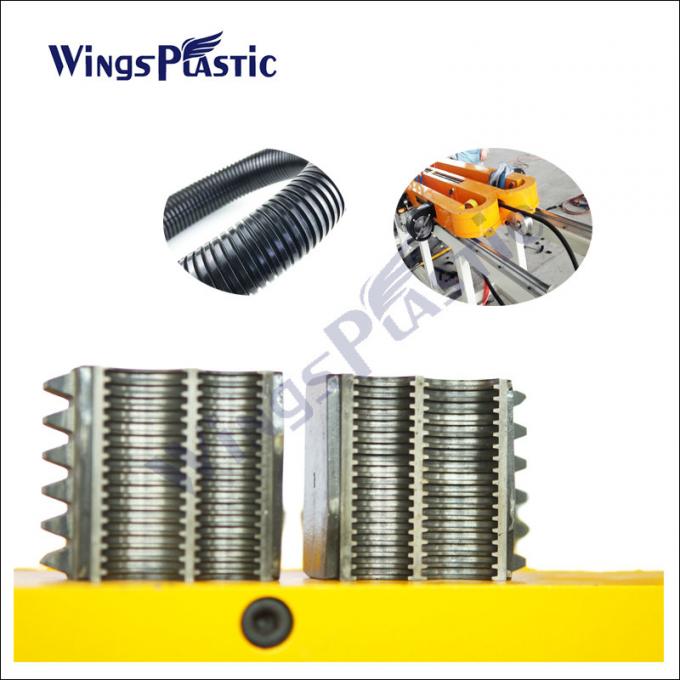

Moulds Block

Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 4

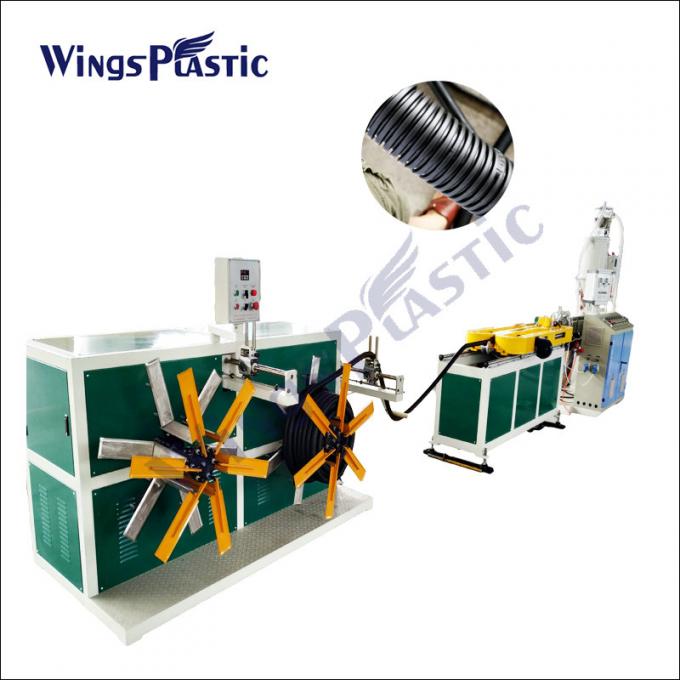

Automatic coiler

No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 5

Control Box

Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control. Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability


Features:

  • Product Name: Plastic Pipe Extruder Machine
  • Control System: PLC
  • Screw Speed: 0-74rpm
  • Dimension: Customized
  • Extrusion Output: 10-30m/min
  • Screw L/D Ratio: 33:1
  • PE corrugated pipe equipment
  • PVC single wall corrugated pipe extruder
  • Plastic shisha hookah hose making machine
PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 6

Technical Parameters:

Specification Value
Product Name Single Wall Corrugated Pipe Extruder Machine
Cooling Method Air/Water
Dimension Customized
Control System PLC
Warranty 1 Year
Heating Power 6kw
Power 380V/50Hz
Extrusion Output 10-30m/min
Vacuum Pump 3kw
Material PP PE PVC


Applications:

Plastic Pipe Extruder Machine - Wings Plastic

Brand Name: Wings Plastic

Model Number: SJ50/33

Place of Origin: Qingdao China

Screw Speed: 0-74rpm

Product Name: Single Wall Corrugated Pipe Extruder Machine

Warranty: 1 Year

Material: PP PE PVC

Vacuum Pump: 3kw

The Plastic Pipe Extruder Machine from Wings Plastic is a top-of-the-line production line for producing PP single wall corrugated conduit pipes, PVC single wall corrugated pipes, and PE corrugated pipes. It is designed to meet the high demands of the plastic pipe manufacturing industry and to help your business thrive.

Application

The Plastic Pipe Extruder Machine is widely used in various industries for the production of single wall corrugated pipes. Some of the common applications include:

  • Electrical Conduit Pipes
  • Telecommunication Cable Conduit Pipes
  • Water Drainage Pipes
  • Sewage Pipes
  • Ventilation Pipes
  • Gas Pipes
Product Features

Our Plastic Pipe Extruder Machine is equipped with state-of-the-art technology and advanced features to ensure high-quality and efficient production. Some of its key features include:

  • High-quality screw and barrel for smooth and stable extrusion
  • Adjustable screw speed for different types of materials
  • Easy to operate control panel with touchscreen interface
  • Heavy-duty vacuum pump for precise pipe shaping
  • Durable and corrosion-resistant parts for long-lasting performance
Scene Description

Imagine a large factory producing plastic pipes of different sizes and shapes. In one corner of the factory, you will find the Plastic Pipe Extruder Machine from Wings Plastic, working tirelessly to produce high-quality single wall corrugated pipes. The machine is surrounded by workers who are monitoring the production process and making sure everything runs smoothly. The machine's control panel is constantly displaying important data and allowing the workers to make necessary adjustments. The vacuum pump is working in perfect harmony with the machine, shaping the pipes with precision. The end result is a steady stream of perfectly shaped and durable plastic pipes, ready to be used in various applications.

Why Choose Wings Plastic?

There are many reasons why Wings Plastic is the go-to brand for plastic pipe extruder machines. Some of the key factors that make us stand out in the market include:

  • High-quality materials used in production for superior durability
  • Advanced technology and features for efficient production
  • Customization options to meet specific production requirements
  • Competitive prices for maximum value
  • Excellent customer service and after-sales support
  • 1-year warranty for peace of mind

Invest in a Wings Plastic Pipe Extruder Machine and take your plastic pipe manufacturing business to the next level. Contact us today to learn more!



Customization:

Customized Service for Wings Plastic Pipe Extruder Machine

Brand Name: Wings Plastic

Model Number: SJ50/33

Place of Origin: Qingdao, China

Power: 380V/50Hz

Vacuum Pump: 3kw

Cooling Method: Air/Water

Screw L/D Ratio: 33:1

Warranty: 1 Year

At Wings Plastic, we offer customized services for our Plastic Pipe Extruder Machine. Our machine is specifically designed for the production of PVC, PP, and other single wall corrugated pipes. With our advanced technology and years of experience, we guarantee high-quality and efficient production for your business.

Our Plastic Pipe Extruder Machine, model number SJ50/33, is manufactured in our facility in Qingdao, China. It is designed to operate with a power supply of 380V/50Hz, making it suitable for use in various countries. The machine is equipped with a 3kw vacuum pump, ensuring proper suction and efficient production.

The cooling method for our machine is air/water, which provides effective cooling for the extruded pipes. This ensures that the pipes are of high quality and have a smooth surface finish. Our machine also has a screw L/D ratio of 33:1, ensuring precise and uniform extrusion of the pipes.

At Wings Plastic, we understand the importance of customer satisfaction and offer a one-year warranty for our Plastic Pipe Extruder Machine. We also provide excellent after-sales service to ensure that your machine operates at its best for years to come.

Choose Wings Plastic for all your PVC single wall corrugated pipe extruder needs. Our Plastic single wall corrugated pipe machine and PP single wall corrugated conduit pipe production line are top-of-the-line and designed to meet your specific requirements. Contact us today for more information and to get a quote for your customized Plastic Pipe Extruder Machine.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Wings Plastic.
  • Q: What is the model number of this product?
  • A: The model number of this product is SJ50/33.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Qingdao, China.
  • Q: What are the main features of this product?
  • A: This product is equipped with advanced extrusion technology, high precision control system, and durable components.
  • Q: Is this product suitable for producing all types of plastic pipes?
  • A: Yes, this product is suitable for producing various types of plastic pipes such as PVC, PE, and PP.
  • PE Corrugated Pipe Equipment With Water Cooling Method And Screw Speed 0-74rpm 7
