High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine
High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine
High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

Large Image :  High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: Wings Plastic
Model Number: SJ50/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets

High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

Description
Screw Speed: 0-74rpm Extrusion Output: 10-30m/min
Dimension: Customized Vacuum Pump: 3kw
Control System: PLC Material: PP PE PVC
Product Name: Single Wall Corrugated Pipe Extruder Machine Warranty: 1 Year
High Light:

Corrugated Flexible Extruder Machine

,

Shisha Hookah Hose Making Machine

,

3kw Corrugated Flexible Extruder Machine

High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine

Product Description:

  • 30m/minute high speed shisha hose hookah corrugated pipe making machine

    PP PVC PE Shisha Corrugated Pipe Production Line Advantage.
    Whole line consists of Single Screw Extruder, Mould, Forming Machine(With Corrugated Forming Pairs), Auto-Tension Controller, and Winder Unit. It adopts gear transmission module and cooling water circulation for cooling, which production speed can be up to 10-15m/min, and the pipe with characteristics of one-step forming, uniform shape of the ripples, consistent joint, smooth inside and outside pipe wall.


    Structure design of special screw and mould is reasonable, replacement of mould is convenient and reliable, and the problem of easy wear of screw barrel and difficult forming of material is solved. The production line has fast and stable speed, easy to operate.



    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 0

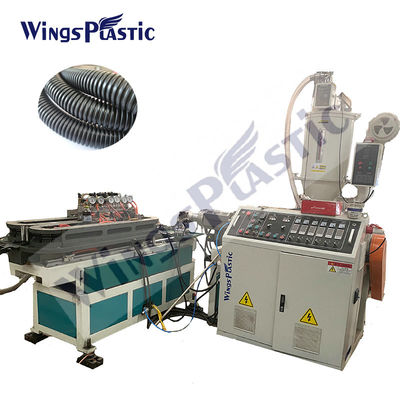

    Single Screw Extruder

    High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion.
    Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740, Rigidity of barel: >940, the surface of screw is chromeplated Feeding bush with water cooling system
    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 1

    Extrusion Die

    Material :40Cr , the surface of die is chromeplated, anti-corrosive
    core bar and mouth mould
    new design,the core bar and mouth mould fit together,when change size,no like the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.
    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 2

    High Speed Forming Machine

    Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working speed.It is added water cooling and fan cooling two system. wear resistance and fatigue strength,and has good heat resistance and corrosion resistance, hardenability is not high,used for making nitriding parts with high wear resistance, high faigue strength,considerable strength and high diamensional precision after treatment .the pipe inner side more smooth,increase the production speed and product quality.
    Forming machine adjustment:manual control left and right,Electric control up and down.

    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 3

    Moulds Block

    Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
    It could be designed into one hole or two hole according customer request.
    We could print customers logo into moulds according request.
    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 4

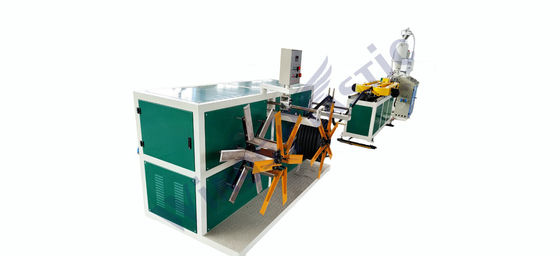

    Automatic coiler

    No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.
    High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 5

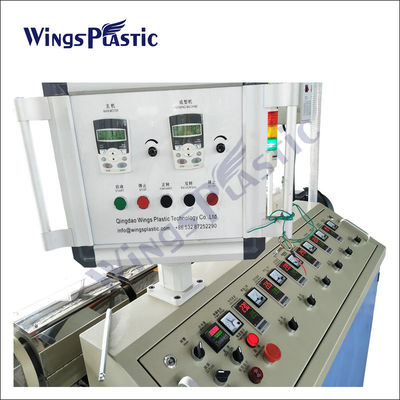

    Control Box

    Temperature controller: OMRON
    Contactor and replay: SIEMENS
    Inverter: ABB or Delta Character
    High precise temperature control. Configurable alarm strategy.
    All of the production data can be displayed electrical panel.
    Very easy operation.
    Running stability

Features:

  • Product Name: Single Wall Corrugated Pipe Extruder Machine
  • PP single wall corrugated conduit pipe production line
  • Plastic shisha hookah hose making machine
  • Plastic single wall corrugated pipe machine
  • Screw L/D Ratio: 33:1
  • Screw Speed: 0-74rpm
  • Power: 380V/50Hz
  • Heating Power: 6kw
High Speed Corrugated Flexible Extruder Machine Shisha Hookah Hose Making Machine 6

Technical Parameters:

Dimension Customized
Vacuum Pump 3kw
Extrusion Output 10-30m/min
Control System PLC
Power 380V/50Hz
Heating Power 6kw
Cooling Method Air/Water
Screw L/D Ratio 33:1
Warranty 1 Year
Material PP PE PVC
Product Name PVC single wall corrugated pipe extruder
Product Description This extruder machine is specially designed for producing PVC single wall corrugated pipes. It can also be used for making plastic shisha hookah hoses and PE corrugated pipes. The dimension can be customized to meet different production needs.


Applications:

Plastic Pipe Extruder Machine - Wings Plastic



The Plastic Pipe Extruder Machine, also known as the Single Wall Corrugated Pipe Extruder Machine, is a highly efficient and durable equipment designed by Wings Plastic. It is specifically designed for the production of plastic shisha hookah hoses, PE corrugated pipes, and PP single wall corrugated conduit pipes.

With a brand name of Wings Plastic, this machine is manufactured in Qingdao, China, ensuring high quality and precision. Its dimensions can be customized according to the specific needs of the customers. The screw L/D ratio of 33:1 ensures a smooth and efficient extrusion process, while the extrusion output of 10-30m/min allows for high production capacity.

The Plastic Pipe Extruder Machine is suitable for various materials, making it a versatile and cost-effective solution for different production needs. Its cooling method can be either air or water, depending on the preferences of the users.

Application Scenarios:

  • Plastic shisha hookah hose making
  • PE corrugated pipe production
  • PP single wall corrugated conduit pipe manufacturing

Features:

  • High efficiency
  • Durable
  • Stable performance
  • Easy to operate
  • Cost-effective
  • Suitable for various materials
  • Wide application
  • High production capacity
  • Environmentally friendly
  • Low noise
  • Low energy consumption



Customization:



Brand Name: Wings Plastic
Model Number: SJ50/33
Place of Origin: Qingdao China
Product Name: Single Wall Corrugated Pipe Extruder Machine

At Wings Plastic, we offer customizable services for our high-quality PE corrugated pipe equipment. Our PVC single wall corrugated pipe extruder, model SJ50/33, is designed and manufactured in Qingdao, China.

With over 10 years of experience in the industry, our Single Wall Corrugated Pipe Extruder Machine is the perfect solution for efficient and reliable production of plastic single wall corrugated pipes. As a trusted brand, Wings Plastic ensures that our extruder machine meets the highest standards of quality and performance.

Warranty: 1 Year

We stand by the quality of our products and offer a 1-year warranty for our Single Wall Corrugated Pipe Extruder Machine. This gives our customers peace of mind and confidence in their investment.

Heating Power: 6kw

Our extruder machine is equipped with a powerful 6kw heating system to ensure efficient and consistent heating of the plastic material during the extrusion process.

Extrusion Output: 10-30m/min

The extrusion output of our machine can reach up to 30 meters per minute, making it a highly productive and efficient tool for producing single wall corrugated pipes.

Control System: PLC

We have incorporated a PLC control system in our Single Wall Corrugated Pipe Extruder Machine, which allows for easy operation and precise control over the extrusion process. This ensures consistent quality and reduces the chances of errors.

Choose Wings Plastic for all your plastic single wall corrugated pipe production needs. Our customizable services and high-quality extruder machine will help you meet your production goals with ease and efficiency.



FAQ:



  • Q: What is the brand name of this product?

    A: The brand name of this product is Wings Plastic.

  • Q: What is the model number of this product?

    A: The model number of this product is SJ50/33.

  • Q: Where is this product manufactured?

    A: This product is manufactured in Qingdao, China.

  • Q: What is the maximum pipe diameter this machine can produce?

    A: This machine can produce pipes with a maximum diameter of 50mm.

  • Q: Is this machine suitable for producing different types of plastic pipes?

    A: Yes, this machine is suitable for producing different types of plastic pipes such as PVC, PE, and PP.
