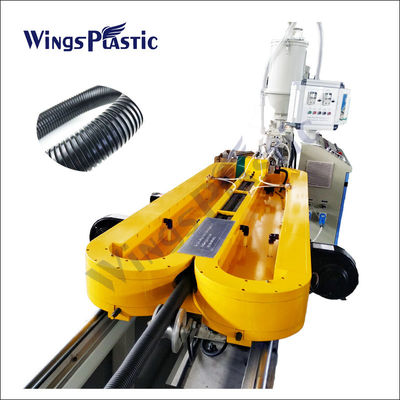

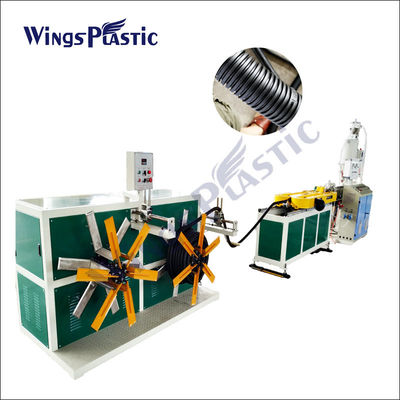

PP PE PVC Corrugated Pipe Machine Production Line Bellows Water Electric Conduit Pipe Machine

Application
1. This corrugated pipe extrusion line is used to produce PVC, PP, EVA and PE single wall corrugated pipe.
2. The forming mould can produce pipe continually, keep inside and outside smoothly, and corrugation equably.
3.Product is used for (1) wire and cable conduit protection pipe, washer drainpipe, dust collector pipe, vent pipe etc.Φ4-6.9mm small corrugated pipe used for car wire, it supplies a gap in China.

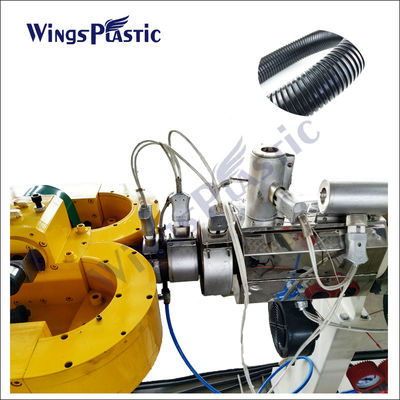

65mmSingle Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system



Specification:

Our Advantage:

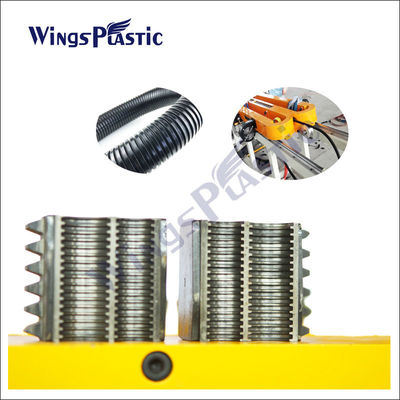

1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould,replace the jet printer.
3.Feeder with spring vibrating screen,The vibrating screen on the feeding machine can filter out the impurities in the raw
material, the pipe will be more smooth and beautiful.
