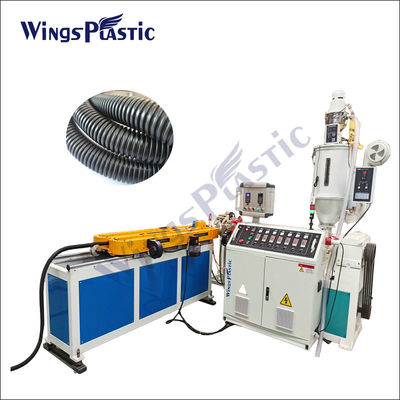

Single Wall Corrugated Pipe Extruder Machine Corrugated Plastic Pipe Machine

plastic single wall corrugated pipe production line meticulously developed by our company, through the gear drive module,water cooling in the water trough of the forming machine,the products are air-cooled,so that production of the bellows molding speed,uniform corrugated shape, smooth inside and outside the wall.

More Details
Extruder machine
Our extruder uses a PLC control system, which can intuitively see the operating parameters of each part and operate the machine better.
Using high quality screw, uniform heating and plasticizing

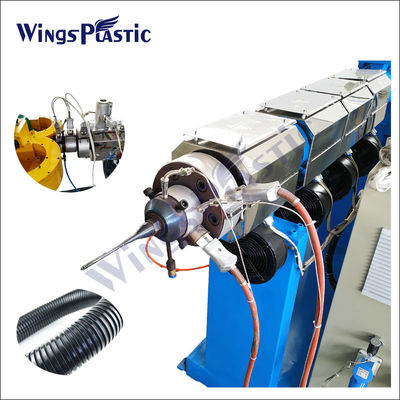

Die head
Die and mandrel design are together, not separate.
When changing the size, we only need to change the whole, and there is no need to clean the waste inside.

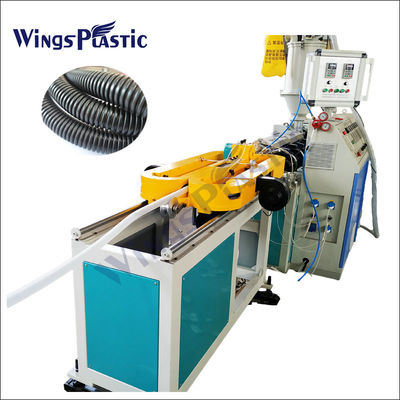

Pipe forming machine
High speed forming machine with large water cooling plate,make the pipes cool faster and form more beautiful shapes
the mould with double chamber design, when change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours
Double station winder
Automatically adjust the speed for uniform winding, pneumatic unwinding



Specification:

Our Advantage:

1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould,replace the jet printer.
3.Feeder with spring vibrating screen,The vibrating screen on the feeding machine can filter out the impurities in the raw
material, the pipe will be more smooth and beautiful.
