Plastic PE Pipe Extruder Machine HDPE Plastic Pipe Extrusion Line 160mm

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Plastic PE Pipe Extruder Machine HDPE Plastic Pipe Extrusion Line 160mm

Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm
Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm

Large Image :  Plastic PE Pipe Extruder Machine HDPE Plastic Pipe Extrusion Line 160mm

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Plastic PE Pipe Extruder Machine HDPE Plastic Pipe Extrusion Line 160mm

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 350kg/h Or Customized Pipe Diameters: 75-160mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

Plastic PE Pipe Extruder Machine

,

Plastic Pipe Extrusion Line 160mm

,

HDPE Plastic Pipe Extrusion Line

Plastic HDPE Tube Production Line / PE Pipe Extruder Machine Supplied In China





The HDPE Tube Production Applications:



Tube applications : water drinking / drainage pipes

Screw type: single screw

Capacity: 100-500kg/h

Speed: 1-10m/min



The production line adopts HDPE special using high performance extruder,screw is designed with barrier unit and mixing structure, and the barrel use new style grooves. All of these offer good plastification and mixing effect.

Special design of basket die head for HDPE tube,mould offer lower melting temperature, good mixing,lower pressure of cavity ,and stable production .

The whole line adpots PLC performance control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the pipe mark line.









Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm 0

Plastic HDPE Tube Production Line / Extrusion Machine Supplied In China Machinery Informations:



model screw diameter L/D driving power output
SJ-45/30 45 mm 30:1 22/30kw 60/80kg/h
SJ-65/33 65 mm 33:1 45/75/90kw 150/210/250kg/h
SJ-75/33 75 mm 33:1 110/132kw 350/450kg/h
SJ-90/33 90 mm 33:1 185/220kw 550/700kg/h
SJ-105/33 105 mm 33:1 220/285kw 650/800kg/h
SJ-120/33 120 mm 33:1 315kw 950kg/h
SJ-150/33 150 mm 33:1 450kw 1350kg/h

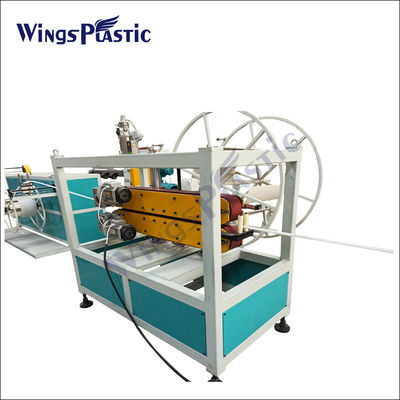

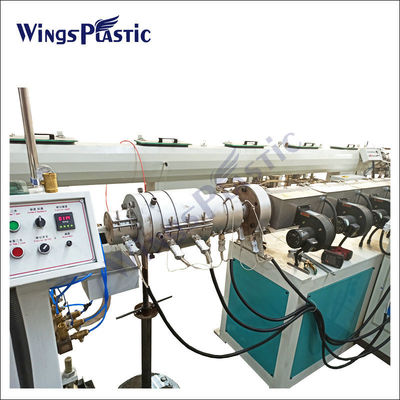

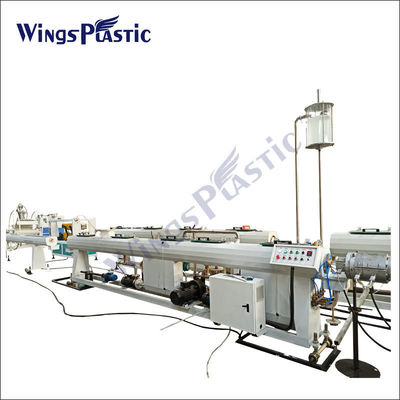

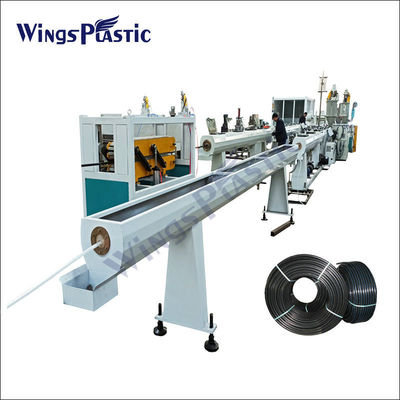

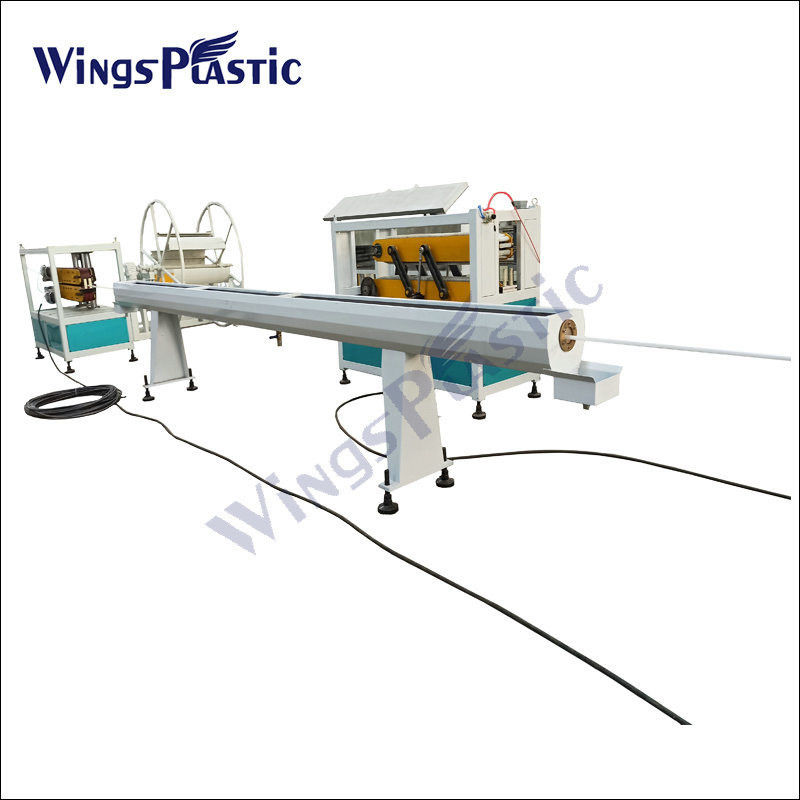

Plastic HDPE Tube Production Line / Extrusion Machinery Pictures:



Plastic PE Pipe Extruder Machine  HDPE Plastic Pipe Extrusion Line 160mm 1
