High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H

High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H
High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H

Large Image :  High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

Electric Pvc Pipe Making Machine 150kg/H

,

High Speed HDPE Pipe Manufacturing Plant

,

HDPE Pipe Manufacturing Plant 150kg/h

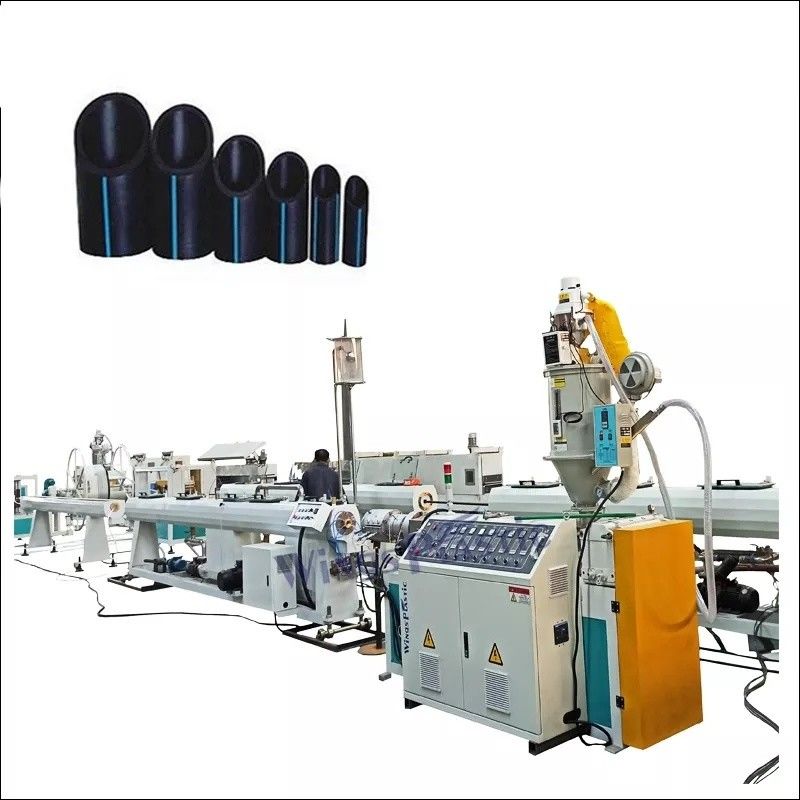

HDPE Plastic Pipe Plant , PE Pipe Extruder Machine High Speed Extrusion Machine Made In China

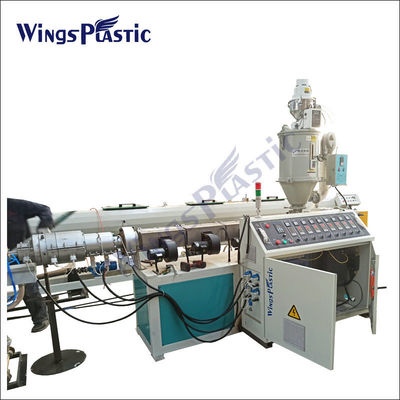

A. Single Screw Extruder
1.high extrusion capacity,low melt temperature.
2.special screw design insure the high-efficientcy and high yield.
3.bevel gear design of high hardness and low noise brings dependable performance with long time service.

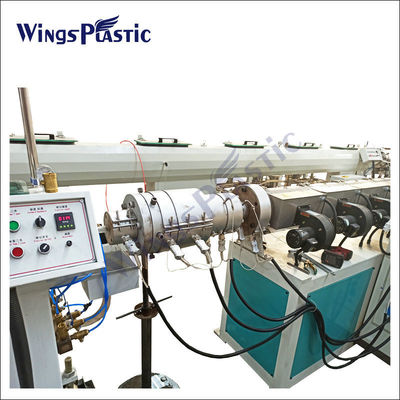

B. Die and Head
1.spiral type or skep type die head flow distribution
2.the best design of the low temperature causing smooth pipe inter and outside surface.
3.equal heating to die-head make sure good quality.
4.high flexibility is applicable to different pipe size.

C. Vacuum water tank and Cooling tank
1.the tank body made by stainless steel.
2.the water pump of high power and equal equipped spraying nozzle to efficient spraying cooling.
3.filtering net avoid impurity from water to block spraying nozzle.
4.two stage cooling stage with spraying nozzle to stead of marinating unit to optimize cooling methods.
5.provide special length, unit cooling tank according to requirement.

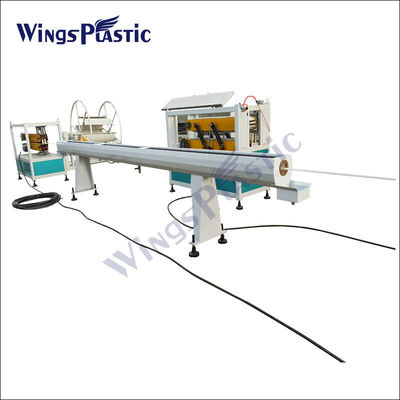

D. Haul-off machine
1.double, trinal, quadruple,senary, octuple, pedrails according to different pipe size.
2.frequency speed adjusting match the extruding pipe speed in synchronously

3.by proportion valve and cylinder regulate contact pressure to avoid pipe flat or elliptical.
4.by center motor drives all pedrails to attain highly synchronous result
5.The automatic pipe thickness and length of pipe is adjustable.

E. Cutting machine
1.Equip automatic working function controlled via PLC.
2.Following cut and complete synchronous
3.low noise and high protection design
4.Equip dust inhale motor.
Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min



High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H 0





High Speed HDPE Pipe Manufacturing Plant Plastic Water Pipe Making Machine 150kg/H 1
