LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine

LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine
LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine

Large Image :  LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

LLDPE PE Pipe Extruder Machine

,

PE Pipe Extruder Machine 45mm

,

LLDPE Plastic Water Pipe Making Machine

Plastic Water Pipe Making Machine , PE Pipe Extrusion Machine





Qingdao Wings Plastic Technology Co., LTD
Water supply pipe line, PE HDPE water pipe line, HDPE gas pipe line, PE pipe production equipment, PE pipe production machine, PE pipe tube machine.
With special single screw extruder, the pipe produced by a new design of shunt type compound head, which is convenient adjustment, the characteristics of discharging evenly, sizing set adopt unique slitting process and ring cooling water , to ensure the forming precision of the tube

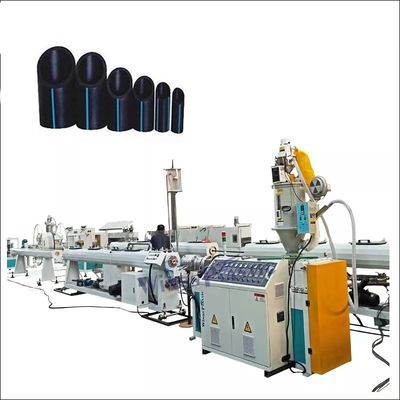

PE pipe production line mainly componets: single screw extruder with automatic vacuum feeding machine, extruder of marked line, copper head ,vacuum tanks, spray water tank, haul-off machine, cutting machine, stacking frame.


PE pipe production line is mainly used for production of polyethylene (PE), high density polyethylene (HDPE) pipes, it is mainly used for water supply pipe, gas pipe, and therefore the PE pipe equipment is usually called HDPE gas pipe, water pipe production line.






LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine 0

High quantity, low melting temperature.
Special screw design, ensure high efficiency and high yield.

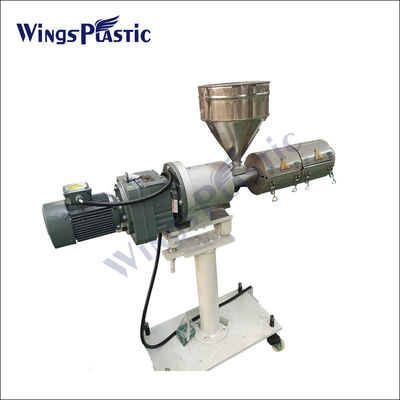

Small single screw extruder used in co-extrusion marked line out
Standard series from 10 mm - 630 mm.The spiral distribution or blue type shunt body.
The design of the low melting temperature.The internal stress of pipe is small, internal and external surface is smooth.

Characteristic:

Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min



LDPE HDPE Pipe Extruder Machine Plastic Water Pipe Making Machine 1
