Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine

Certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
China Qingdao Wings Plastic Technology Co.,Ltd certification
I'm Online Chat Now

Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine

Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine
Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine

Large Image :  Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

HDPE Pipe Production Machine 220kg/h

,

HDPE Pipe Production Machine 380V

,

PE Pvc Pipe Extruder Machine 220kg/h

China HDPE Pipe Production Equipment / PE Pipe Extruder Making Machine Factory



PE pipe extrusion machine, PE pipe production machine, PE pipe extrusion line, PE pipe production equipment.
Qingdao Wings Plastic Technology Co., LTD., located in Qingdao jiaozhou, specializing in the production of various types of plastic pipe production line, PE pipe production line is one of the main products of our company.
Relying on strong technical strength, plastic tubing equipment products of the company has covered all over the country, widely praise.








Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine 0

PE pipe extrusion production line mainly include: automatic feeding machine, single screw extruder, die head, vacuum sizing tanks, spray cooling water tank, tractor, cutting machine, winding machine or stacking machine.
PE pipe production process steps as follows:
1, mixing and drying
PE resin and color masterbatch are dryed and mixed by automatic machine.
2, Plasticizing extrusion
The raw material from the hopper will be put into the extruder, then transmission, compression, melting, homogenization, composed of solid particles gradually become high elastic state, then gradually get into a viscous fluid (viscous flow state) from high elastic state, and continuous extrusion.
3, mould molding
At the appropriate temperature, extrusion materials from the extruder through filter plate changed from rotary motion to linear motion into the mold.After screw tap in the forming period of fusion are tubular billet, finally die out from core.
4, cooling system

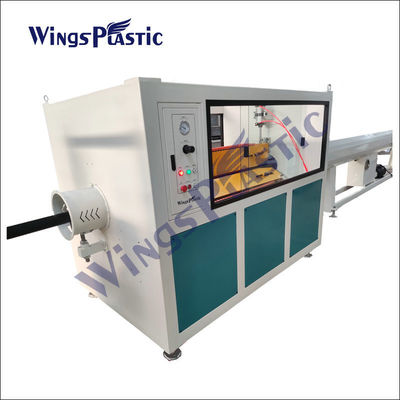

The pipe billet will be in the vacuum sizing system after the mold heating and pressure system, sizing by vacuum and cooling by spray cooling.
5, cutting

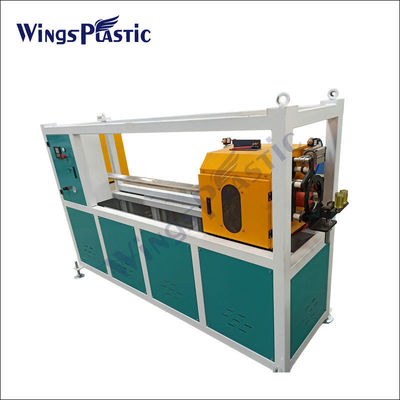

The planetary cutting machine complete the pipe fixed length cutting, under the control of the meter wheel after the haul-off system.
6, stacked packing
The tube will be pushed to the overturning platform afther cutting, finally inspection and packing.
Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min

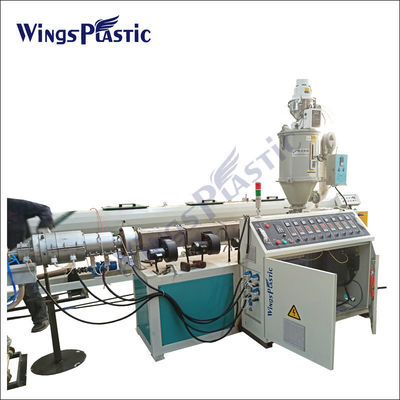

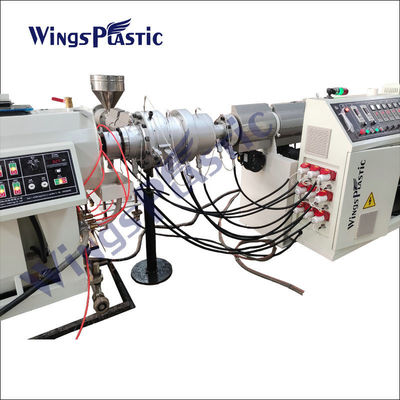

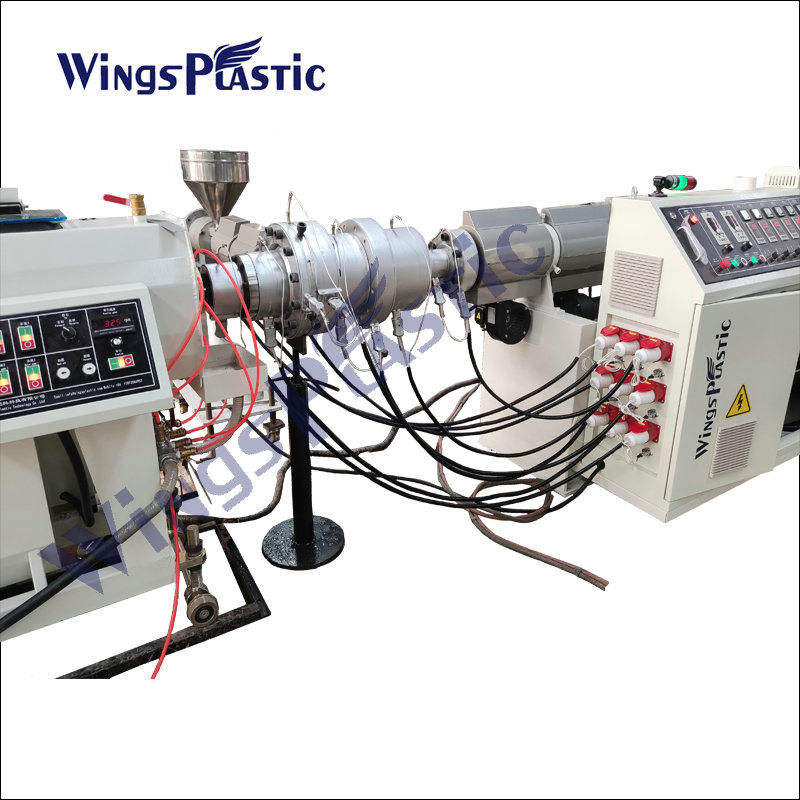

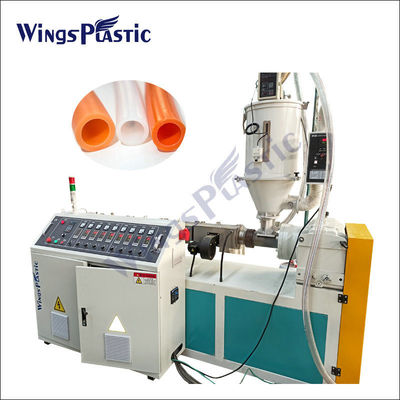

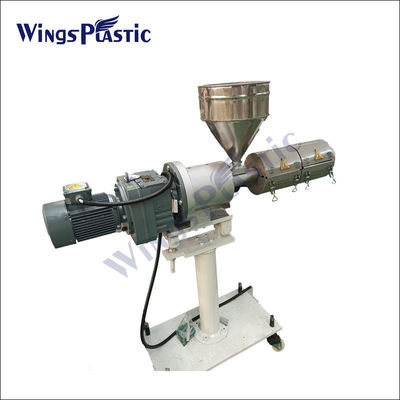

The HDPE pipe making machine / production equipment pictures:



Plastic HDPE Pipe Production Machine PE PPR Pipe Extruder Machine 1
