PPR Polyethylene Pipe Extrusion Line HDPE Pipe Machine PE Pipe Extruder Machine

Large Image : PPR Polyethylene Pipe Extrusion Line HDPE Pipe Machine PE Pipe Extruder Machine

Product Details:

Place of Origin:	Qingdao China
Brand Name:	WingsPlastic
Certification:	CE
Model Number:	SJ65/33

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden Box or Film Packing
Delivery Time:	45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 sets

Contact Now

PPR Polyethylene Pipe Extrusion Line HDPE Pipe Machine PE Pipe Extruder Machine

Description

Condition:	New	Powder Condition:	380V/50HZ Or Customized
Capacity:	150-220kg/h Or Customized	Pipe Diameters:	20-110mm Or Customized
Suitable Materials:	HDPE PPR LDPE LLDPE
High Light:	PPR Polyethylene Pipe Extrusion Line , Polyethylene Pipe Extrusion Line 50HZ , HDPE Pipe Machine 50HZ

Polyethylene Pipe Extrusion Line , HDPE Pipe Machine , PE Pipe Extruder Machine

HDPE pipe extruder, PE pipe production equipment, PE pipe machine.
Qingdao Wings Plastic Technology Co., LTD., is specialized in the supply of HDPE pipes production line , high extrusion speed, stable and reliable quality, welcome to inquire us by email or call.

The Production line features: our company design the isometric wave shape of the screw, forced cooling reverse spiral groove feeding section, low noise reducer of hard-toothed surface with high speed, high yield, energy consumption is small. shunt type composite screw head, convenient adjustment, uniform discharge, good pipe quality.Using slab sizing set, stainless steel tank, accurate sizing and high efficiency cooling speed.Adopt two claws or cactus tractors, frequency control of motor speed.Planetary cutting and section is flat and level and complex head,co-extrusion line.

Product quality: the quality of the product is the foundation of enterprise sustainable development .Excellence quality for most, the development innovation is the responsibility of the tianxintai plastic machinery.
Delivery time: by optimizing the factory management, we improve the production process, shorten the production cycle for the customer.
Cost control: through the improvement of the enterprise internal management, we reduce the production cost as much as possible, and ensure that machinery products from tianxintai plastic machinery have sufficient competitiveness in the market.By the advantage of cost control, so we will do our best to produce more cost-effective products.

PPR Polyethylene Pipe Extrusion Line HDPE Pipe Machine PE Pipe Extruder Machine 0

Characteristic:

Pipe range	16-63mm	20-110mm	75-160mm	90-250mm	110-315mm	160-450mm	315-630mm	500-800mm
Extruder	¢45mm	¢60mm	¢75mm	¢75mm	¢90mm	¢90mm	¢120mm	¢150mm
Extruder power	AC30kw	DC75kw	DC110kw	DC110kw	DC160kw	DC160kw	DC280kw	DC335kw
Extrusion capacity	60-100kg	100-150kg	250-300kg	250-300kg	350-400kg	350-400kg	650-700kg	850-900kg
Max. production speed	10m/min	6m/min	6m/min	6m/min	3 m/min	1.2m/min	0.9m/min	0.7m/min

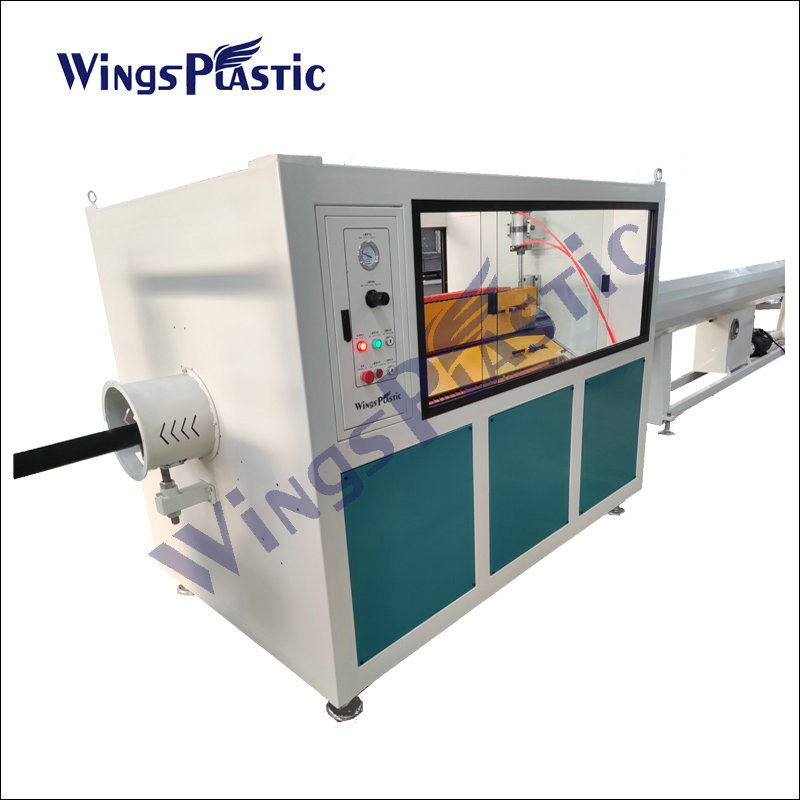

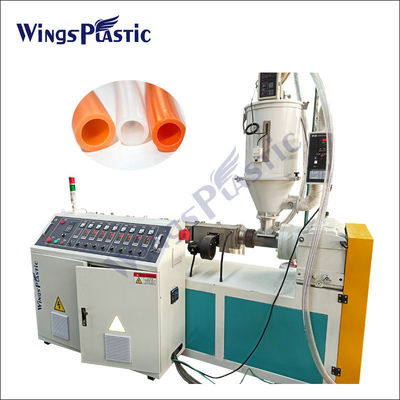

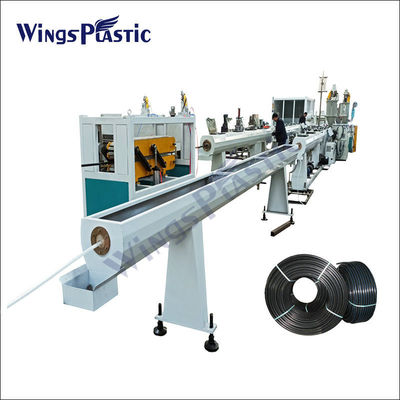

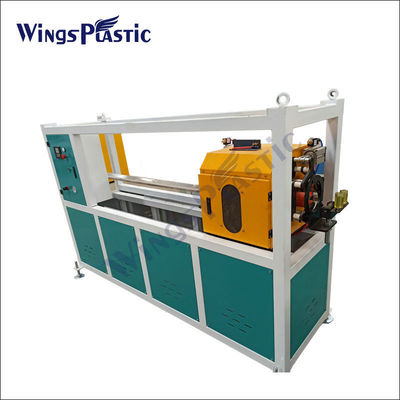

Our machinery and factory pictures:

PPR Polyethylene Pipe Extrusion Line HDPE Pipe Machine PE Pipe Extruder Machine 1
