90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine

90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine
90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine
90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine

Large Image :  90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine

Product Details:
Place of Origin: Qingdao China
Brand Name: WingsPlastic
Certification: CE
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden Box or Film Packing
Delivery Time: 45 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets

90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine

Description
Condition: New Powder Condition: 380V/50HZ Or Customized
Capacity: 150-220kg/h Or Customized Pipe Diameters: 20-110mm Or Customized
Suitable Materials: HDPE PPR LDPE LLDPE
High Light:

33 HDPE Pipe Extruder

,

HDPE Pipe Extruder 110mm

,

315mm Pe Corrugated Pipe Machine

90 / 33 HDPE Pipe Extruder / HDPE Pipe Manufacturing Machines 110mm-315mm/Plastic Pipe Extrusion Line



This 90 / 33 HDPE pipe extrusion machine / production line (110mm-315mm) is mainly used to produce HDPE pipe for water / gas supply, and sewage and drain pipe, also undergroud pipes,with a diameter from 110mm-315mm.



90 / 33 HDPE pipe extruder / extrusion machine / production line (110mm-315mm) introduction:

1. Total installed power:238Kw, 380 V three phases+N+G, 50HZ

Load factor: 55%-80% (Actual power is 150kw)

2. Cooling circulars water: 10 m3/h

3. Compress air:0. 8m3/min

4. Workhouse: 40000×2500×2900mm(length, width and high of line)

5. Products dimension: 110mm,125mm,140mm,160mm,200mm,225mm,250mm,280mm,315mm

6. Raw material :HDPE 80/100

7. Pipe working Pressure:PN6 & PN10

8. Max Output:540 kgs per hour





Pipe range 16-63mm 20-110mm 75-160mm 90-250mm 110-315mm 160-450mm 315-630mm 500-800mm
Extruder ¢45mm ¢60mm ¢75mm ¢75mm ¢90mm ¢90mm ¢120mm ¢150mm
Extruder power AC30kw DC75kw DC110kw DC110kw DC160kw DC160kw DC280kw DC335kw
Extrusion capacity 60-100kg 100-150kg 250-300kg 250-300kg 350-400kg 350-400kg 650-700kg 850-900kg
Max. production speed 10m/min 6m/min 6m/min 6m/min 3 m/min 1.2m/min 0.9m/min 0.7m/min











90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 0

90 / 33 HDPE pipe extrusion machine / production line (110mm-315mm) machinery specification:

All the 90 / 33 HDPE pipe extruder / extrusion machine / production line (110mm-315mm):

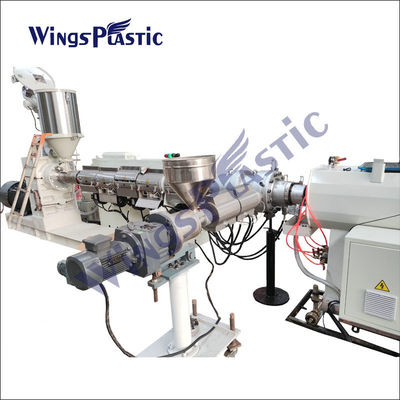

1. Automatic Feeder and drying hopper

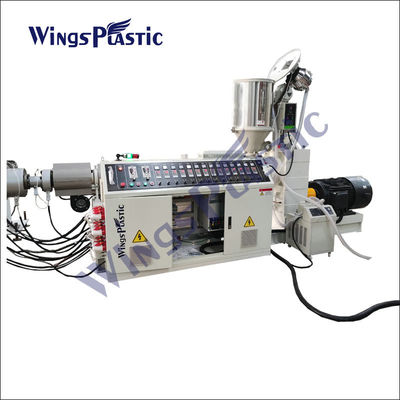

2.Single Screw Extruder 90/33

3. PIPE molds (SDR11,SDR17)

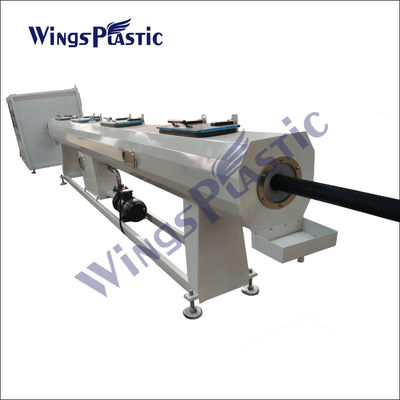

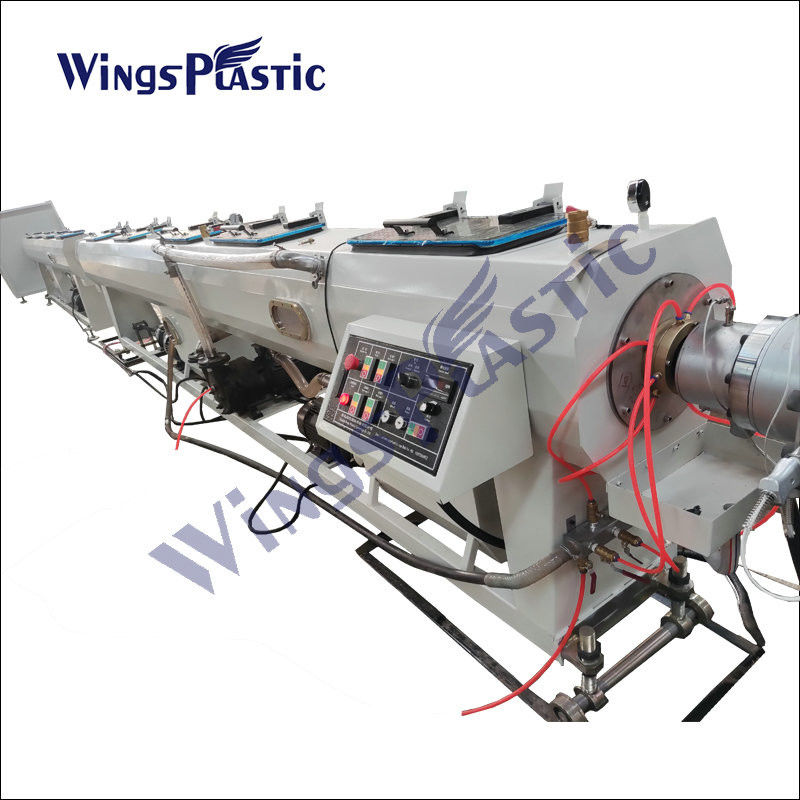

4.Vacuum sizing tank

5. spray cooling tank

6.Heating printer with all letter blocks

7. Belt haul-off unit

8.Non scrap Cutting unit:

9.Stack unit

10.Electric Control Cabinet

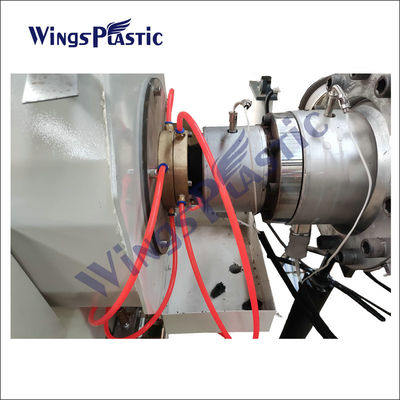

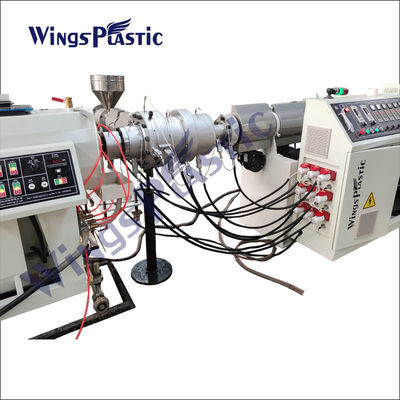

HDPE Pipe Making machine/extrusion line Pictures:



China HDPE Pipe makeing machine and facility pictures:

90 / 33 HDPE Pipe Extruder 110mm 315mm Pe Water Pipe Machine 1
